> Roth / TORO > Aufsitzmäher > Traktor > 246 HE > 309/72101 > 3900001 > Motor (TORO Power Plus)

Ersatzteillisten für Toro Roth / TORO Motor (TORO Power Plus)

Ersatzteilliste 1

Ersatzteilliste 2

Ersatzteilliste 3

Ersatzteilliste 4

Ersatzteilliste 5

Pos.	Bezeichnung	Ersatzteilnummer
1	Cylinder Assembly	78-3410
2	Bearing-Cylinder	92-0501
3	Seal-Oil	78-3430
6	Washer	78-3460
7	Gasket-Cylinder Head	92-0504
8	Breather Assembly	92-0505
9	Gasket-Breather	78-3670
10	Screw	92-0506
11	Tube-Breather	78-3510
12	Gasket-Crankcase Cover	78-4230
13	Screw	78-3530
15	Plug-Oil Drain	78-3540
16	Crankshaft Note: To Replace Crankshaft Triming Gear Key Order No. 92-0564 & 92-0565 Washer	78-3550
18	Cover-Crankcase	78-3570
20	Seal-Oil	78-3580
22	Screw	78-3590
24	Key-Flywheel	78-3610
25	Piston Ass y (Std.)	78-3620
	Piston Ass y (.010 O.S.)	92-0507
	Piston Ass y (.020 O.S.)	92-0508
	Piston Ass y (.030 O.S.) Piston Ring Sets:	92-0509
26	Ring-Piston (Std.)	78-3630
	Ring-Piston (.010 O.S.)	92-0510
	Ring-Piston (.020 O.S.)	92-0511
	Ring-Piston (.030 O.S.)	92-0512
27	Lock-Piston Pin	78-3640
28	Pin Ass y (Std.)	78-3650
29	Rod Assembly	78-3660
32	Gasket-Breather	78-3670
33	Valve-Exhaust	78-3680
34	Valve-Intake	78-3690
35	Spring-Valve	78-3700
40	Retainer-Valve Spring	78-3710
42	Retainer-Valve	78-3720
45	Tappet-Valve	78-3730
46	Gear-Cam	78-3740
84	Plug-Pipe	78-3830
87	Seal-Governor Shaft	78-3840
116	ORing (Oil Pump)	78-3910
116	O Ring (Crankcase Cover)	78-3920
166	Stud-Rocker Arm	78-4060
166	Stud-Oil Filter Adapter	78-4070
167	Washer	78-4080
171	Nut	78-4090
189	Washer-Lock	78-4120
192	Screw-Valve Adjust	78-4130
209	Spring-Governor	78-3900
209	Spring-Governor Idle	78-4160
227	Reglerhebel	92-0513
243	Gasket-Crankcase Cover	78-4230
265	Clamp-Casing	77-8280
277	Washer	78-4280
337	Plug-Spark	NN10820
351	Screw	78-4420
523	Dipstick	78-4560
524	Seal-Filler Tube	78-4670
552	Bushing-Shaft	78-4630
552	Bushing-Shaft	78-4640
562	Bolt	78-4650
572	Baffle Breather	78-4660
592	Gasket-Breather	78-3670
614	Pin-Cotter	78-4710
616	Fork-Governor	78-4740
634	Washer	78-4750
635	Elbow-Spark Plug	78-4790
718	Dowel-Crankcase	78-4810
741	Gear-Timing	92-0514
819	Screw	78-4910
823	Screw-Mounting	78-4920
842	O Ring	78-4930
864	Liner-Exhaust Port	78-4960
868	Seal-Valve Guide	78-4980
869	Seal-Intake Valve	78-4990
870	Seat-Exhaust Valve	78-5000
871	Guide-Valve	78-5010
978	Gasket-Oil Filter Adapter	78-5160
982	Screw	78-5170
1022	Gasket-Valve Cover	78-5240
1024	Oil Pump Assembly	78-5270
1025	Slider-Governor	78-5280
1026	Rod-Push Note 92-0522 Push Rod User on Exhaust Side Only	78-5290
1027	Motorenoelfilter	78-5300
1028	Adapter-Oil Filter	78-5310
1029	Arm-Rocker	78-5320
1030	Shaft-Rocker Arm	78-4460
1031	Support-Rocker Arm	78-4190

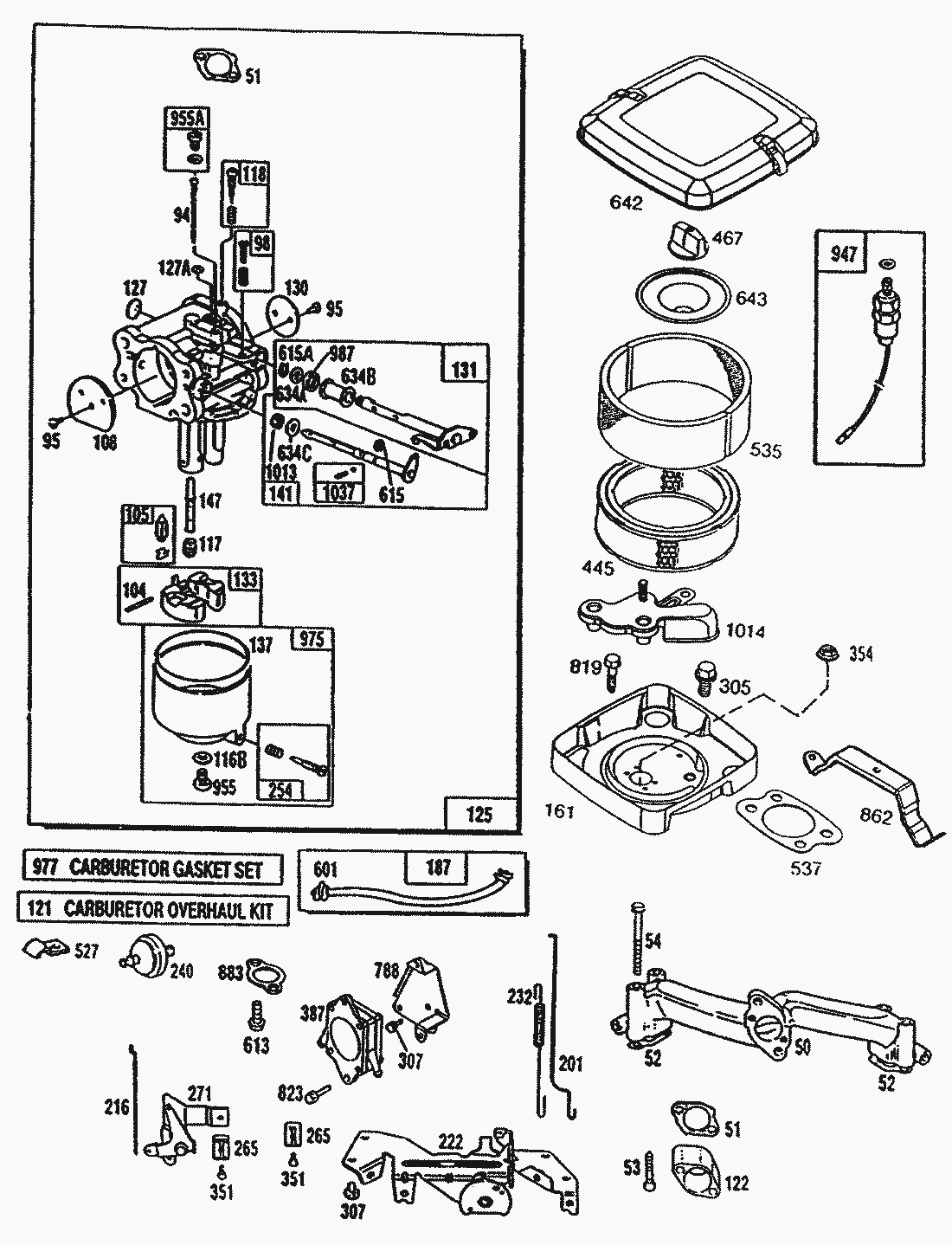

Pos.	Bezeichnung	Ersatzteilnummer
50	Manifold-Intake	78-3750
51	Gasket-Carburetor	78-3770
52	Gasket-Intake Manifold	78-3780
53	Screw	78-3790
94	Duese	92-0515
95	Screw	78-3860
98	Screw-Throttle	92-0516
104	Pin-Float Hinge	92-0517
105	Valve Fuel Inlet	92-0518
117
	Duese	92-0562
118	Valve Assembly Carburetor	78-3950
121	Kit-Carburetor Overhaul	92-0519
122	Spacer-Carburetor	78-3970
125	Carburetor Assembly	92-0520
127	Wrench-Plug	78-3990
127	Wrench-Plug	78-4000
130	Valve-Throttle	92-0521
131	Shaft	78-4020
137	Gasket-Float Bowl	42-0560
133	Float Assembly	78-4030
141	Shaft-Choke	78-4040
147	Duesenstock	92-0523
161	Base-Air Cleaner	92-0524
201	Link-Governor	78-4140
216	Link-Choke	78-4170
222	Bracket-Governor	78-4180
232	Spring-Governor Link	78-4210
240	BENZINVORFILTER	78-4220
254	Drain-Carburetor Bowl	78-4250
265	Clamp-Casing	78-8280
271	Bracket-Choke Control	78-4260
305	Screw	78-4300
307	Screw	78-4310
354	Nut	92-0526
387	Benzinpumpe	78-4490
445	Luftfilterpatrone	92-0527
467	Knob-Air Cleaner	92-0528
527	Clamp-Fuel Pipe	92-0529
535	Vorfilter	92-0530
537	Gasket-Air Cleaner	92-0531
601	Clamp-Hose	92-0532
613	Screw	78-4700
615	Retainer-Choke Shaft	78-4720
615	Retainer-Throttle Shaft	78-4730
634	Collar-Throttle	78-4760
634	Collar-Throttle	78-4770
634	Collar-Choke	78-4780
642	Cover Assembly Air Cleaner	92-0533
643	Plate-Air Filter	92-0534
788	Bracket-Fuel Pump	92-0535
862	Bracket-Air Cleaner	92-0536
883	Gasket-Exhaust Manifold	92-0537
947	Solenoid	92-0538
955	Screw	78-5070
955	Plug And Seal Carburetor	78-5080
975	Bowl Assembly	78-5140
977	Set Carburetor Gasket	78-3940
987	Seal-Throttle Shaft	78-5180
1013	Seal-Choke Shaft	78-5220
1014	Deflector-Air Cleaner	92-0539
1037	Ball-Choke Locator	78-5150

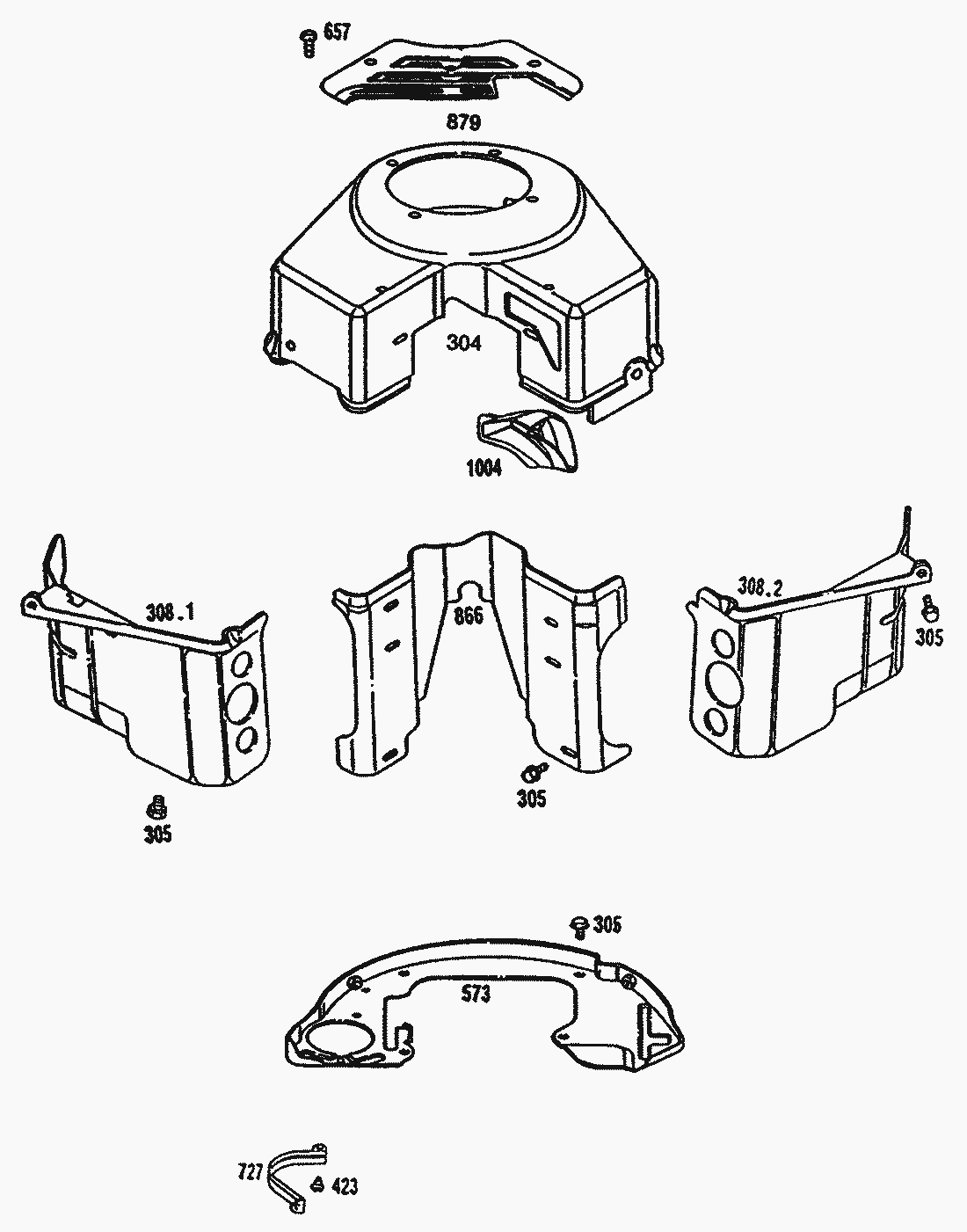

Pos.	Bezeichnung	Ersatzteilnummer
304	Housing-Blower	92-0553
423	Screw	78-4500
573	Seal-Filler Tube	78-4670
657	Screw-Incl. w/Engine	78-4800
727	Shield-Starter	78-4850
866	Valley Cover-Air Guide	92-0556
879	Cover-Carburetor	92-0557
1004	Tube-Air Inlet	92-0558

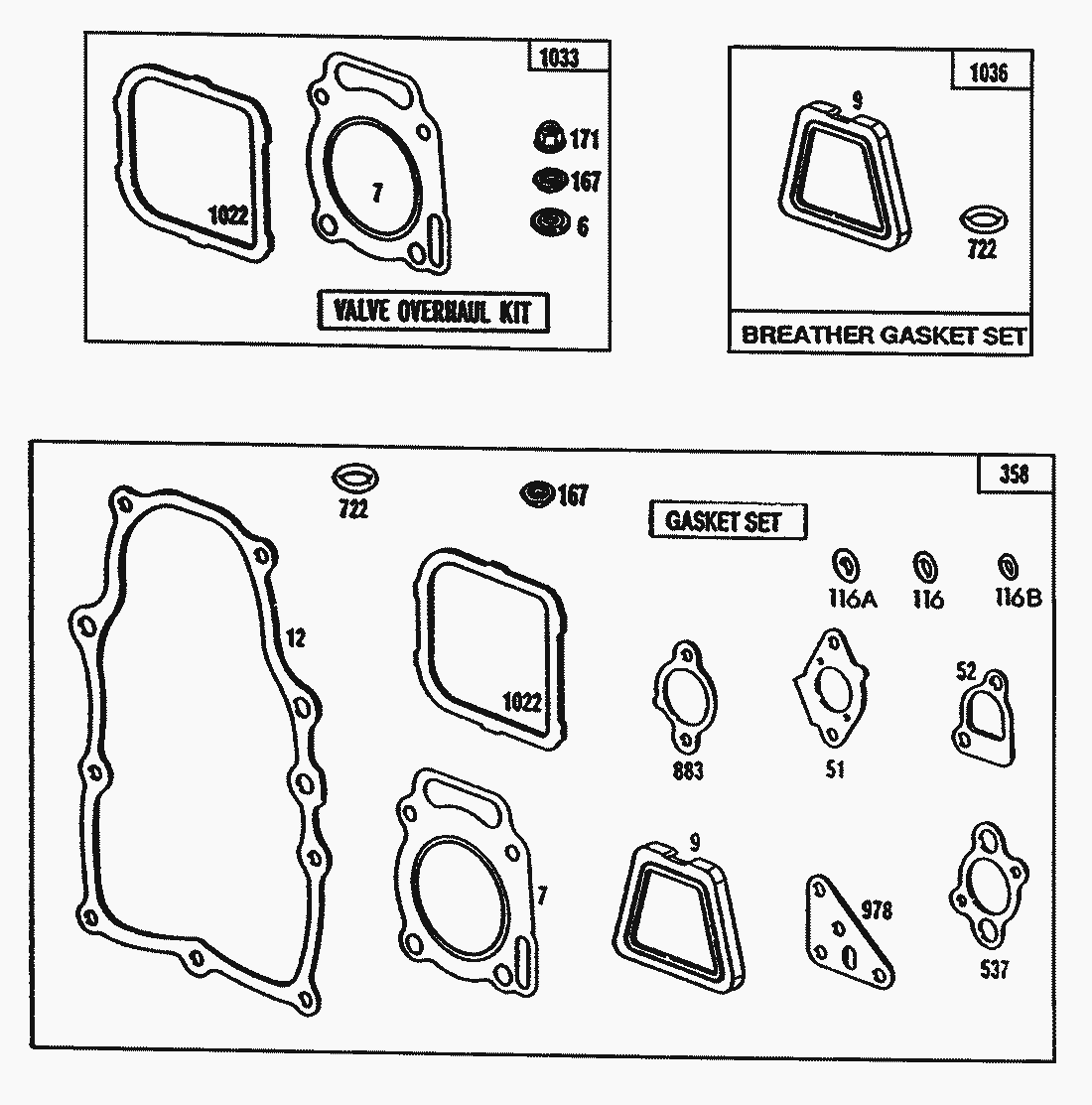

Pos.	Bezeichnung	Ersatzteilnummer
116
358	Set-Gasket	92-0540
722	Seal-Breather Screw	92-0541
883	Gasket Exhaust Manifold	78-5040
1033	Kit-Valve Overhaul	92-0542
1036	Set-Breather Gasket	92-0543

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer
	Cover-Air Guide	92-0555
	Head-	92-0503
	Cover-Valve Note: 78-5260 Cover-Valve Used On	78-5250
	Hose-Fuel 11 187 115 5960A020 1 72101 Hose-Fuel 11	92-0525
	Cover-Air Guide	92-0554
	Head-	92-0502
	Hose-Fuel 23 116 5960A020 1 72101 Hose-Fuel 23	92-0559

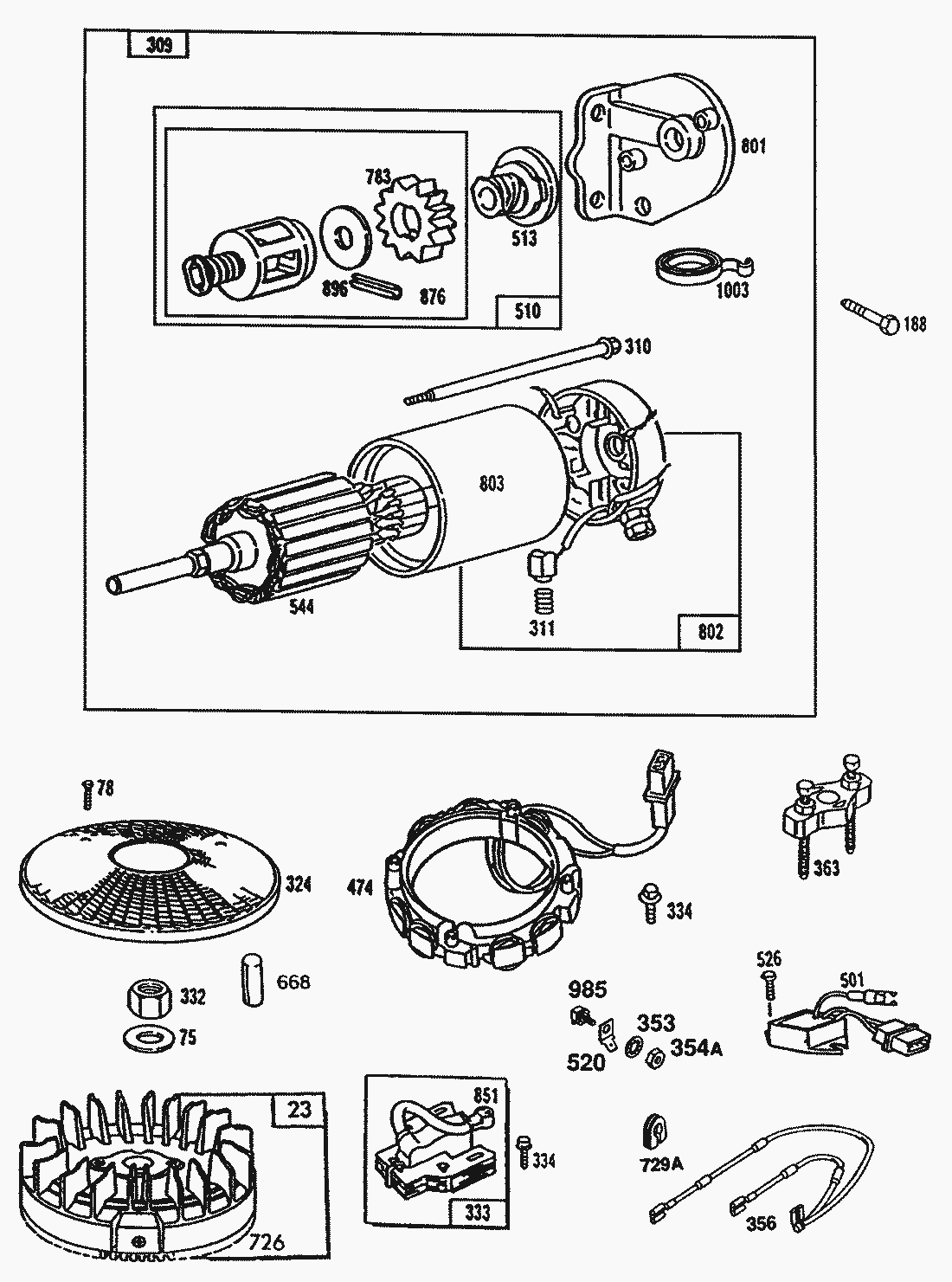

Pos.	Bezeichnung	Ersatzteilnummer
23	Flywheel-Magneto	78-3600
75	Washer	78-3810
78	Screw	78-3820
188	Screw	78-4110
309	Motor-Starting	78-4340
310	Bolt	78-4350
311	Brush Assembly	78-4360
324	Screen-Rotating	78-4370
332	Nut	78-4380
333	Armature-Magneto	92-0544
334	Screw	78-4400
353	Washer-Lock	92-0545
354	Nut	92-0546
356	Wire Assembly	92-0547
363	Puller-Flywheel	78-4470
474	Stator-Alternator	78-4510
501	Regler	78-4520
510	Drive Assembly	78-4530
513	Clutch Assembly	78-4540
520	Terminal-Spade	92-0548
526	Screw	78-4590
544	Armature Assembly	78-4620
668	Spacer	78-4830
726	Gear-Flywheel Ring	92-0549
729	Grommet	92-0550
783	Gear	78-4860
801	Cap Assembly Drive End	92-0551
802	Cap Assembly Commutator	78-4890
803	Housing Assembly	78-4900
851	Stecker	77-8430
876	Gear Kit	78-5020
896	Pin-Roll	78-5050
985	Insulator	92-0552
1003	Brush Spring Set	78-5200
