> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 521 > 622/38035 > 6000001 > Motor Tecumseh (Modell H35-45598R)

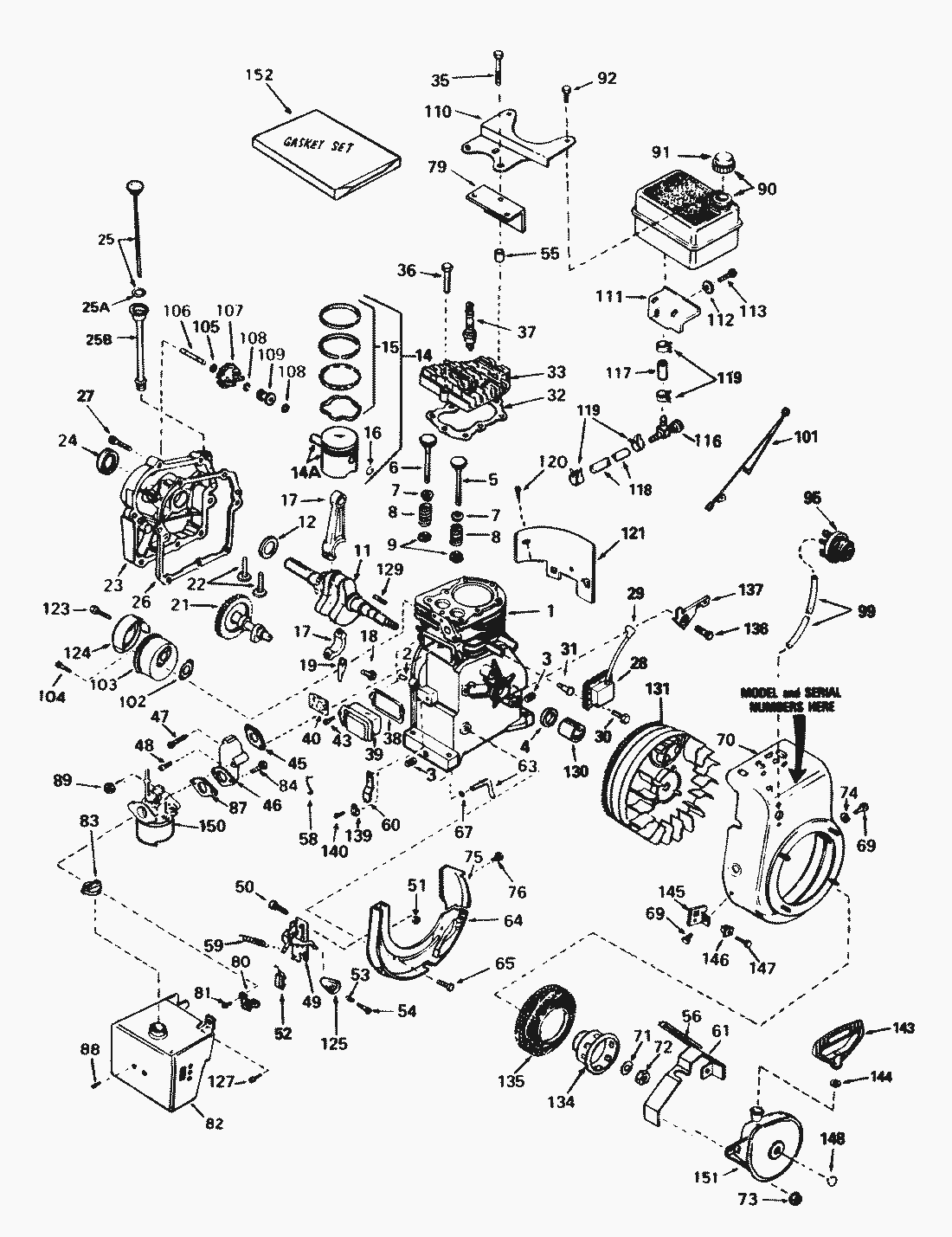

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell H35-45598R)




Pos.BezeichnungErsatzteilnummer
Cover-Cylinder (Incl. Ref.34674
Cylinder Assy. (Incl. Ref.34708A
Piston & Pin Assy. (.010 over size) (Incl.32548B
Piston, Pin & Ring Assy. (.020 oversize) (Incl.34516
Valve, Intake (1/32 oversize) (Incl. #9) 5 6 2_225010 1 38035 Valve, Intake (1/32 oversize) (Incl.29315C
Piston & Pin Assy. (Std.) (Incl.32538B
Piston & Pin Assy. (.020 over size) (Incl.32549B
Pipe, Intake (Incl.28416A
Piston, Pin & Ring Assy. (.010 oversize) (Incl.34515
Valve, Intake (Std.) (Incl.29314B
Valve, Exhaust (Std.) (Incl.29313C
Control Assy., Speed (Incl.à33858A
Rod Assy.-Connecting (Incl. Ref.32875
Dipstick, Oil (Incl.34676
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Pin, Dowel26727
3Oelablass-Schraube27642
4Simmerring32600
7Cap, Upper Valve Spring31671
8Ventilfeder31672
9Ventilsicherung31673
11Crankshaft34734A
12Washer-Thrust32323
14Kolben34514
15Kolbenringsatz28986
15Ring set, Piston (.010 oversize)28987
15Ring Set, Piston (.020 oversize)28988
16Sicherungsring20381
18Bolt, Connecting Rod32610A
19Dipper-Oil32654
21Camshaft (Compression Release)33149A
22Lifter, Valve27241
24Simmerring27897
25O-Ringe33590
25Tube, Oil Fill33893A
26Gasket, Cylinder Cover*27677
27Screw, Hex Hd.650488
28Lamination & Coil Assy., Solid State (Incl.34443A
29Cover, Spark Plug610118
30Schraube650814
31Stehbolzen650872
32Gasket, Cylinder Head*29953B
33Head, Cylinder30579
35Screw, Hex Flange Hd.650694A
36Screw, Hex Flange Hd.6021A
37Plug, Spark (Champion J-8 or equivalent) Except for Canada33636
37Resistor Spark Plug (Canadian Regulations require RJ-17LM resistor spark plug)34251
38Gasket, Breather*31619
39Ventildeckel31337
40Element, Breather31410
43Schraube650128
45Gasket, Intake Pipe*26754
47Screw, Fil. Hd.650840
48Schraube650664
50Screw, Fil. Hd.à650139
51Locknut, Hexà30322
52Kurzschlusschalter610973
53Druckfeder31342
54Screw, Fil. Hd.650549
55Spacer, Tank Bracket28212
56Seal, Snow Guard32576
58Link, Governor-to-throttle31858
59Reglerfeder31426
60Lever, Governor31510
61Guard, Starter34127
63Rod, Governor31334
64Baffle, Blower Housingà33342
65Schraube650561
67Washer, Flat28277
69Screw, Hex Hd.29212
70Housing-Blower34813A
71Scheibe650815
72Nut, Flywheel650863
73Nut & Lockwasher29752
74Scheibe650168
75Fingerschutz33341
76Screw-Hex Washer Hd. Self-Tapping650701
79Baffle, Heat33344
80Halteblech32398
81Schraube28820
82Cover-Carburetor35122
83Knob-Control35156
