> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 1132 > 610/38160 > 7000001 > Motor B&S Modell-Nr. 252416-0735-01

Ersatzteillisten für Toro Roth / TORO Motor B&S Modell-Nr. 252416-0735-01




Pos.BezeichnungErsatzteilnummer
Piston Assembly-.020 O.S. 21 1_366010 1 38160 Piston Assembly-.020 O.S.391288
Screw-Cylinder Head(3 long) 14 11 1_366010 1 38160 Screw-Cylinder Head(3 long)93723
Gasket-Crankcase1 Cover-1/64 thick 12 8 1_366010 1 38160 Gasket-Crankcase1 Cover-1/64 thick*270856
Ring Set-Piston-.020 O.S. 25 1_366010 1 38160 Ring Set-Piston-.020 O.S.391782
Piston Assembly-.010 O.S. 20 1_366010 1 38160 Piston Assembly-.010 O.S.391287
Ring Set-Piston-.030 O.S. 26 1_366010 1 38160 Ring Set-Piston-.030 O.S.391783
Rod Assembly-Connecting391816
Gasket-Crankcase Cover-.005 Thick 9 2_692014 1 38160 Gasket-Crankcase Cover-.005 Thick270857
Screw-Crankcase Cover Mounting (2-1/8 long) 22 18 1_366010 1 38160 Screw-Crankcase Cover Mounting (2-1/8 long)93764
Plug, Spark (with gasket)293918
Pin Assembly-Piston-.005 O.S. 29 1_366010 1 38160 Pin Assembly-Piston-.005 O.S.391286
Gasket-Crankcase Cover-.009 Thick 10 2_692014 1 38160 Gasket-Crankcase Cover-.009 Thick270858

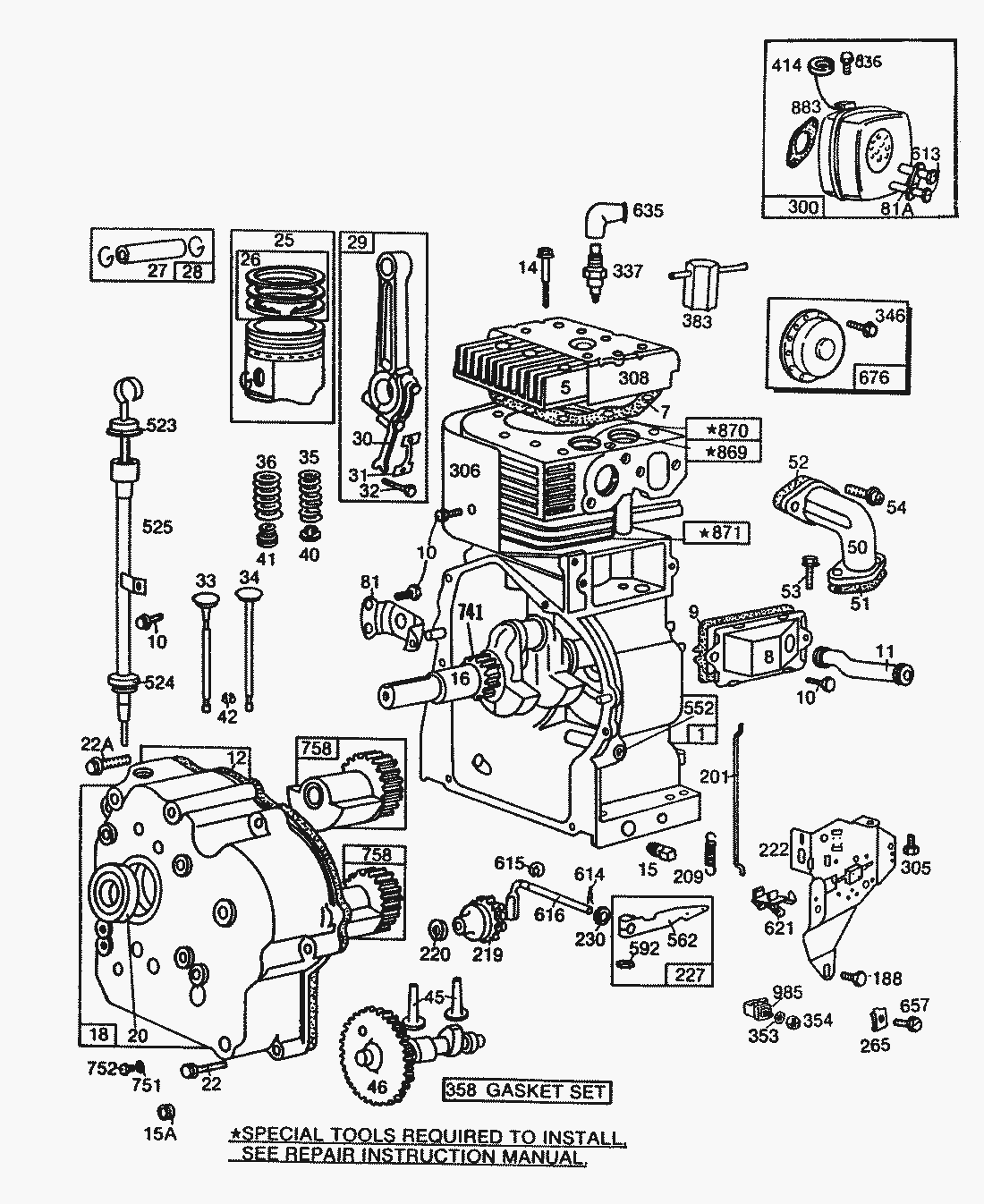

Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
1Cylinder Assembly396209
5Head-Cylinder212917
7Gasket-Cylinder Hd.*271075
8Breather Assembly391575
9Gasket-Valve Cover*27803
10Screw, Breather Mtg. Sem93394
11Entlueftungsschlauch280112
15Plug-Oil Drain91084
15Plug-Hex. Socket93418
16Crankshaft To Replace Crankshaft Gear Key, Order Part No. 94196.399688
18Cover Assembly-Crankcase391747
20Seal-Oil291675
22Schraube93585
25Kolben391285
Kolben 0.30391289
26Ringsatz391780
Kolbenringsatz 010391781
27Kolbenbolzensicherung260924
28Kolbenbolzen299691
30Dipper-Connecting Rod222329
31Lock-Connecting Rod Screw222299
32Screw-Connecting Rod92909
33Auslassventil261185
34Einlassventil261462
35Ventilfeder65906
36Spring-Exhaust Valve26828
40Retainer-Intake Valve221596
41Drehkappe292260
42Retainer-Exhaust Valve Rotocoil93630
45Tappet-Valve261183
46Gear-Cam212296
50Elbow-Intake490051
51Gasket-Barab. Mtg*à270267
52Gasket-Intake Elbow Mounting*à270872
53Screw-Carburetor Mounting Sem93415
54Screw-Intake Elbow Mounting Sem93208
81Retainer-Counterweight222407
81Lock-Screw223016
188Screw-Sem93535
201Gestaenge261236
209Spring, Governor260695
219Reglerzahnrad391737
220Scheibe221551
222Kontrollplatte399152
227Reglerhebel396775
230Washer-Gov. Crank222450
265Clamp, Casing221535
300Muffler-Exhaust490369
305Screw, Blower Housing Mtg.93158
306Shield-Cylinder222744
308Cover-Cylinder Head222306
346Schraube93705
353Federring92791
354Nut-Hex.-8-3290576
358Gasket Set391834
383Wrench-Spark Plug89838
414Distanzbuechse231109
523Cap and Dipstick-Oil Filler392295
524Seal-Filler Tube68838
525Tube-Oil Filler392283
552Bushing-Gov. Crank231056
562Bolzen92613
592Mutter231082
613Schraube93927
614Splint93306
615Halter93307
616Crank-Governor231057
621Switch-Stop396847
635Elbow-Spark Plug66538
657Screw, Sem93496
676Ausweisblech396903
741Gear-Timing262135
751Washer-Flat22355
752Screw-Plug93554
758Counterweight and Bearing Assembly391481
836Screw92747
869Einlassventil261463
870Ausl.-Ventil210940
871Ventilfuehrung231218
883Gasket-Exhaust270917
985Insulator Assembly398525
