> Roth / TORO > Aufsitzmäher > Rider > 8-25 > 372/70060 > 6900001 > Motor B&S (Modell-Nr. 195707-0121-01)

Ersatzteillisten für Toro Roth / TORO Motor B&S (Modell-Nr. 195707-0121-01)




Pos.BezeichnungErsatzteilnummer
Screw-Cylinder Head(3 long) 14 11 1_366010 1 38160 Screw-Cylinder Head(3 long)93723
Piston Assembly-.020 O.S. 22 1_492010 1 38160 Piston Assembly-.020 O.S.391675
Assy. Lever-Governor for 1/4 Dia. Crank 227 46 6148A014 1 70060 Assy. Lever-Governor for 1/4 Dia. Crank43935
Crank-Governor231058
Piston Assembly-.030 O.S. PISTON RING SETS: Note: For Chrome Ring Set-Standard Size-order No. 299743 23 1_492010 1 38160391676
Ring Set-Piston-.030 O.S. 27 1_492010 1 38160 Ring Set-Piston-.030 O.S.391672
Gasket-Cover, Crankcase .005 Thick 11 6148A014 1 70060 Gasket-Cover, Crankcase .005 Thick27876
Pin Assembly-Piston-.005 O.S. 30 1_492010 1 38160 Pin Assembly-Piston-.005 O.S.295841
Ring Set-Piston-.010 O.S. 25 1_492010 1 38160 Ring Set-Piston-.010 O.S.391670
Ring Set-Piston-.020 O.S. 26 1_492010 1 38160 Ring Set-Piston-.020 O.S.391671
Piston Assembly-.010 O.S. 21 1_492010 1 38160 Piston Assembly-.010 O.S.391674
Gasket-Cover, Crankcase .009 Thick 12 6148A014 1 70060 Gasket-Cover, Crankcase .009 Thick27877
Washer-Gov. Crank222450

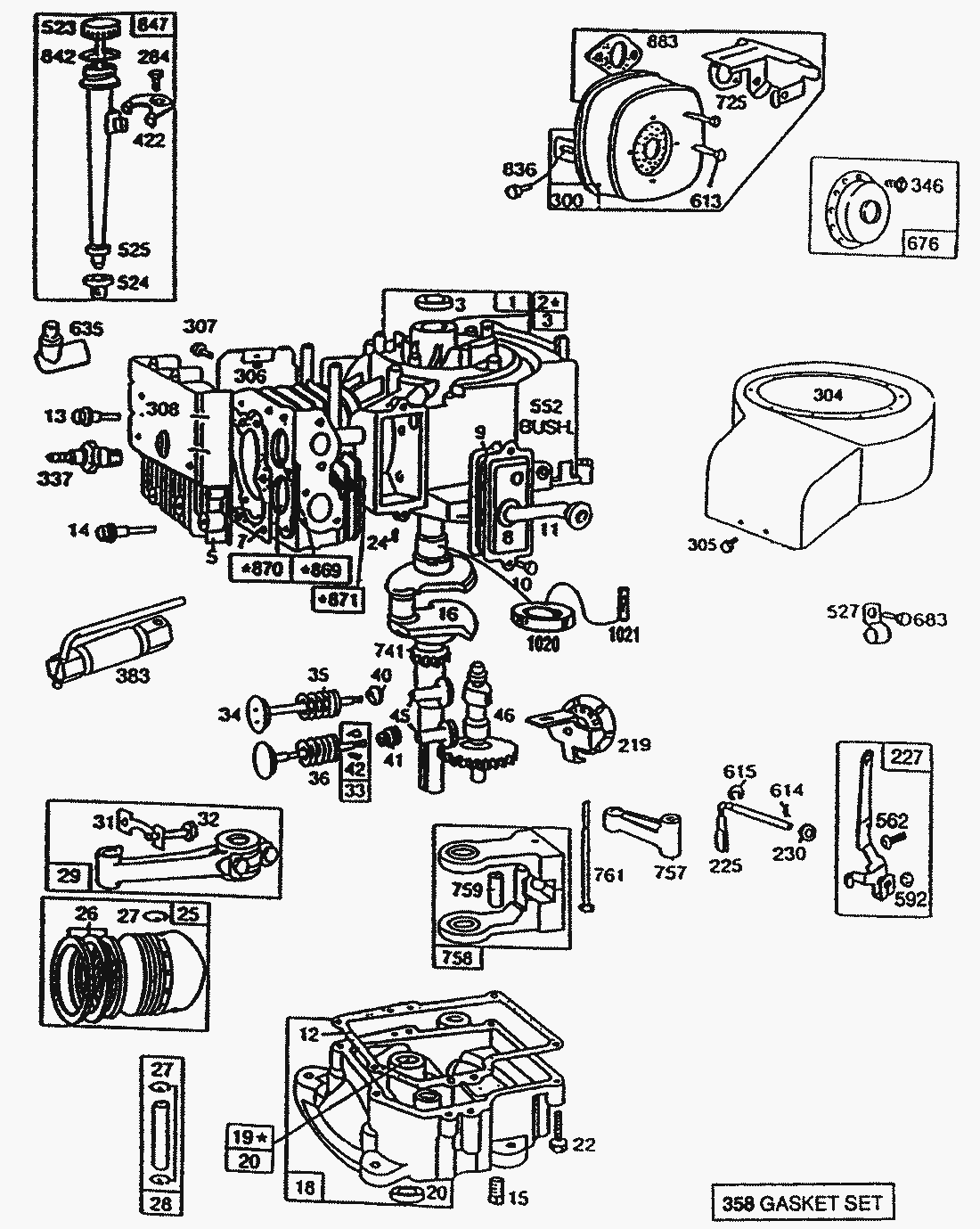

Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
1Assembly-Cylinder396269
2Bearing-Cylinder Note: Requires special tools for installation.399267
3Seal, Oil294606
5Head-Cylinder212286
7Gasket-Head, Cylinder272163
8Entluefter391406
9Dichtung t27803
10Schraube94621
11Rohr280005
12Kurbelgehaeusedichtung271701
13Zylinderkopfschraube94565
15Plug-Oil Drain94239
16Crankshaft Note: Order Part 94388 for timing gear pin replacement.396876
18Oelwanne392548
19Bushing-Base, Engine Note: Requires special tool for installation.295963
20Seal-Oil391086
22Schraube93585
24Key-Flywheel222698
25Kolben391673
26Kolbenring-Satz391669
27Lock-Piston Pin68546
28Kolbenbolzen295840
29Pleuel390402
31Lock-Connecting Rod Screw222114
32Screw-Connecting Rod92659
33Auslass-Ventil390419
34Valve-Intake261055
35Ventilfeder65906
36Spring-Exhaust Valve26828
40Retainer-Intake Valve221596
41Drehkappe292260
42Retainer-Exhaust Valve Rotocoil93630
45Tappet-Valve260933
46Nockenwelle211689
284Screw-Clamp Mtg.94419
300Auspuff398507
304Housing-Blower494084
305Screw-Blower Housing Mtg94608
306Shield-Cylinder224543
307Screw-Cylinder Shield Mtg.93949
308Cover-Head, Cylinder222636
337Zuendkerze802592
346Schraube93705
358Dichtungssatz t299577
383Wrench-Spark Plug89838
422Clamp-Oil Filler Tube223394
523Oelmesstab391840
524Seal-Filler Tube68838
525Rohr F. Oelmessstab280133
527Klammer221428
552Buechse491986
562Bolzen92613
592Mutter231082
613Schraube94042
614Splint93306
615Halter93307
635Elbow-Spark Plug66538
676Deflektor395700
683Screw-Hex93572
725Schutzschild223540
741Gear-Timing262479
757Link-Counterweight212359
758Assy.-Counterweight390172
759Kolbenbolzen298909
761Screw-Counterweight93874
836Screw93559
842Seal-Oil Filler Cap270920
847Oeleinfuellrohr392066
869Ventilsitz211661
870Ventilsitz211661
871Ventilfuehrung231218
883Gasket-Pipe, Exhaust272309
1020Eccentric261190
1021Pin-Eccentric94160
