> Roth / TORO > Aufsitzmäher > Rider > 8-25 > 372/70060 > 6900001 > B&S Modell NO 195707-0121-01

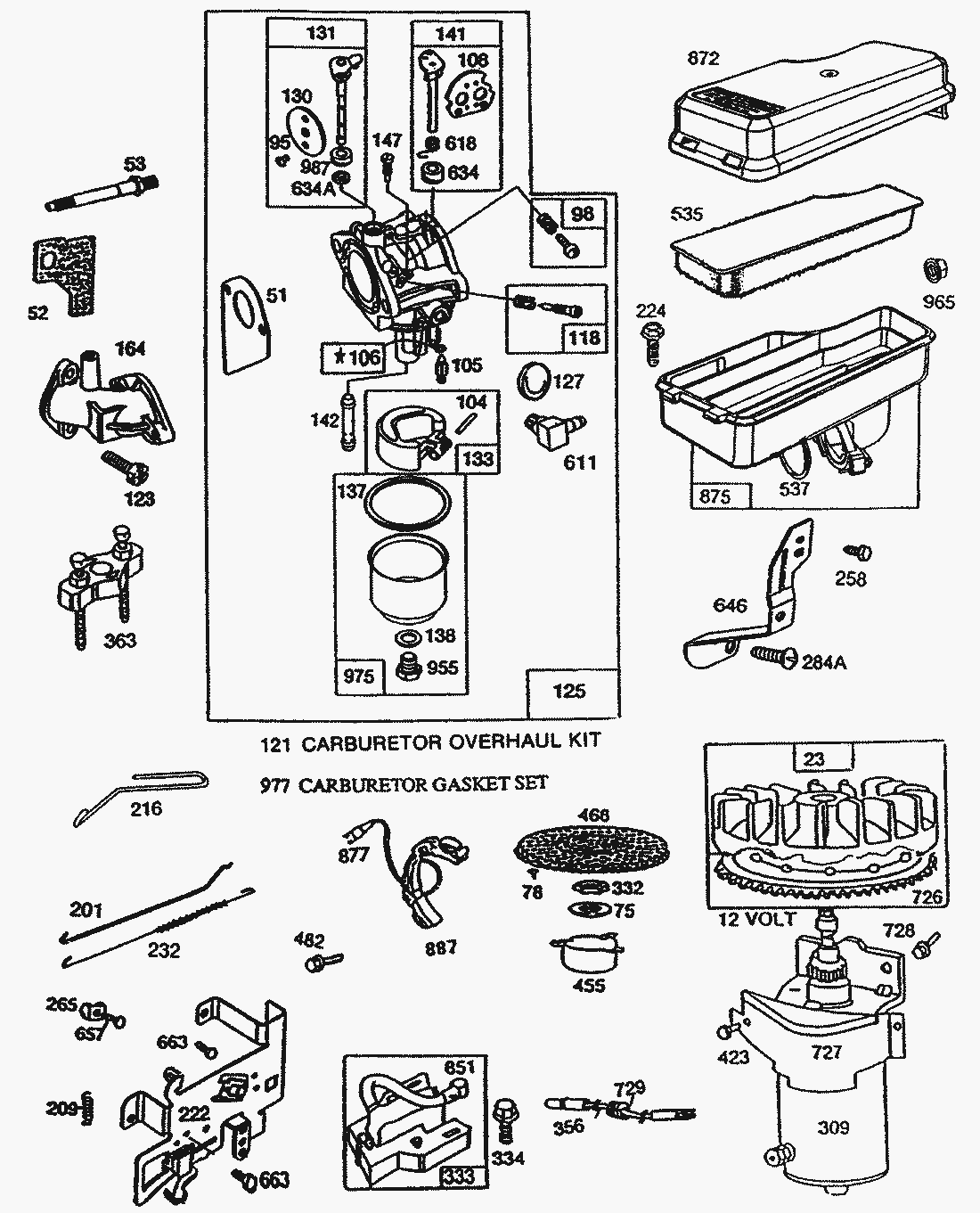

Ersatzteillisten für Toro Roth / TORO B&S Modell NO 195707-0121-01

Pos.	Bezeichnung	Ersatzteilnummer
223	Flywheel and Ring Gear Assy.-Magneto (Incl. Aluminum Ring Gear)	391983
51	Gasket-Carb (Carb to Elbow)	272465
52	Gasket-Carb. Mtg.	270824
53	Stud-Carb Mtg	94637
75	Washer-Spring	224061
78	Screw-Sem	93805
95	Schraube	94098
98	Screw-Idle Speed	494382
104	Pin-Float Hinge	231789
105	Valve Assy-Inlet Needle	231790
106	Ventilsitz	281169
108	Duese	224540
118	Duese	494383
121	Carburetor Overhaul Kit	494880
123	Screw-Elbow Mtg	94616
125	Vergaser	494894
127
130	Drosseklappe	224668
131	Drosselklappenwelle	494885
133	Schwimmer	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Welle	494380
142	Duese top	494877
147	Pilot-Jet	231794
164	Carburetor-Elbow	213819
201	Reglergestaenge	262769
209	Spring-Governor	260871
216	Startergestaenge	262768
222	Plate-Gov. Plate	493896
224	Screw-Hex Head Sem	94513
232	Reglerfeder	262787
258	Screw-Clamp Mtg.	94620
265	Clamp, Casing	221535
284	Schraube	94326
309
332	Nut-Flywheel	92284
333	Zuendspule	398811
334	Screw, Breaker Arm Mtg. Sem	93381
356	Wire-Ground	494328
363	Puller-Flywheel	19165
423	Screw-Sem	94073
455	Mitnehmer	222561
468	Screen-Flush Rotating	222562
482	Screw-Sem	93621
535	Element-Air Cleaner	272405
537	O-Ring	281106
611	Fuel Inlet Tube	494451
618	Feder	262803
634	Dichtung	281168
634	Washer-Throttle Shaft	281167
646	Brace-Air Cleaner	224614
657	Screw, Sem	93496
663	Screw-Clamp Mtg.	94419
726	Gear-Flywheel Ring (Includes Mounting Parts)	392134
727	Deckel	395405
728	Screw-Sem	93535
729	Clip-Relief	281159
851	Terminal-Ignition Cable	221798
872	Filterdeckel	281108
875	Body-Air Cleaner	494745
877	Diode	393814
887	Stator Assy.-Alternator	391529
955	Screw-Fuel Bowl	94642
965	Locknut-Air Cleaner Mtg	94108
975	Bowl Assy-Carb	494378
987	Dichtung	281166
