Ersatzteillisten für Toro Roth / TORO Motor B&S (Modell 283707-1156-E1)

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer

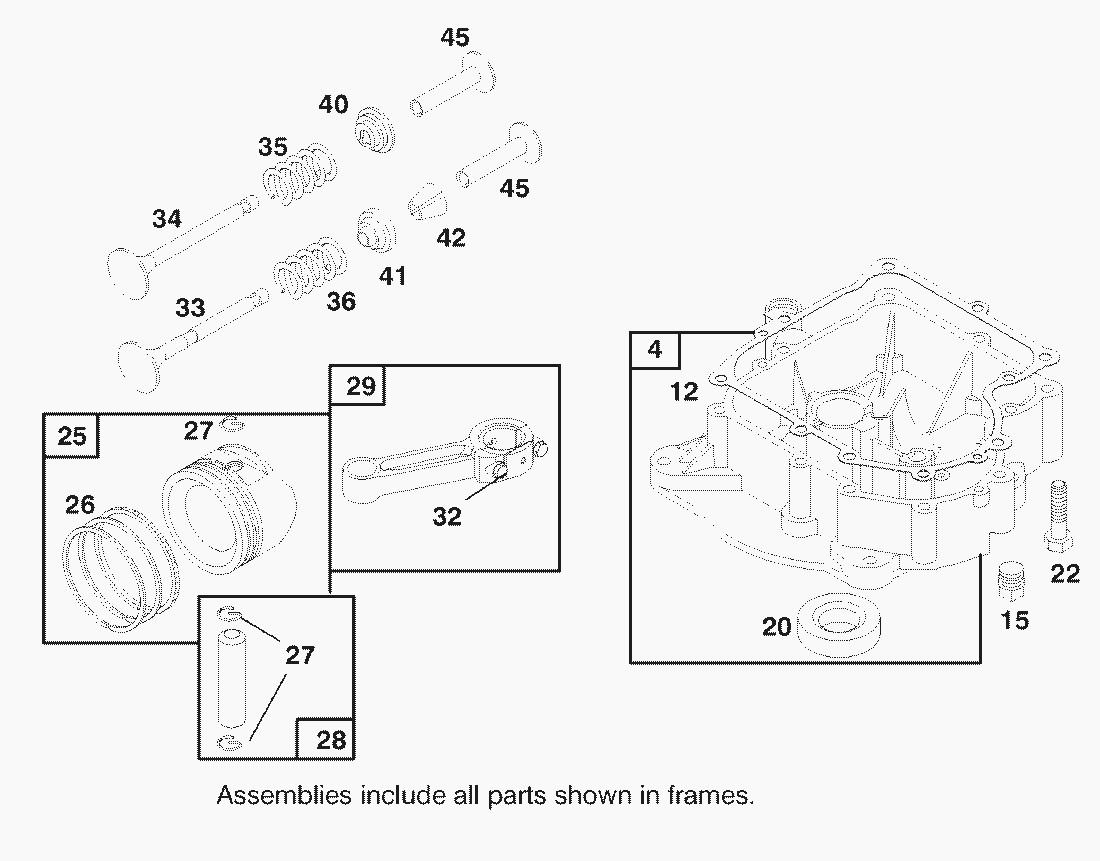

	Ring Set-Piston-.020 O.S. 25 1_366010 1 38160 Ring Set-Piston-.020 O.S.	391782
	Ring Set-Piston-.030 O.S. 26 1_366010 1 38160 Ring Set-Piston-.030 O.S.	391783

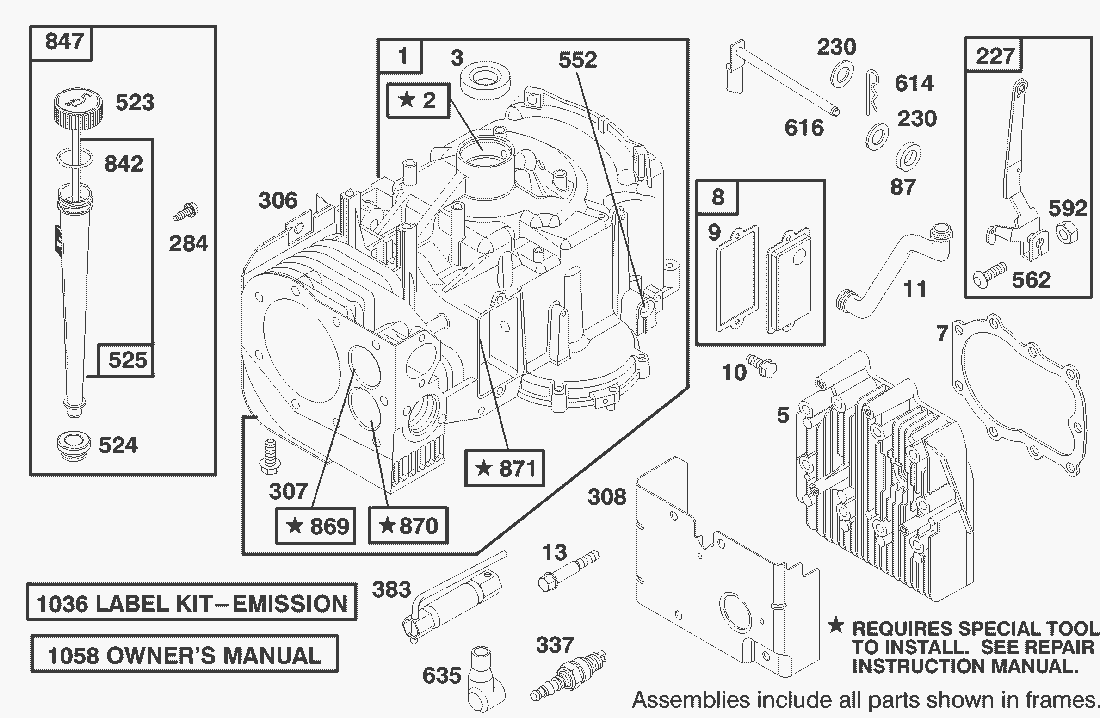

	Gasket-Crkcse Cover, 1/64 Thick 12 10 _8790030 1 S2-12B502 Gasket-Crkcse Cover, 1/64 Thick	271916
	Connecting Rod (020 U.S. Crankpin Bore) 60 5834A025 1 71140 Connecting Rod (020 U.S. Crankpin Bore)	490469
	Piston Assy. (.030 O.S.) 56 _7690023 1 71201 Piston Assy. (.030 O.S.)	499294
	Piston Assy. (.020 O.S.) 55 _7690023 1 71201 Piston Assy. (.020 O.S.)	499290
	Piston Assy. (.010 O.S.) 54 _7690023 1 71201 Piston Assy. (.010 O.S.)	499286
