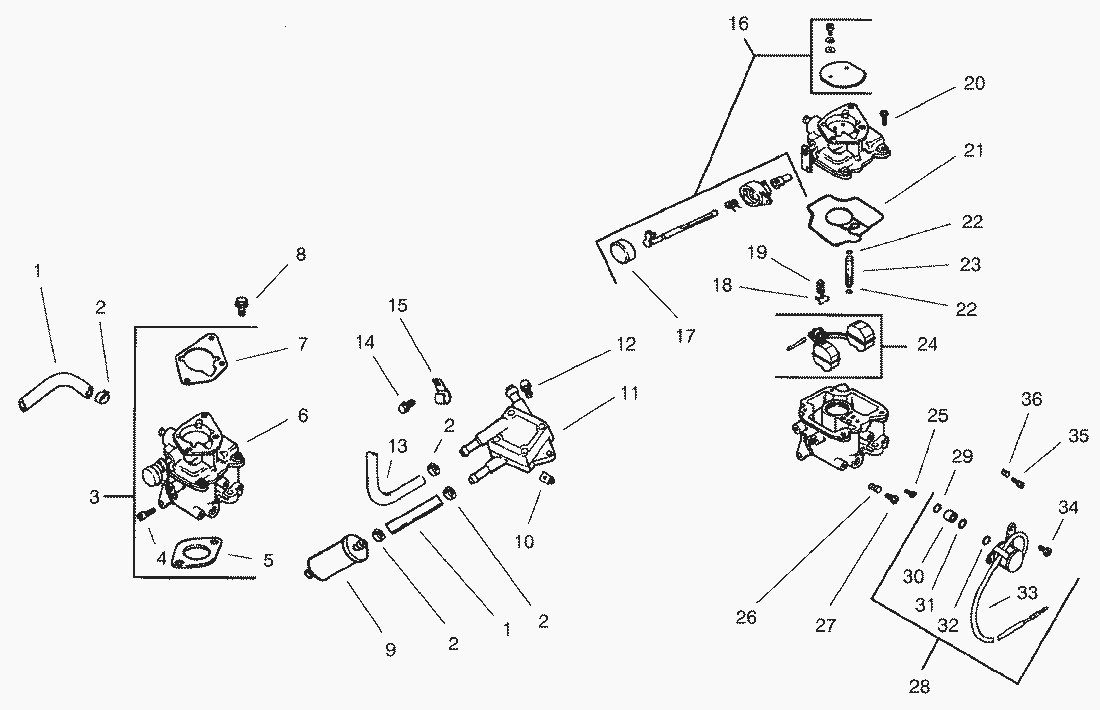

| Pos. | Bezeichnung | Ersatzteilnummer | |
| 1 | Leitung | 25 353 10 |
| 2 | Clamp-Hose | X-426-9 |
| 3 | Vergaser | 24 853 35 |
| 4 | Screw, throttle stop | 24 086 05 |
| 5 | Dichtung | 24 041 06 |
| 6 | Carburetor assembly (Includes 16-36, carburetor repair kit 24 757 03) | 24 053 32 |
| 7 | Dichtung | 24 041 17 |
| 8 | Screw M6x1.0x30 (Only On: 72103, 72083) | M-0651030 |
| 9 | Benzinvorfilter | 24 050 02 |
| 10 | Mutter | 24 100 01 |
| 11 | Pump-Fuel (Only On: 72103, 72083) | 24 393 04 |
| 12 | Schraube | 24 086 12 |
| 13 | Benzinschlauch | 24 353 04 |
| 14 | Screw, hex. flange | M-0650012 |
| 15 | Clip-Cable (Only On: 72103,72083) | 47 154 01 |
| 16 | Vergaser | 24 757 07 |
| 17 | Cap, choke lever | 24 173 02 |
| 18 | Clip, inlet needle valve | 24 154 01 |
| 19 | Schwimmerventil | 24 462 01 |
| 20 | Screw, carburetor body | 24 086 09 |
| 21 | Dichtung | 24 041 09 |
| 22 | O-Ring | 24 153 02 |
| 23 | Duese | 24 337 01 |
| 24 | Schwimmer | 24 757 02 |
| 25 | Duese | 24 337 02 |
| 26 | Feder | 24 089 10 |
| 27 | Duese | 24 086 10 |
| 28 | Reparatur-Satz | 24 757 01 |
| 29 | O-Ring | 24 153 06 |
| 30 | Magnetsitz | 24 521 01 |
| 31 | O-Ring | 24 153 05 |
| 32 | O-Ring | 24 153 04 |
| 33 | Magnetschalter | 24 435 01 |
| 34 | Screw, solenoid | 24 086 07 |
| 35 | Duese | 24 368 01 |
| 36 | Feder | 24 089 11 |
| Reparatur-Satz | 24 757 03 |
