> Roth / TORO > Aufsitzmäher > Traktor > 264-6 > 501/72062 > 5900001 > Kraftstoffsystem (Kohler Motor CV16S-PS61514)

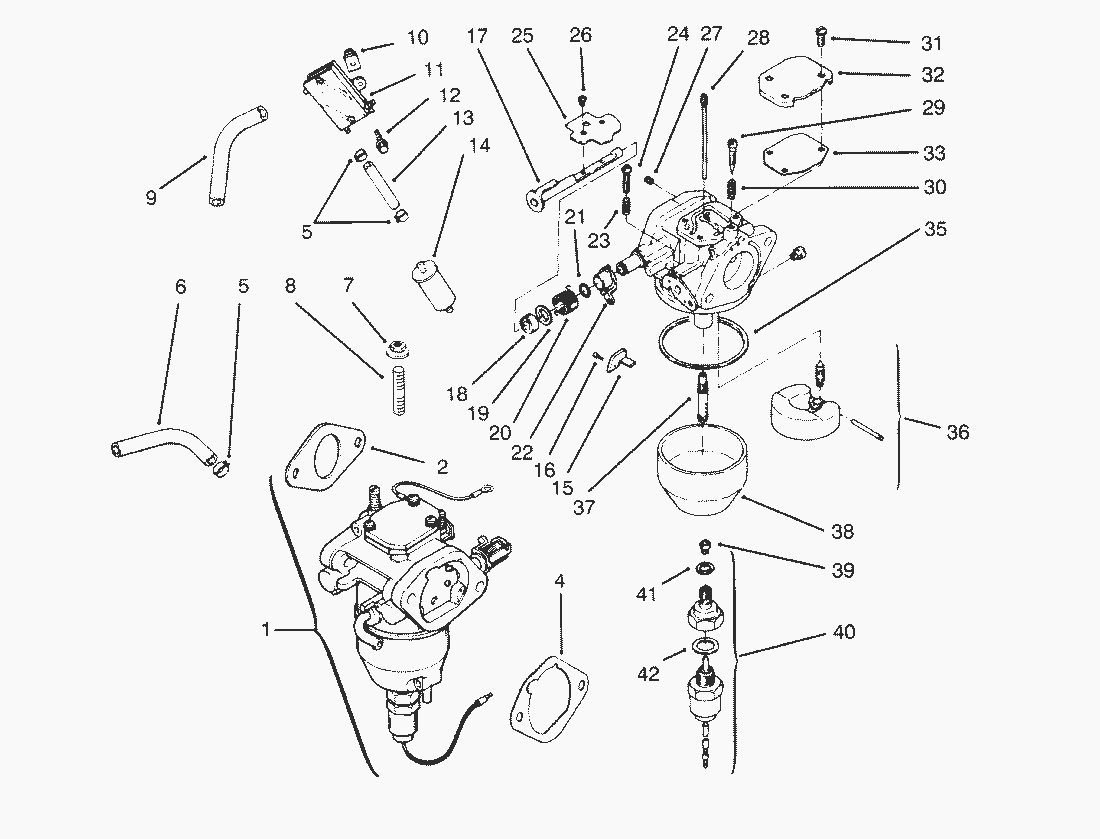

Ersatzteillisten für Toro Roth / TORO Kraftstoffsystem (Kohler Motor CV16S-PS61514)




Pos.BezeichnungErsatzteilnummer
Line-Fuel 3 1/2 (Only On: 72103) 13 12 7_338061 1 72062 Line-Fuel 3 1/2 (Only On: 72103)25_353_15
Line-Fuel 10 1 /2 (Only On: 72103) 6 5 7_338061 1 72062 Line-Fuel 10 1 /2 (Only On: 72103)24_353_03
Line-Fuel 12 (Only On: 72103) 9 8 7_338061 1 72062 Line-Fuel 12 (Only On: 72103)52_353_22
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
1Kit-Carb INCL 2/4/15-42 (Only On: 72103)24_853_24
2Gasket-Carburetor (Only On: 72103)24_041_15
4Gasket-A/C Base (Only On: 72103)24_041_14
5Clamp-HoseX-426-9
7Nut M6x1.0 (Only On: 72103, 72083)SM-0641060
8Stud M6x1.0x95 (Only On: 72103, 72083)M-0629095
10Nut-Plastic (Only On: 72103)24_100_01
11Pump-Fuel (Only On: 72103)24_393_04
12Screw-Cable Clip (Only On: 72103)24_086_12
14Filter-Fuel (Only On: 72103)25_050_02
15Bracket-Throttle Stop (Only On: 72103)24_126_29
16Screw M2.5x45x5.5 (Only On: 72103, 72083)M-0259006
17Shaft-Choke (Only On: 72103)24_144_15
18Washer (Only On: 72103)24_468_05
19Collar-Choke (Only On: 72103)24_241_01
20Spring-Choke Return (Only On: 72103)24_089_22
21Ring-Choke Lever (Only On: 72103)24_141_04
22Lever-Choke (Only On: 72103)24_090_10
23Spring-Throttle Screw (Only On: 72103)24_089_24
24Screw-Throttle Adjust (Only On: 72103)24_086_19
25Valve-Choke (Only On: 72103)24_462_02
26Screw-Throttle Shaft (Only On: 72103)24_086_20
27Jet-Air Bleed (Only On: 72103)24_337_27
28Jet-Slow (Only On: 72103)24_337_11
29Screw-Idle Adjust (Only On: 72103)24_086_22
30Spring-Idle Adjust Screw (Only On: 72103)24_089_23
31Screw (Only On: 72103)24_086_21
32Cover-Passage (Only On: 72103)24_096_13
33Gasket-Passage Cover (Only On: 72103)24_041_18
35Gasket-Float Chamber (Only On: 72103)24_041_19
36Kit-Float Repair (Only On: 72103)24_757_05
37Nozzle-Main (Only On: 72103)24_369_01
38Chamber-Float (Only On: 72103)24_234_01
39Jet-Main (Only On: 72103)24_337_20
40Kit-Solenoid INCL 41-42 (Only On: 72103)24_755_15
41Gasket-Chamber Screw (Only On: 72103)24_041_21
42Gasket-Solenoid (Only On: 72103)24_041_20
Gasket-Carburetor (Only On: 72103)24_041_15
Baffle-Carburetor (Only On: 72103)24_063_22
Kit-Hi Alt 1500-3000 M (Only On: 72103)24_755_25
Kit-Hi Alt Over 3000 M (Only On: 72103)24_755_26
Kit-Carburetor Repair (Only On: 72103)24_757_06
