Shimano SG-C6000-8R NEXUS 8-Speed Internal Hub Ersatzteile

SG-C6000-8R NEXUS 8-Speed Internal Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C6000-8R NEXUS 8-Speed Internal Hub

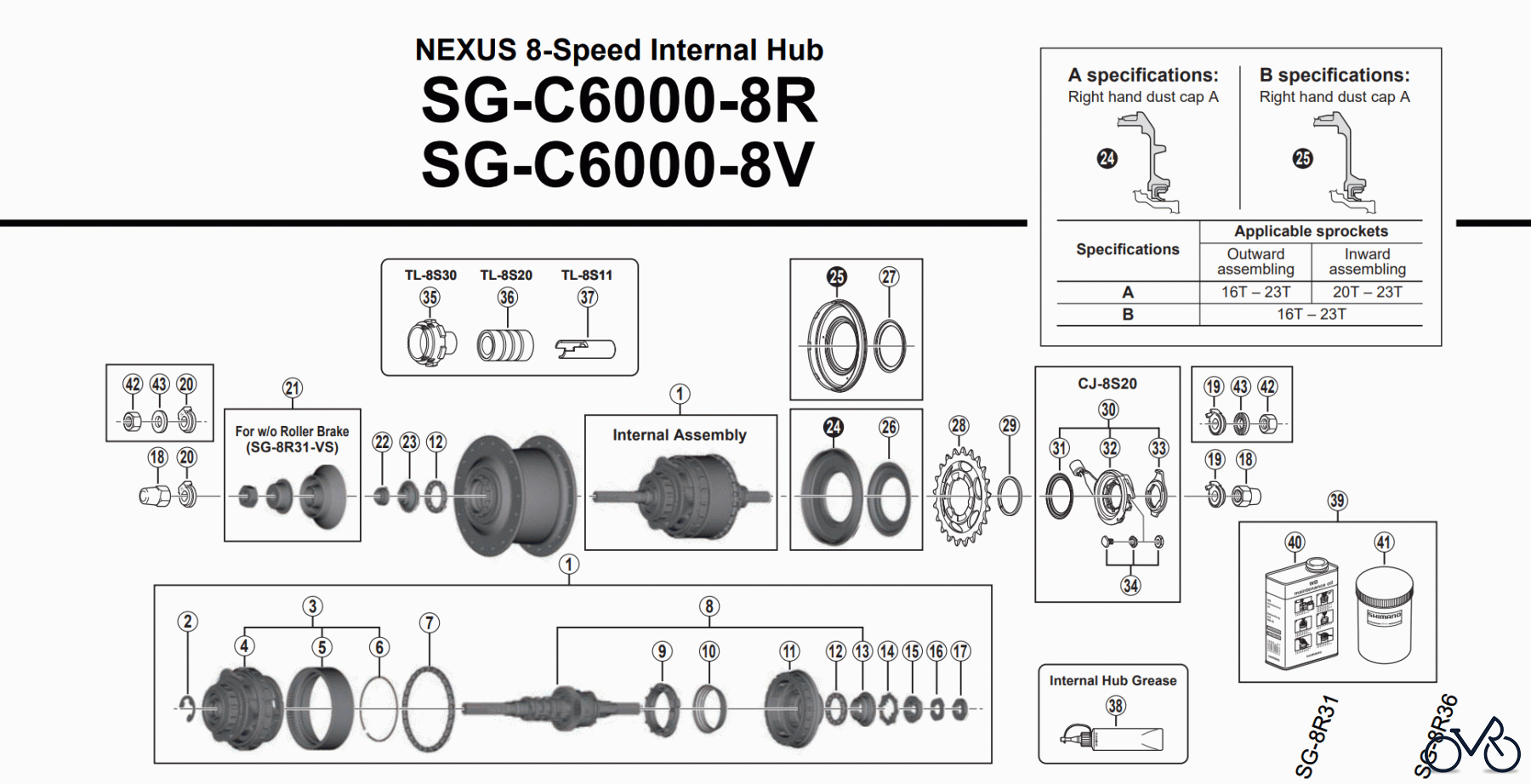

Hier finden Sie die Ersatzteilzeichnung für Shimano SG Getriebenabe /Nabenschaltung SG-C6000-8R NEXUS 8-Speed Internal Hub. Wählen Sie das benötigte Fahrrad-Ersatzteil aus der Ersatzteilliste Ihres Shimano Fahrrads aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

Häufig benötigte Shimano SG-C6000-8R NEXUS 8-Speed Internal Hub Ersatzteile

Ball Retainer P (3/16

Ball Retainer P (3/16" x 13)

Artikelnummer: Y-34R98070
Suche nach: Y-34R98070
Hersteller: Fahrrad
Shimano Ersatzteil SG-C6000-8R NEXUS 8-Speed Internal Hub
4.95 €
für EU incl. MwSt., zzgl. Versand
Left Hand Cone w/Dust Cap

Left Hand Cone w/Dust Cap

Artikelnummer: Y-30898070
Suche nach: Y-30898070
Hersteller: Fahrrad
Shimano Ersatzteil SG-C6000-8R NEXUS 8-Speed Internal Hub
9.98 €
für EU incl. MwSt., zzgl. Versand
Internal Hub Grease (Net. 100g)

Internal Hub Grease (Net. 100g)

Artikelnummer: Y-04120800
Suche nach: Y-04120800
Hersteller: Fahrrad
Shimano Ersatzteil SG-C6000-8R NEXUS 8-Speed Internal Hub
15.70 €
für EU incl. MwSt., zzgl. Versand
CJ-8S20 Cassette Joint Unit

CJ-8S20 Cassette Joint Unit

Artikelnummer: Y-74Y98120
Suche nach: Y-74Y98120
Hersteller: Fahrrad
Shimano Ersatzteil SG-C6000-8R NEXUS 8-Speed Internal Hub
10.95 €
für EU incl. MwSt., zzgl. Versand
Right Hand Dust Cap B (B spec.)

Right Hand Dust Cap B (B spec.)

Artikelnummer: Y-34R0E000
Suche nach: Y-34R0E000
Hersteller: Fahrrad
Shimano Ersatzteil SG-C6000-8R NEXUS 8-Speed Internal Hub
2.95 €
für EU incl. MwSt., zzgl. Versand
BildNrArtikel NummerBezeichnung
1 Y-37J98010 Internal Assembly (Axle Length 184 mm) Y37J98010
1 Y-37J98030 Internal Assembly (Axle Length 203 mm) Y37J98030
2 Shimano Stop Ring (?12 / 1.0 mm) Y-34R79000 Stop Ring (?12 / 1.0 mm) Y34R79000
2 Y-34R79010 Stop Ring (?12 / 1.3 mm) Y34R79010
2 Y-34R79020 Stop Ring (?12 / 1.6 mm) Y34R79020
3 Y-36V98020 Ring Gear Unit Y36V98020
4 Y-36V98030 Carrier Unit Y36V98030
5 Y-36V22000 Ring Gear 1 Y36V22000
6 Y-34R80000 Ring Gear 1 Stop Ring Y34R80000
7 Y-34R98030 Ball Retainer O (3/16" x 26) Y34R98030
8 Y-37J98060 Hub Axle Unit (Axle Length 184 mm) & Right Hand Cone w/Seal Y37J98060
8 Y-37J98070 Hub Axle Unit (Axle Length 203 mm) & Right Hand Cone w/Seal Y37J98070
9 Shimano Clutch Unit Y-34R98050 Clutch Unit Y34R98050
10 Shimano Return Spring Y-34R21000 Return Spring Y34R21000
11 Shimano Driver Unit Y-37J98020 Driver Unit Y37J98020
12 Shimano Ball Retainer P (3/16" x 13) Y-34R98070 Ball Retainer P (3/16" x 13) Y34R98070
13 Shimano Right Hand Cone w/Seal Y-37J98080 Right Hand Cone w/Seal Y37J98080
14 Shimano Driver Plate Y-34R12000 Driver Plate Y34R12000
15 Shimano Lock Washer Y-34R98090 Lock Washer Y34R98090
16 Shimano Stop Washer Y-34R09000 Stop Washer Y34R09000
17 Shimano Right Hand Lock Nut (3.4 mm) Y-33Z07020 Right Hand Lock Nut (3.4 mm) Y33Z07020
18 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
19 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
19 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
19 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
19 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
20 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
20 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
20 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
20 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
21 Shimano Left Hand Dust Cap Unit Y-34R98100 Left Hand Dust Cap Unit Y34R98100
22 Shimano Lock Nut for Left Hand Cone Y-31Z06030 Lock Nut for Left Hand Cone Y31Z06030
23 Shimano Left Hand Cone w/Dust Cap Y-30898070 Left Hand Cone w/Dust Cap Y30898070
24 Shimano Right Hand Dust Cap A w/Seal (A spec.) Y-37G98080 Right Hand Dust Cap A w/Seal (A spec.) Y37G98080
25 Shimano Right Hand Dust Cap A w/Seal (B spec.) Y-34R98110 Right Hand Dust Cap A w/Seal (B spec.) Y34R98110
26 Shimano Right Hand Dust Cap C (A spec.) Y-36R07000 Right Hand Dust Cap C (A spec.) Y36R07000
27 Shimano Right Hand Dust Cap B (B spec.) Y-34R0E000 Right Hand Dust Cap B (B spec.) Y34R0E000
28 Shimano Sprocket Wheel 16T (Silver) Y-32203220 Sprocket Wheel 16T (Silver) Y32203220
28 Shimano Sprocket Wheel 18T (Silver) Y-32203420 Sprocket Wheel 18T (Silver) Y32203420
28 Shimano Sprocket Wheel 19T (Silver) Y-32203520 Sprocket Wheel 19T (Silver) Y32203520
28 Shimano Sprocket Wheel 20T (Silver) Y-32203620 Sprocket Wheel 20T (Silver) Y32203620
28 Shimano Sprocket Wheel 21T (Silver) Y-33060000 Sprocket Wheel 21T (Silver) Y33060000
28 Shimano Sprocket Wheel 22T (Silver) Y-33060100 Sprocket Wheel 22T (Silver) Y33060100
28 Shimano Sprocket Wheel 23T (Silver) Y-33060200 Sprocket Wheel 23T (Silver) Y33060200
29 Shimano Snap Ring C Y-32120100 Snap Ring C Y32120100
30 Shimano CJ-8S20 Cassette Joint Unit Y-74Y98120 CJ-8S20 Cassette Joint Unit Y74Y98120
31 Shimano Driver Cap Y-74Y18000 Driver Cap Y74Y18000
32 Shimano CJ-8S20 Cassette Joint Y-74Y98130 CJ-8S20 Cassette Joint Y74Y98130
33 Shimano Cassette Joint Fixing Ring Y-33Z98020 Cassette Joint Fixing Ring Y33Z98020
34 Shimano Inner Cable Fixing Bolt Unit Y-74Y98030 Inner Cable Fixing Bolt Unit Y74Y98030
35 Shimano TL-8S30 Carrier Unit Tool Y-70800300 TL-8S30 Carrier Unit Tool Y70800300
36 Shimano TL-8S20 Right Hand Cone Installation Tool Y-70800200 TL-8S20 Right Hand Cone Installation Tool Y70800200
37 Shimano TL-8S11 Right Hand Cone Removal Tool Y-70800600 TL-8S11 Right Hand Cone Removal Tool Y70800600
38 Shimano Internal Hub Grease (Net. 100g) Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
39 Y-00298010 WB maintenance oil set Y00298010
40 Y-00201000 WB maintenance oil (1L) Y00201000
41 Shimano Bottle Y-00201100 Bottle Y00201100
42 Y-20003000 Hub Nut (9 mm) for Axle Length 203 mm Y20003000
43 Y-22006040 Washer (3.2 mm) for Axle Length 203 mm Y22006040
-- Y-34R0D000 Right Hand Hub Cup Y34R0D000
