Shimano SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake Ersatzteile

SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

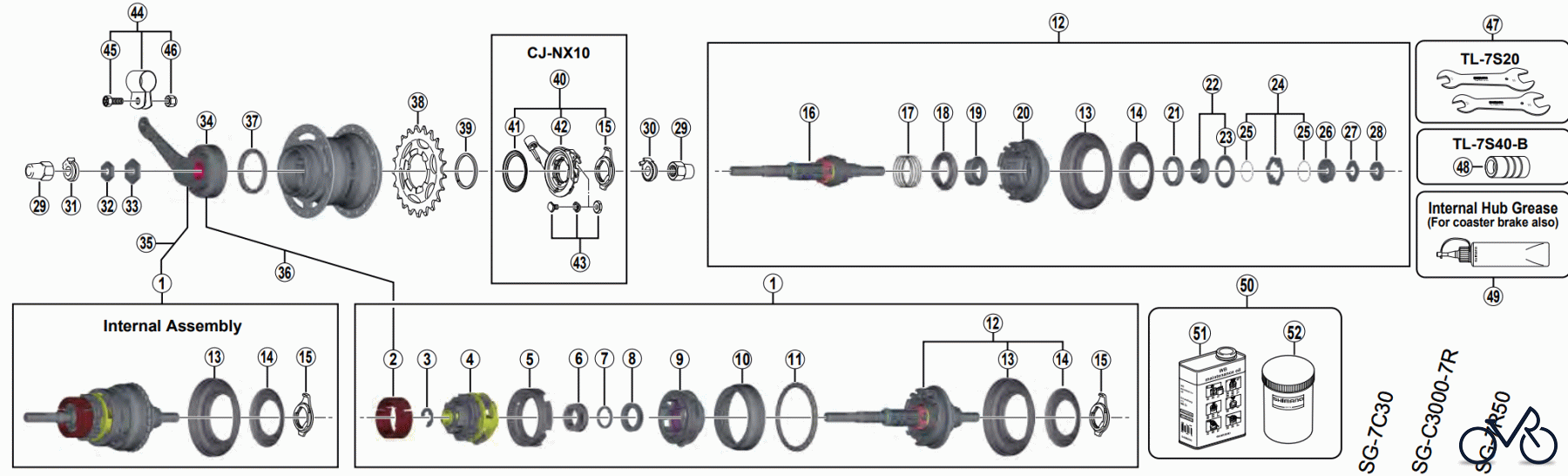

Hier finden Sie die Ersatzteilzeichnung für Shimano SG Getriebenabe /Nabenschaltung SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake. Wählen Sie das benötigte Fahrrad-Ersatzteil aus der Ersatzteilliste Ihres Shimano Fahrrads aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

Häufig benötigte Shimano SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake Ersatzteile

Ball Retainer B (3/16" x 16)

Artikelnummer: Y-38R98190
Suche nach: Y-38R98190
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

2.95 €

für EU incl. MwSt., zzgl. Versand

Ball Retainer F (3/16" x 12)

Artikelnummer: Y-33091600
Suche nach: Y-33091600
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

4.95 €

für EU incl. MwSt., zzgl. Versand

Internal Hub Grease (Net. 100g)

Artikelnummer: Y-04120800
Suche nach: Y-04120800
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

15.70 €

für EU incl. MwSt., zzgl. Versand

BildNr	Artikel Nummer	Bezeichnung
1	Y-38R98010	Internal Assembly (Axle Length 175.5 mm) for SG-C3000-7C B Y38R98010
1	Y-38R98020	Internal Assembly (Axle Length 175.5 mm) for SG-C3000-7C-DX B Y38R98020
1	Y-38R98030	Internal Assembly (Axle Length 184 mm) for SG-C3000-7C-DX Y38R98030
2	Y-38R98040	Brake Shoe Unit Y38R98040
3	Y-32532000	Stop Ring ( ø9 mm) Y32532000
4	Y-38R98050	Carrier Unit 2 Y38R98050
5	Y-35K98040	Ring Gear Unit 2 Y35K98040
6	Y-38R09000	Sun Gear 3 Y38R09000
7	Y-38R11000	Sun Gear Guide Ring 2 Y38R11000
8	Y-38R08000	Sun Gear 2 Y38R08000
9	Y-38P98050	Carrier Unit 1 Y38P98050
10	Y-35K98050	Ring Gear Unit 1 Y35K98050
11	Y-38R98060	Ball Retainer H (3/16" x 29) Y38R98060
12	Y-38R98070	Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C Y38R98070
12	Y-38R98080	Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C-DX Y38R98080
12	Y-38R98090	Axle & Driver Unit (Axle Length 184 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C-DX Y38R98090
13	Y-35B05000	Right Hand Dust Cap B for SG-C3000-7C Y35B05000
13	Y-35K06000	Right Hand Dust Cap B for SG-C3000-7C-DX Y35K06000
14	Y-33Z26000	Right Hand Dust Cap C Y33Z26000
15	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
16	Y-38R98100	Axle Unit (Axle Length 175.5 mm) Y38R98100
16	Y-38R98110	Axle Unit (Axle Length 184 mm) Y38R98110
17	Y-33024000	Return Spring Y33024000
18	Y-33Z10000	Gear Shifting Cam Y33Z10000
19	Y-33Z11000	Feed Cam Y33Z11000
20	Y-35K98080	Driver Unit Y35K98080
21	Y-33091600	Ball Retainer F (3/16" x 12) Y33091600
22	Y-35K98100	Right Hand Cone w/Seal Y35K98100
23	Y-35K07000	Right Hand Cone Seal Y35K07000
24	Y-33F98040	Driver Plate w/Seal Y33F98040
25	Y-33012000	Driver Plate Seal Y33012000
26	Y-33E98120	Lock Washer Y33E98120
27	Y-33Z08000	Stop Washer Y33Z08000
28	Y-33Z07020	Right Hand Lock Nut (3.4 mm) Y33Z07020
29	Y-31414010	Cap Nut (3/8") Y31414010
30	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
30	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
30	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
31	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
31	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
31	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
32	Y-32138040	Lock Nut (3.5 mm) Y32138040
33	Y-33548110	Stop Nut Y33548110
34	Y-38R98120	Brake Arm Unit for SG-C3000-7C Y38R98120
34	Y-38R98130	Brake Arm Unit for SG-C3000-7C-DX Y38R98130
35	Y-38R98140	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit for SG-C3000-7C Y38R98140
35	Y-38R98150	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit for SG-C3000-7C-DX Y38R98150
36	Y-38R98160	Internal Assembly (Axle Length 184 mm) & Brake Arm Unit for SG-C3000-7C-DX Y38R98160
36	Y-38R98170	Brake Shoe Unit & Brake Arm Unit for SG-C3000-7C Y38R98170
37	Y-38R98180	Brake Shoe Unit & Brake Arm Unit for SG-C3000-7C-DX Y38R98180
38	Y-38R98190	Ball Retainer B (3/16" x 16) Y38R98190
38	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
38	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
38	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
38	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
38	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
38	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
38	Y-33060200	Sprocket Wheel 23T (Silver) Y33060200
39	Y-32120100	Snap Ring C Y32120100
40	Y-74Y98050	CJ-NX10 Cassette Joint Unit Y74Y98050
41	Y-74Y18000	Driver Cap Y74Y18000
42	Y-74Y93100	CJ-NX10 Cassette Joint Y74Y93100
43	Y-74Y98060	Inner Cable Fixing Bolt Unit Y74Y98060
44	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
45	Y-75M06000	Clip Screw (M6 x 16) Y75M06000
46	Y-31727200	Clip Nut Y31727200
47	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. Y13098900
48	Y-30889000	TL-7S40-B Right Hand Cone Tool Y30889000
49	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
50	Y-00298010	WB maintenance oil set Y00298010
51	Y-00201000	WB maintenance oil (1L) Y00201000
52	Y-00201100	Bottle Y00201100
