Shimano SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub Ersatzteile

SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub SG Getriebenabe /Nabenschaltung

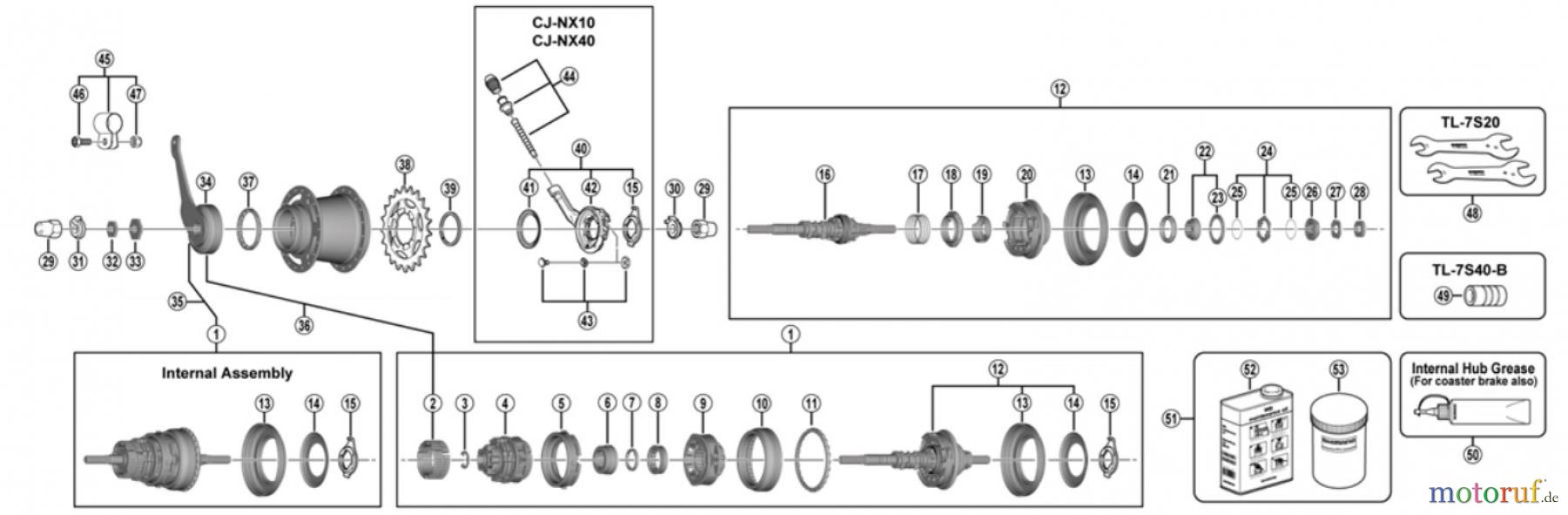

Hier finden Sie die Ersatzteilzeichnung für Shimano SG Getriebenabe /Nabenschaltung SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

Häufig benötigte Shimano SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub Ersatzteile

Ball Retainer H (3/16" x 26)

Artikelnummer: Y-3EV98220
Suche nach: Y-3EV98220
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub

2.95 €

für EU incl. MwSt., zzgl. Versand

Ball Retainer B (3/16" x 16) A A

Artikelnummer: Y-38R98190
Suche nach: Y-38R98190
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub

2.95 €

für EU incl. MwSt., zzgl. Versand

Driver Cap A A

Artikelnummer: Y-74Y18000
Suche nach: Y-74Y18000
Hersteller: Fahrrad
Shimano Ersatzteil SG-C3001-7C (-4219B) NEXUS 7-Speed Internal Hub

2.95 €

für EU incl. MwSt., zzgl. Versand

BildNr	Artikel Nummer	Bezeichnung
1	Y-3EV98150	Internal Assembly (Axle Length 175.5 mm) B B Y3EV98150
2	Y-38R98040	Brake Shoe Unit A Y38R98040
3	Y-32532000	Stop Ring ( ø9 mm) A A Y32532000
4	Y-3EV98030	Carrier Unit 2 Y3EV98030
5	Y-35K98040	Ring Gear Unit 2 A A Y35K98040
6	Y-3EV09000	Sun Gear 3 Y3EV09000
7	Y-38R11000	Sun Gear Guide Ring 2 A Y38R11000
8	Y-3EV08000	Sun Gear 2 Y3EV08000
9	Y-38P98050	Carrier Unit 1 A Y38P98050
10	Y-35K98050	Ring Gear Unit 1 A Y35K98050
11	Y-3EV98220	Ball Retainer H (3/16" x 26) Y3EV98220
12	Y-3EV98160	Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C Y3EV98160
13	Y-35B05000	Right Hand Dust Cap B A A Y35B05000
14	Y-33Z26000	Right Hand Dust Cap C A A Y33Z26000
15	Y-33Z98020	Cassette Joint Fixing Ring A A Y33Z98020
16	Y-3EV98060	Axle Unit (Axle Length175.5mm) Y3EV98060
17	Y-33024000	Return Spring A A A Y33024000
18	Y-33Z10000	Gear Shifting Cam A A Y33Z10000
19	Y-3EV02000	Feed Cam Y3EV02000
20	Y-35K98080	Driver Unit A A Y35K98080
21	Y-33091600	Ball Retainer F (3/16" x 12) A A Y33091600
22	Y-39098160	Right Hand Cone w/Seal A A Y39098160
23	Y-35K07000	Right Hand Cone Seal A A Y35K07000
24	Y-33F98040	Driver Plate w/Seal A A Y33F98040
25	Y-33012000	Driver Plate Seal A A Y33012000
26	Y-33E98120	Lock Washer A A Y33E98120
27	Y-33Z08000	Stop Washer A A Y33Z08000
28	Y-33Z07020	Right Hand Lock Nut (3.4 mm) A A Y33Z07020
29	Y-31414010	Cap Nut (3/8") A A Y31414010
30	Y-33Z20500	Non-turn Washer 5R (Yellow) A A Y33Z20500
30	Y-33M39600	Non-turn Washer 6R (Silver) A A Y33M39600
30	Y-33M39700	Non-turn Washer 7R (Black) A A Y33M39700
31	Y-33M39510	Non-turn Washer 5L (Brown) A A Y33M39510
31	Y-33M39610	Non-turn Washer 6L (White) A A Y33M39610
31	Y-33M39710	Non-turn Washer 7L (Gray) A A Y33M39710
32	Y-32138040	Lock Nut (3.5 mm) A A Y32138040
33	Y-33548110	Stop Nut A A Y33548110
34	Y-38R98120	Brake Arm Unit (Silver) A Y38R98120
34	Y-3EV98170	Brake Arm Unit (Black) B Y3EV98170
35	Y-3EV98180	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit (Silver) B B Y3EV98180
35	Y-3EV98190	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit (Black) B B Y3EV98190
36	Y-3EV98200	Brake Shoe Unit & Brake Arm Unit (Silver) A B Y3EV98200
36	Y-3EV98210	Brake Shoe Unit & Brake Arm Unit (Black) A B Y3EV98210
37	Y-38R98190	Ball Retainer B (3/16" x 16) A A Y38R98190
38	Y-32203220	Sprocket Wheel 16T (Silver) A A Y32203220
38	Y-32203420	Sprocket Wheel 18T (Silver) A A Y32203420
38	Y-32203520	Sprocket Wheel 19T (Silver) A A Y32203520
38	Y-32203620	Sprocket Wheel 20T (Silver) A A Y32203620
38	Y-33060000	Sprocket Wheel 21T (Silver) A A Y33060000
38	Y-33060100	Sprocket Wheel 22T (Silver) A A Y33060100
38	Y-33060200	Sprocket Wheel 23T (Silver) A A Y33060200
39	Y-32120100	Snap Ring C A A Y32120100
40	Y-74Y98050	CJ-NX10 Cassette Joint Unit A A Y74Y98050
40	Y-74V98010	CJ-NX10 Cassette Joint Unit for Belt drive system Y74V98010
40	Y-74Y98100	CJ-NX40 Cassette Joint Unit Y74Y98100
41	Y-74Y18000	Driver Cap A A Y74Y18000
42	Y-74Y93100	CJ-NX10 Cassette Joint A A Y74Y93100
42	Y-74V98020	CJ-NX10 Cassette Joint for Belt drive system Y74V98020
42	Y-74Y98090	CJ-NX40 Cassette Joint Y74Y98090
43	Y-74Y98030	Inner Cable Fixing Bolt Unit A A Y74Y98030
44	Y-74Y98160	Outer Casing Holder Unit for CJ-NX40 Y74Y98160
45	Y-33F98090	Brake Arm Clip Unit (5/8") A A Y33F98090
46	Y-75M06000	Clip Bolt (M6 x 16) A A Y75M06000
47	Y-31727200	Clip Nut A A Y31727200
48	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. A A Y13098900
49	Y-30889000	TL-7S40-B Right Hand Cone Tool A A Y30889000
50	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
51	Y-00298010	WB maintenance oil set A A Y00298010
52	Y-00201000	WB maintenance oil (1L) A A Y00201000
53	Y-00201100	Bottle Y00201100
