Sram VIVID B1 (2014) Ersatzteile

VIVID B1 (2014) RockShox

Sram RockShox VIVID B1 (2014)

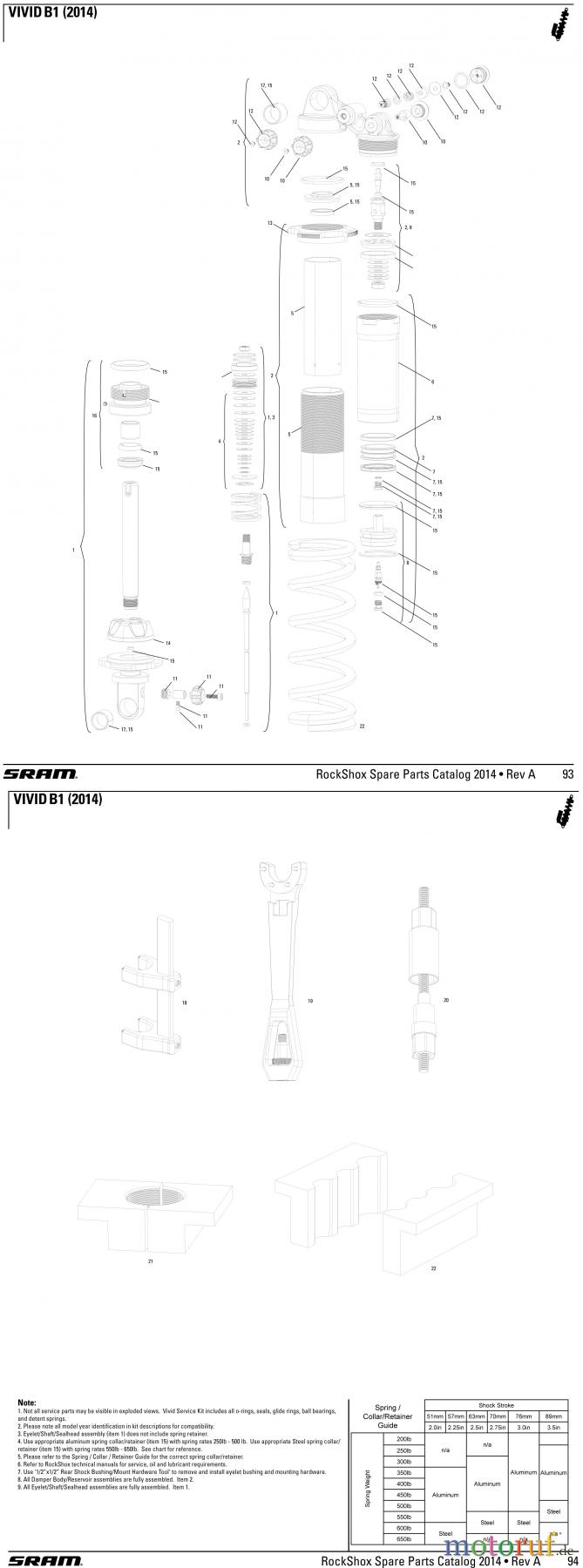

Hier finden Sie die Ersatzteilzeichnung für Sram RockShox VIVID B1 (2014). Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Sram Gerätes aus und bestellen Sie einfach online. Viele Sram Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNrArtikel NummerBezeichnung
1 11.4118.021.000Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 200x57 Low 11.4118.021.000
1 11.4118.021.001Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 200x57 Mid 11.4118.021.001
1 11.4118.021.002Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 200x57 High 11.4118.021.002
1 11.4118.021.003Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 216x63 Low 11.4118.021.003
1 11.4118.021.004Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 216x63 Mid 11.4118.021.004
1 11.4118.021.005Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 216x63 High 11.4118.021.005
1 11.4118.021.006Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 222x70 Low 11.4118.021.006
1 11.4118.021.007Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 222x70 Mid 11.4118.021.007
1 11.4118.021.008Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 222x70 High 11.4118.021.008
1 11.4118.021.009Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 240x76 Low 11.4118.021.009
1 11.4118.021.010Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 240x76 Mid 11.4118.021.010
1 11.4118.021.011Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 240x76 High 11.4118.021.011
1 11.4118.021.012Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 267x89 Low 11.4118.021.012
1 11.4118.021.013Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 267x89 Mid 11.4118.021.013
1 11.4118.021.014Eyelet/Shaft/Sealhead Assy, B1 Vivid R2C, 90 degree rebound, 267x89 High 11.4118.021.014
2 11.4118.022.000Damper Body/Reservoir Assy, 200x57 (assembled) Vivid R2C B1 11.4118.022.000
2 11.4118.022.001Damper Body/Reservoir Assy, 216x63 (assembled) Vivid R2C B1 11.4118.022.001
2 11.4118.022.002Damper Body/Reservoir Assy, 222x70 (assembled) Vivid R2C B1 11.4118.022.002
2 11.4118.022.003Damper Body/Reservoir Assy, 240x76 (assembled) Vivid R2C B1 11.4118.022.003
2 11.4118.022.004Damper Body/Reservoir Assy, 267x89 (assembled) Vivid R2C B1 11.4118.022.004
3 11.4118.023.000Tune Assy, Low, Vivid/Vivid Air R2C B1 11.4118.023.000
3 11.4118.023.001Tune Assy, Mid, Vivid/Vivid Air R2C B1 11.4118.023.001
3 11.4118.023.002Tune Assy, High, Vivid/Vivid Air R2C B1 11.4118.023.002
4 11.4118.024.000Piston Shim Stack, Low, Vivid/Vivid Air R2C B1 11.4118.024.000
4 11.4118.024.001Piston Shim Stack, Mid, Vivid/Vivid Air R2C B1 11.4118.024.001
4 11.4118.024.002Piston Shim Stack, High, Vivid/Vivid Air R2C B1 11.4118.024.002
5 11.4118.025.000Inner Tube/Rings, Shock Body (200mm) - Vivid/Vivid Air B1 11.4118.025.000
5 11.4118.025.001Inner Tube/Rings, Shock Body (216mm/222mm) - Vivid/Vivid Air B1 11.4118.025.001
5 11.4118.025.002Inner Tube/Rings, Shock Body (240mm) - Vivid/Vivid Air B1 11.4118.025.002
5 11.4118.025.003Inner Tube/Rings, Shock Body (267mm) - Vivid B1 11.4118.025.003
6 Sram Reservoir Can, Qty 1 (200/216) Vivid/Vivid Air B1 11.4118.026.000Reservoir Can, Qty 1 (200/216) Vivid/Vivid Air B1 11.4118.026.000
6 11.4118.026.001Reservoir Can, Qty 1 (222/240) Vivid/Vivid Air B1 11.4118.026.001
6 11.4118.026.002Reservoir Can, Qty 1 (267) Vivid/Vivid Air B1 11.4118.026.002
7 Sram Reservoir Internal Floating Piston Assy, Vivid/Vivid Air 11.4115.082.010Reservoir Internal Floating Piston Assy, Vivid/Vivid Air 11.4115.082.010
8 11.4115.136.000Reservoir Cap Assy (assembled) - KAGE/(Vivid/Vivid Air B1) 11.4115.136.000
9 11.4118.027.000Compression Valve Assy (assembled) - Vivid/Vivid Air B1 11.4118.027.000
10 11.4118.028.000Beginning Compression Knob Assy - Low speed Vivid/Vivid Air B1 11.4118.028.000
11 Sram Beginning Rebound Knob Assy - Low speed Vivid/Vivid Air B1 11.4118.028.001Beginning Rebound Knob Assy - Low speed Vivid/Vivid Air B1 11.4118.028.001
12 11.4118.028.002Ending Rebound Knob Assy - High speed Vivid/Vivid Air B1 11.4118.028.002
13 11.4118.029.000Threaded Spring Collar - Vivid B1 11.4118.029.000
14 11.4115.150.000Bottom Out Bumper Kage 11.4115.150.000
15 Sram Service Kit Full - Vivid B1 (Requires Counter Measure tool) 11.4118.032.000Service Kit Full - Vivid B1 (Requires Counter Measure tool) 11.4118.032.000
16 11.4118.031.000Sealhead Assy Shock Body (assembled) VIVID B1 11.4118.031.000
17 Sram Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000
18 Sram Spring Compressor Tool, Counter Measure - RockShox Vivid/Vivid Air 00.4118.045.001Spring Compressor Tool, Counter Measure - RockShox Vivid/Vivid Air 00.4118.045.001
19 Sram Spanner Wrench/Air Valve/Torx Tool - RockShox Vivid/Vivid Air 00.4315.028.010Spanner Wrench/Air Valve/Torx Tool - RockShox Vivid/Vivid Air 00.4315.028.010
20 Sram 1/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.0101/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.010
21 Sram Rear Shock Body Vise blocks, RockShox Kage/Vivid 00.4115.185.000Rear Shock Body Vise blocks, RockShox Kage/Vivid 00.4115.185.000
22 Sram Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010
ns 11.4318.003.231Decal Kit Vivid RC2 200/216/222 Black Can B1 11.4318.003.231
ns 11.4318.003.232DECAL Kit Vivid RC2 240/267 Black Can B1 11.4318.003.232
ns 11.4115.115.010Decal, Rear Shock, Tune (ML) - 2011 Vivid/Monarch Qty 10 11.4115.115.010
ns 11.4115.115.020Decal, Rear Shock, Tune (MM) - 2011 Vivid/Monarch Qty 10 11.4115.115.020
ns 11.4115.115.030Decal, Rear Shock, Tune (MH) - 2011 Vivid/Monarch Qty 10 11.4115.115.030
ns 11.4115.115.040Decal, Rear Shock, Tune (ML3) - 2011 Vivid/Monarch Qty 10 11.4115.115.040
ns 11.4115.115.050Decal, Rear Shock, Tune (MH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.050
ns 11.4115.115.060Decal, Rear Shock, Tune (LL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.060
ns 11.4115.115.070Decal, Rear Shock, Tune (LL) - 2011 Vivid/Monarch Qty 10 11.4115.115.070
ns 11.4115.115.080Decal, Rear Shock, Tune (LM) - 2011 Vivid/Monarch Qty 10 11.4115.115.080
ns 11.4115.115.090Decal, Rear Shock, Tune (LH) - 2011 Vivid/Monarch Qty 10 11.4115.115.090
ns 11.4115.115.100Decal, Rear Shock, Tune (LH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.100
ns 11.4115.115.110Decal, Rear Shock, Tune (HL) - 2011 Vivid/Monarch Qty 10 11.4115.115.110
ns 11.4115.115.120Decal, Rear Shock, Tune (HL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.120
ns 11.4115.115.130Decal, Rear Shock, Tune (HM) - 2011 Vivid/Monarch Qty 10 11.4115.115.130
ns 11.4115.115.140Decal, Rear Shock, Tune (HH) - 2011 Vivid/Monarch Qty 10 11.4115.115.140
ns 11.4115.115.150Decal, Rear Shock, Tune (HH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.150
22 Sram Spring Grey Vivid Kage 300lb 200x51/57 00.4118.026.000Spring Grey Vivid Kage 300lb 200x51/57 00.4118.026.000
22 Sram Spring Grey Vivid Kage 350lb 200x51/57 00.4118.026.001Spring Grey Vivid Kage 350lb 200x51/57 00.4118.026.001
22 Sram Spring Grey Vivid Kage 400lb 200x51/57 00.4118.026.002Spring Grey Vivid Kage 400lb 200x51/57 00.4118.026.002
22 Sram Spring Grey Vivid Kage 450lb 200x51/57 00.4118.026.003Spring Grey Vivid Kage 450lb 200x51/57 00.4118.026.003
22 Sram Spring Grey Vivid Kage 500lb 200x51/57 00.4118.026.004Spring Grey Vivid Kage 500lb 200x51/57 00.4118.026.004
22 Sram Spring Grey Vivid Kage 550lb 200x51/57 00.4118.026.005Spring Grey Vivid Kage 550lb 200x51/57 00.4118.026.005
22 Sram Spring Grey Vivid Kage 600lb 200x51/57 00.4118.026.006Spring Grey Vivid Kage 600lb 200x51/57 00.4118.026.006
22 Sram Spring Grey Vivid Kage 650lb 200x51/57 00.4118.026.007Spring Grey Vivid Kage 650lb 200x51/57 00.4118.026.007
22 Sram Spring Grey Vivid Kage 250lb 216/222x70 00.4118.026.008Spring Grey Vivid Kage 250lb 216/222x70 00.4118.026.008
22 Sram Spring Grey Vivid Kage 300lb 216/222x70 00.4118.026.009Spring Grey Vivid Kage 300lb 216/222x70 00.4118.026.009
22 Sram Spring Grey Vivid Kage 350lb 216/222x70 00.4118.026.010Spring Grey Vivid Kage 350lb 216/222x70 00.4118.026.010
22 Sram Spring Grey Vivid Kage 400lb 216/222x70 00.4118.026.011Spring Grey Vivid Kage 400lb 216/222x70 00.4118.026.011
22 Sram Spring Grey Vivid Kage 450lb 216/222x70 00.4118.026.012Spring Grey Vivid Kage 450lb 216/222x70 00.4118.026.012
22 Sram Spring Grey Vivid Kage 500lb 216/222x70 00.4118.026.013Spring Grey Vivid Kage 500lb 216/222x70 00.4118.026.013
22 Sram Spring Grey Vivid Kage 550lb 216/222x70 00.4118.026.014Spring Grey Vivid Kage 550lb 216/222x70 00.4118.026.014
22 Sram Spring Grey Vivid Kage 600lb 216/222x70 00.4118.026.015Spring Grey Vivid Kage 600lb 216/222x70 00.4118.026.015
22 Sram Spring Grey Vivid Kage 650lb 216/222x70 00.4118.026.016Spring Grey Vivid Kage 650lb 216/222x70 00.4118.026.016
22 Sram Spring Grey Vivid Kage 200lb 240x76 00.4118.026.017Spring Grey Vivid Kage 200lb 240x76 00.4118.026.017
22 Sram Spring Grey Vivid Kage 250lb 240x76 00.4118.026.018Spring Grey Vivid Kage 250lb 240x76 00.4118.026.018
22 Sram Spring Grey Vivid Kage 300lb 240x76 00.4118.026.019Spring Grey Vivid Kage 300lb 240x76 00.4118.026.019
22 Sram Spring Grey Vivid Kage 350lb 240x76 00.4118.026.020Spring Grey Vivid Kage 350lb 240x76 00.4118.026.020
22 Sram Spring Grey Vivid Kage 400lb 240x76 00.4118.026.021Spring Grey Vivid Kage 400lb 240x76 00.4118.026.021
22 Sram Spring Grey Vivid Kage 450lb 240x76 00.4118.026.022Spring Grey Vivid Kage 450lb 240x76 00.4118.026.022
22 Sram Spring Grey Vivid Kage 500lb 240x76 00.4118.026.023Spring Grey Vivid Kage 500lb 240x76 00.4118.026.023
22 Sram Spring Grey Vivid Kage 550lb 240x76 00.4118.026.024Spring Grey Vivid Kage 550lb 240x76 00.4118.026.024
22 Sram Spring Grey Vivid Kage 600lb 240x76 00.4118.026.025Spring Grey Vivid Kage 600lb 240x76 00.4118.026.025
22 Sram Spring Grey Vivid Kage 200lb 267x89 00.4118.026.026Spring Grey Vivid Kage 200lb 267x89 00.4118.026.026
22 00.4118.026.027Spring Grey Vivid Kage 250lb 267x89 00.4118.026.027
22 Sram Spring Grey Vivid Kage 300lb 267x89 00.4118.026.028Spring Grey Vivid Kage 300lb 267x89 00.4118.026.028
22 Sram Spring Grey Vivid Kage 350lb 267x89 00.4118.026.029Spring Grey Vivid Kage 350lb 267x89 00.4118.026.029
22 Sram Spring Grey Vivid Kage 400lb 267x89 00.4118.026.030Spring Grey Vivid Kage 400lb 267x89 00.4118.026.030
22 Sram Spring Grey Vivid Kage 450lb 267x89 00.4118.026.031Spring Grey Vivid Kage 450lb 267x89 00.4118.026.031
22 Sram Spring Grey Vivid Kage 500lb 267x89 00.4118.026.032Spring Grey Vivid Kage 500lb 267x89 00.4118.026.032
22 00.4118.026.033Spring Grey Vivid Kage 550lb 267x89 00.4118.026.033
22 00.4118.026.034Spring Grey Vivid Kage 225lb 267x89 00.4118.026.034
22 00.4118.026.035Spring Grey Vivid Kage 275lb 267x89 00.4118.026.035
22 00.4118.026.036Spring Grey Vivid Kage 325lb 267x89 00.4118.026.036
