Shimano BR-U8010 (-4896) CUES Disc Brake Ersatzteile

BR-U8010 (-4896) CUES Disc Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-U8010 (-4896) CUES Disc Brake

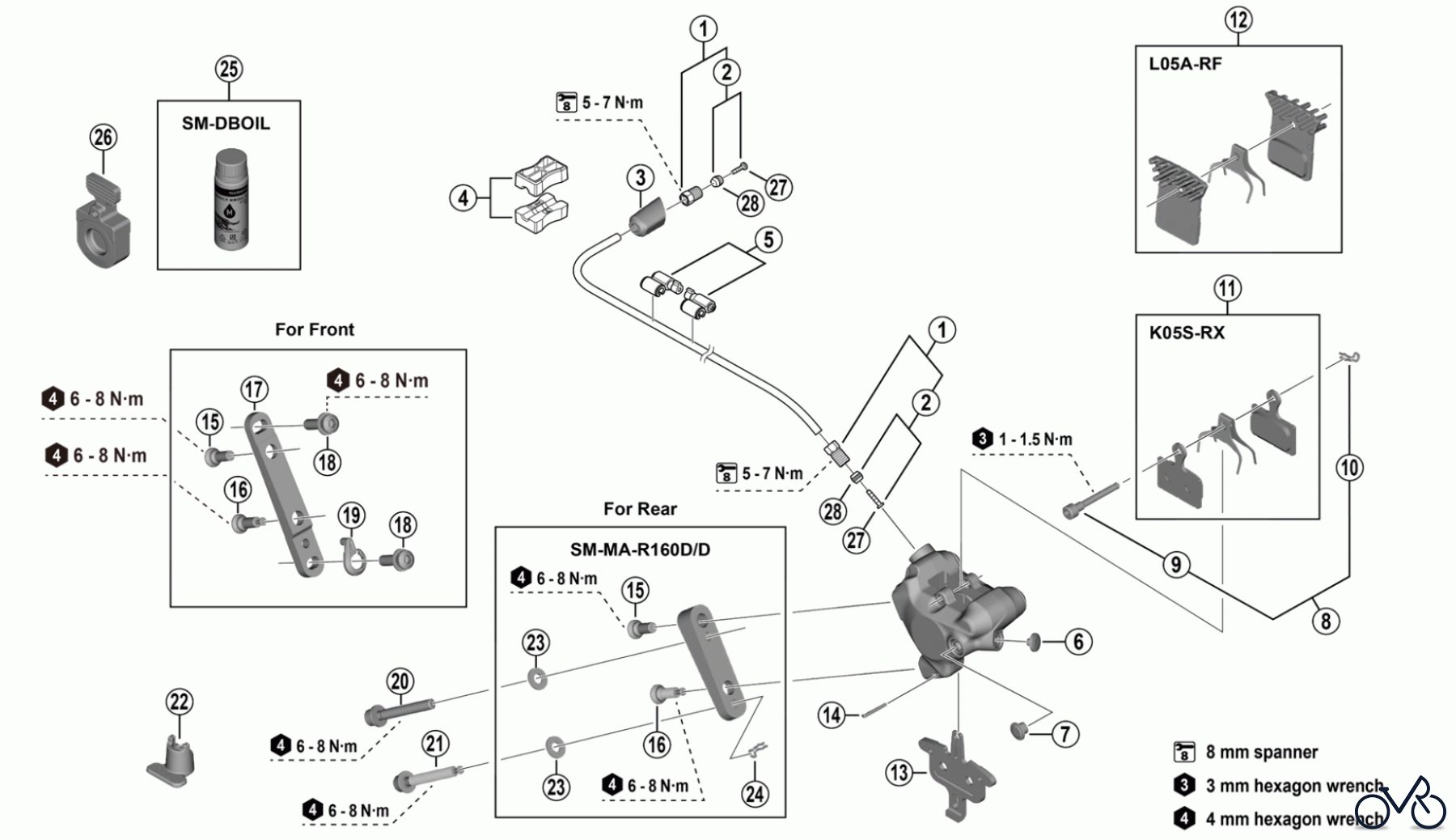

Hier finden Sie die Ersatzteilzeichnung für Shimano BR Brake - Bremse BR-U8010 (-4896) CUES Disc Brake. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNrArtikel NummerBezeichnung
1 Shimano Flare nut unit Y-8JA98010 Flare nut unit Y8JA98010
2 Shimano Olive and connecter insert Y-8JA98020 Olive and connecter insert Y8JA98020
3 Y-2R09801T Right-hand cover Y2R09801T
3 Y-2R09802T Left-hand cover Y2R09802T
4 Shimano TL-BH61 Shimano original tool (2 pcs.) Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5 Y-83098040 SM-HANG Hose supporter A and B Y83098040
6 Shimano Bleed screw cap Y-2J706000 Bleed screw cap Y2J706000
7 Shimano Bleed boss cap Y-2HW10000 Bleed boss cap Y2HW10000
8 Y-2GM98020 Pad axle and snap retainer Y2GM98020
9 Y-8EB12010 Pad axle Y8EB12010
10 Shimano Snap retainer Y-8J716000 Snap retainer Y8J716000
11 Shimano K05S-RX Resin pad and spring (pair) E-BPK05SRXA K05S-RX Resin pad and spring (pair) EBPK05SRXA
12 E-BPL05ARFA L05A-RF Resin pad with fin and spring (pair) EBPL05ARFA
13 Shimano Pad spacer Y-8N218000 Pad spacer Y8N218000
14 Shimano Screw fixing pin Y-8N207000 Screw fixing pin Y8N207000
15 Y-2HW06010 Caliper mounting screw B2 Y2HW06010
16 Shimano Caliper mounting screw B Y-8N206000 Caliper mounting screw B Y8N206000
17 Y-8N230000 Front caliper mount bracket Y8N230000
18 Shimano Caliper mounting screw Y-8N204000 Caliper mounting screw Y8N204000
19 Shimano Snap ring Y-8N205000 Snap ring Y8N205000
20 Y-2J708010 Caliper mounting screw C2 for 20 mm rear mount thickness Y2J708010
20 Y-2J708020 Caliper mounting screw C2 for 25 mm rear mount thickness Y2J708020
20 Y-2J708030 Caliper mounting screw C2 for 30 mm rear mount thickness Y2J708030
21 Shimano Caliper mounting screw C for 20 mm rear mount thickness Y-8N208010 Caliper mounting screw C for 20 mm rear mount thickness Y8N208010
21 Shimano Caliper mounting screw C for 25 mm rear mount thickness Y-8N208020 Caliper mounting screw C for 25 mm rear mount thickness Y8N208020
21 Shimano Caliper mounting screw C for 30 mm rear mount thickness Y-8N208030 Caliper mounting screw C for 30 mm rear mount thickness Y8N208030
22 Y-2HW12000 Screw length selector Y2HW12000
23 Shimano Washer for R160 adapter Y-8NU02000 Washer for R160 adapter Y8NU02000
24 Shimano Snap retainer Y-8NU03000 Snap retainer Y8NU03000
25 I-SMDBOIL01O SM-DBOIL SHIMANO hydraulic mineral oil (100 ml) ISMDBOIL01O
25 I-SMDBOIL01M SM-DBOIL SHIMANO hydraulic mineral oil (100 ml) for EU countries ISMDBOIL01M
26 Y-2HW15000 Bleed spacer Y2HW15000
27 Y-8JA98026 Connecting insert (100 pcs.) Y8JA98026
28 Y-8H298047 Olive (100 pcs.) Y8H298047
