Shimano ST-U6030 (-5092) CUES DUAL CONTROL LEVER (For Disc Brake) (2x11/10-speed) Ersatzteile

ST-U6030 (-5092) CUES DUAL CONTROL LEVER (For Disc Brake) (2x11/10-speed) ST Rapidfire- Schaltbremshebel

Shimano ST Rapidfire- Schaltbremshebel ST-U6030 (-5092) CUES DUAL CONTROL LEVER (For Disc Brake) (2x11/10-speed)

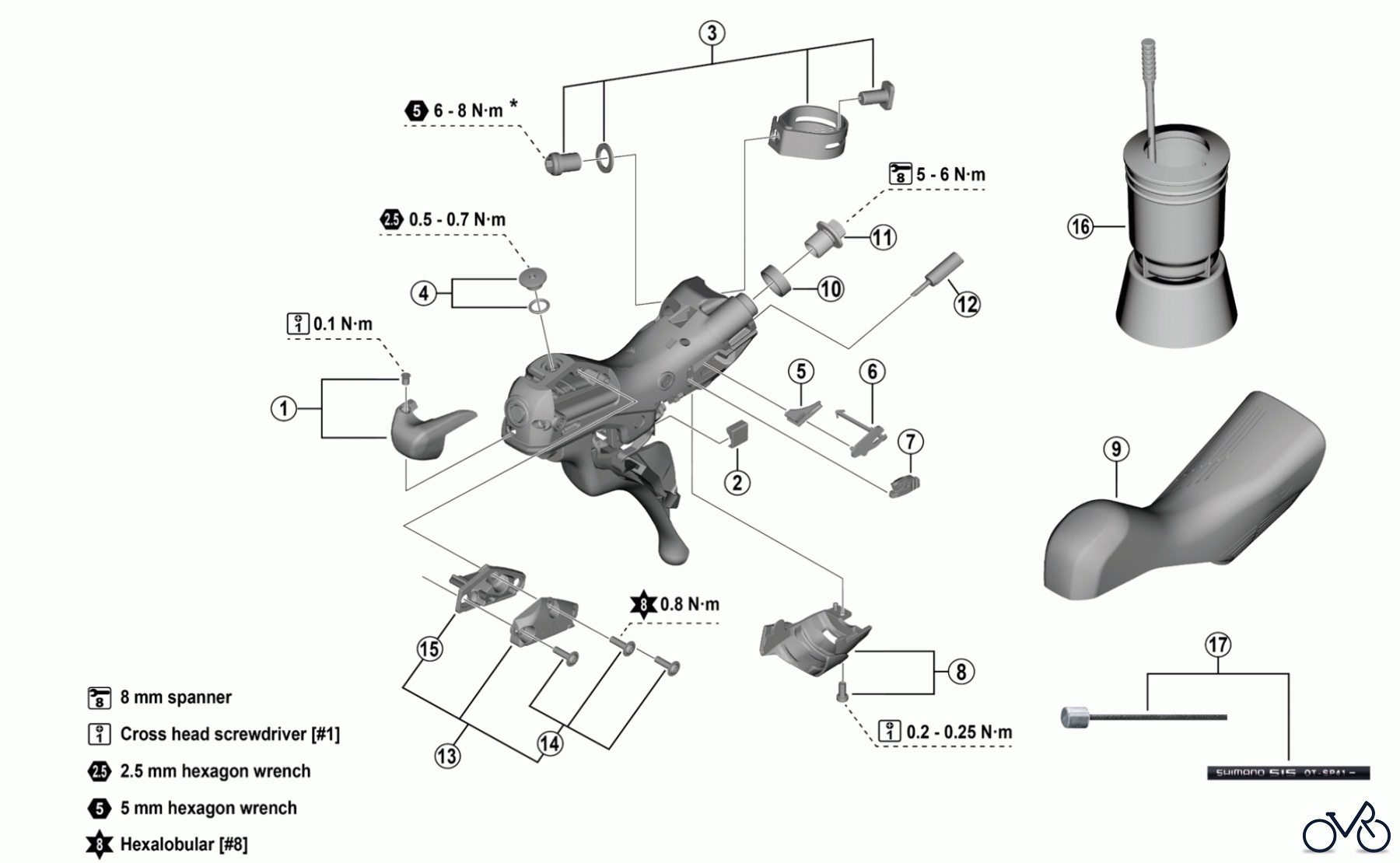

Hier finden Sie die Ersatzteilzeichnung für Shimano ST Rapidfire- Schaltbremshebel ST-U6030 (-5092) CUES DUAL CONTROL LEVER (For Disc Brake) (2x11/10-speed). Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
1	Y-0TU98020	Name plate R and fixing screw Y0TU98020
1	Y-0TV98010	Name plate L and fixing screw Y0TV98010
2	Y-05T00140	Main lever support R Y05T00140
2	Y-05U00100	Main lever support L Y05U00100
3	Y-0E098030	Clamp band unit diameter (23.8 - 24.2 mm) Y0E098030
4	Y-0F398030	Bleed screw and O-ring Y0F398030
5	Y-0TU9801T	SL cable guide R Y0TU9801T
5	Y-07V75000	SL cable guide L Y07V75000
6	0-TU9802T	SL cable cover R 0TU9802T
6	Y-0C574000	SL cable cover L Y0C574000
7	Y-0TU9803T	Speed selector Y0TU9803T
8	Y-0TU98030	Unit cover R and fixing screw Y0TU98030
8	Y-0TV98020	Unit cover L and fixing screw Y0TV98020
9	Y-0TU98010	Bracket covers (pair) Y0TU98010
10	Y-0RM9801T	Joint support ring Y0RM9801T
11	Y-8RD02000	Flange flare nut (M9/black) Y8RD02000
12	Y-63Z27000	Outer cap with short tongue for ST Y63Z27000
13	Y-0SD98010	Right-hand lid unit for bracket with bosses Y0SD98010
13	Y-0SE98010	Left-hand lid unit for bracket with bosses Y0SE98010
14	Y-0SD98020	Lid fixing screw (3 pcs.) for bracket with bosses Y0SD98020
15	Y-0C678000	Diaphragm R Y0C678000
15	Y-0C578000	Diaphragm L Y0C578000
16	Y-13000090	TL-BR002 Funnel unit for M7 screw Y13000090
17	Y-60198090	OT-SP41 OPTISLICK shifting cable sets (Black) for front double bike Y60198090
17	Y-60198092	OT-SP41 OPTISLICK shifting cable sets (Black) for front single bike Y60198092
