Sram REBA-12 Boost - A5-A9 (2016-2025) Ersatzteile

REBA-12 Boost - A5-A9 (2016-2025) RockShox

FS-REBA-12B-A5, FS-REBA-12B-A6, FS-REBA-12B-A7, FS-REBA-12B-A8, FS-REBA-12B-A9

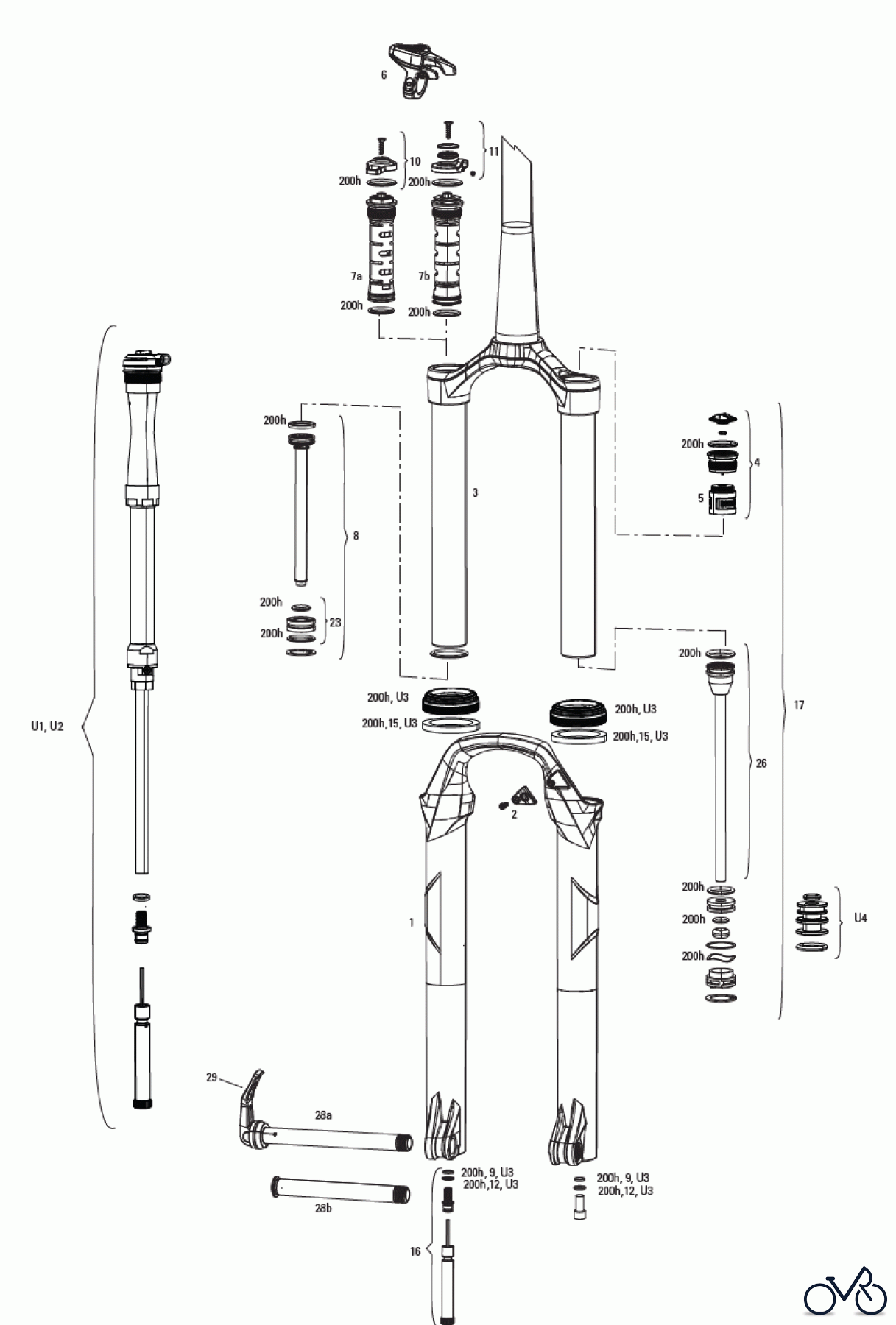

Hier finden Sie die Ersatzteilzeichnung für Sram RockShox REBA-12 Boost - A5-A9 (2016-2025). Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Sram Gerätes aus und bestellen Sie einfach online. Viele Sram Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
U1	00.4018.783.011	DAMPER UPGRADE KIT - CHARGER RLC,120 MAX TRAVEL, REMOTE(INCLUDES RIGHT SIDE INTERNALS, ONELOCREMOTE)-SID27/29(A2-A4/2012-2016),SID120(B1-B4/2020,REBA-12 A1-A9(2012-2025)/BLUTOA1+ 00.4018.783.011
U2	00.4018.783.003	DAMPER UPGRADE KIT - CHARGER2 RLC CROWN 120MM MAX TRAVEL (RIGHT SIDE INTERNALS) - SID27/29(A2-A4/2012-16),SID120(B1-B4/2020, REBA-12 A1-A9(2012-2025)/BLUTO A1+ 00.4018.783.003
U3	00.4318.045.003	FORK DUST WIPER UPGRADE KIT - 32MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM FOAM RINGS) - REBA/BLUTO/RS-1/SID B1 (2017+)/32MM BOOST™ FORKS 00.4318.045.003
U4	11.4018.096.002	FORK SPRING SEALHEAD - 32MM DEBONAIR BLACK (REPLACES FLOATING SEALHEAD, BASEPLATE, WAVE WASHER) SID A1-A4(2011-2016),REBA-10/REBA-12/REBA-15 A2-A9(2013-2025),BLUTO A1+(2015+) 11.4018.096.002
200h	00.4315.032.632	200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - REBA-10 BOOSTA7-A9/REBA-10 NONBOOST A7-A8, REBA-12 BOOST A5-A9(2017-2025) 00.4315.032.632
ns	00.4315.032.611	AM FORK SERVICE KIT BASIC (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - REBA-12BOOST A5-A6(2016-2017) 00.4315.032.611
LOWER	LEGS	- BOOST LEGS
1	11.4018.006.231	FORK LOWER LEG - (DECALS NOT INCLUDED) 29 15X110 BOOST™ BLACK - SID A1-A4 (2011-2016),REBA-12B A5-A9(2016-2025) SID SELECT/SELECT+ 110-120MM B4 (2020+) 11.4018.006.231
1	11.4018.006.233	FORK LOWER LEG - (DECALS NOT INCLUDED) 29 15X110 BOOST™ DIFFUSION BLACK - SID A1-A4 (2011-2016), REBA-12B A5-A9(2016-2025), SID SELECT/SELECT+ 110-120MM B4 (2020+) 11.4018.006.233
2	11.4015.534.010	FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010
CSU	-	BOOST
3	11.4018.008.540	FORK CSU - SOLO AIR 27 BOOST™ 15X110 120MM MAX ALUMINUM TAPER BLACK (NO GRADIENTS) - REBA-12B A5-A9(2016-2025) 11.4018.008.540
3	11.4018.008.546	FORK CSU - SOLO AIR 29 BOOST™ 15X110 120MM MAX ALUMINUM TAPER BLACK (NO GRADIENTS) - REBA-12B A5-A9(2016-2025) 11.4018.008.546
3	11.4018.008.548	FORK CSU - SOLO AIR 29 BOOST™ 15X110 120MM MAX ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - REBA-12B A5-A9(2016-2025) 11.4018.008.548
4	11.4018.012.011	FORK SPRING AIR TOP CAP - 32MM SPLINE (INCLUDES TOP CAP, VALVE COVER, USES CASSETTE TOOL) - SID B1-B4 (2017-2020),SID SL C1+ (2021+),REBA-10/REBA-12/REBA-15 A2-A8(2018-2025) 11.4018.012.011
4	11.4018.012.006	FORK SPRING AIR TOP CAP - 32MM (ALUMINUM UPPER TUBES ONLY, BOTTOMLESS TOKEN COMPATIBLE) - REBA-12 A1-A6/SIDA1-A4/REVELATION A1-A4/RS-1 A+/BLUTO A1+/ARGYLE A1+ 11.4018.012.006
4	11.4018.032.002	FORK SPRING AIR TOP CAP - 32MM SOLO AIR/DEBONAIR (INCLUDES 5 TOKENS, INTERNALLY THREADED AIR CAP) REBA/SID/REVELATION/RS-1/BLUTO/ARGYLE RCT 11.4018.032.002
5	11.4018.032.003	FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003
ns	11.4308.327.002	AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002
17	11.4018.010.230	FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A7-A9(2018-2025) 11.4018.010.230
17	11.4018.010.046	FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 BLACK (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6/SIDB A2-A4 11.4018.010.046
17	11.4018.010.119	FORK SPRING SOLO AIR ASSEMBLY - 110MM-29 (INCLUDES TOP CAP, 1 BOTTOMLESS TOKEN, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6,SID A1-A4 (2011- 2016) 11.4018.010.119
17	11.4018.010.120	FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5/29 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, SOLO AIR SPRING, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.120
17	11.4018.010.056	FORK SPRING SOLO AIR ASSEMBLY - 120MM-26 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6/SIDB A2-A4 11.4018.010.056
17	11.4018.010.125	FORK SPRING SOLO AIR ASSEMBLY - 100MM-26 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.125
17	11.4018.010.121	FORK SPRING SOLO AIR ASSEMBLY - 95MM-29 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.121
17	11.4018.010.122	FORK SPRING SOLO AIR ASSEMBLY - 90MM-29 (INCLUDES TOP CAP, 3 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.122
17	11.4018.021.000	FORK SPRING SOLO AIR SHAFT - 120MM-27.5"/(29"A3+) NOT COMPATIBLE WITH PRE 2014/A3 29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.000
26	11.4018.021.001	FORK SPRING SOLO AIR SHAFT - 110MM-27.5"/29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.001
26	11.4018.021.002	FORK SPRING SOLO AIR SHAFT - 100MM-27.5"/29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.002
26	11.4018.021.005	FORK SPRING SOLO AIR SHAFT - 120MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26")/REBA-12 A2-A6, RS-1 11.4018.021.005
26	11.4018.021.007	FORK SPRING SOLO AIR SHAFT - 100MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26"), REBA-12 A2-A6, RS-1 11.4018.021.007
26	11.4018.021.009	FORK SPRING SOLO AIR SHAFT - 80MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26"),REBA-12 A2-A6, RS-1 11.4018.021.009
6	00.4318.002.009	REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.009
6	00.4318.002.010	REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.010
ns	00.4318.079.000	Remote - TwistLoc Ultimate Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Textured Grips) - 2 Position Remote Forks and Shocks B1 00.4318.079.000
ns	00.4318.059.000	Remote - TwistLoc Base Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Grips) - 2 Position Remote Forks and Shocks B1 00.4318.059.000
7a	11.4015.544.330	FORK COMPRESSION DAMPER - CROWN, MOCO RL (INCLUDES COMPRESSION KNOB, SCREW) - BLUTO A1,RREBA-10/REBA-12 A5-A9(2018-2025) 11.4015.544.330
7b	11.4015.544.420	FORK COMPRESSION DAMPER - REMOTE 10MM (2013+ PUSHLOC, ONELOC, TWISTLOC) MOCO (INCLUDES SPOOL, CABLE CLAMP, SCREW),REBA-10/REBA-12 A6-A9(2018-2025) 11.4015.544.420
10	11.4015.461.010	FORK COMPRESSION DAMPER KNOB KIT - CROWN MOCO (INCLUDES SCREW) - REBA-12 A1-A6(2011-2016)/RECON, SEKTOR GOLD (2011-2016) 11.4015.461.010
11	11.4015.461.020	FORK COMPRESSION DAMPER KNOB KIT - REMOTE 10/17MM TK/MOCO (INCLUDES SPOOL, CABLE STOP, SCREW) - REBA-12 A1-A6(2011-2016)/RECON, SEKTOR GOLD (2011-2016) 11.4015.461.020
8	11.4018.025.011	FORK REBOUND DAMPER - (INCLUDES SHAFT BOLT, SEALHEAD) - RAPID RECOVERY REBA 27/29 A5, BLUTO26 A1-A3, REBA-10/REBA-12 A5-A9(2016-2025) 11.4018.025.011
23	11.4015.353.010	FORK DAMPER SEALHEAD ASSEMBLY - MOCO 32MM - SIDA 2009-2014, SIDB 2011-2013, REBA-12 A1-A6(2011-2017), REVELATION 2009-2013, BLUTO RL A1-A5 11.4015.353.010
9	11.4015.259.000	FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
12	11.4015.260.000	FORK CRUSH WASHER RETAINER - 8MM (QTY 50) 11.4015.260.000
15	11.4018.028.015	FORK FOAM RING KIT - 32MM X 4MM (QTY 20) - SID RLC A1/SID XX/RL B1 (2017+)/RECON BOOST RL C1/TK B1 (2020+),(REBA-10/REBA-12/REBA-15 BOOST) 11.4018.028.015
16	11.4015.293.000	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 2008-2016 SID/REBA-12 A1-A6(2011-2016) 11.4015.293.000
16	11.4018.082.014	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) 29 REBA-10/REBA-12/REBA-15 A7-A9,SID B2-B4(2017-2020),SID SELECTC1/SID SL SELECTC1/SID RLC3(2021)/SID BASE C1+(2022+) 11.4018.082.014
16	11.4018.082.015	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 27.5 - SID B2+ (2017+),REBA-10/REBA-12/REBA-15 A7-A9(2018-2025) 11.4018.082.015
ns	11.4118.107.000	SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
28a	00.4318.005.004	AXLE MAXLE LITE FRONT, 15X110, LENGTH 158MM, THREAD LENGTH 9MM, THREAD PITCH M15X1.50 BOOST COMPATIBLE 00.4318.005.004
28b	00.4318.005.019	AXLE MAXLE STEALTH FRONT, 15X110, LENGTH 158MM, THREAD LENGTH 9MM, THREAD PITCH M15X1.50 - BOOST COMPATIBLE 00.4318.005.019
29	11.4318.004.001	AXLE MAXLE - LITE 15MM XC LEVER ASSEMBLY 11.4318.004.001
ns	00.4318.031.000	FORK LOWER LEG DUST SEAL INSTALLATION TOOL 32MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.031.000
ns	00.4318.012.003	FORK TOP CAP/CASSETTE TOOL (FOR SRAM/SHIMANO CASSETTES) - PIKE, LYRIK, ZEB, BOXXER, SID, REVELATION, REBA, AND PARAGON FORKS 00.4318.012.003
ns	00.4318.018.000	ROCKSHOX SUSPENSION CLEANER 16.9 OZ. (FOR USE WITH ALL SUSPENSION PRODUCTS) 00.4318.018.000
ns	00.4315.023.010	HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns	00.4315.022.010	REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns	11.4315.021.020	ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020
ns	11.4015.354.010	ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010
ns	11.4315.021.040	ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040
ns	11.4015.354.030	ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030
ns	00.4318.008.000	GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.000
ns	00.4318.008.001	GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.001
