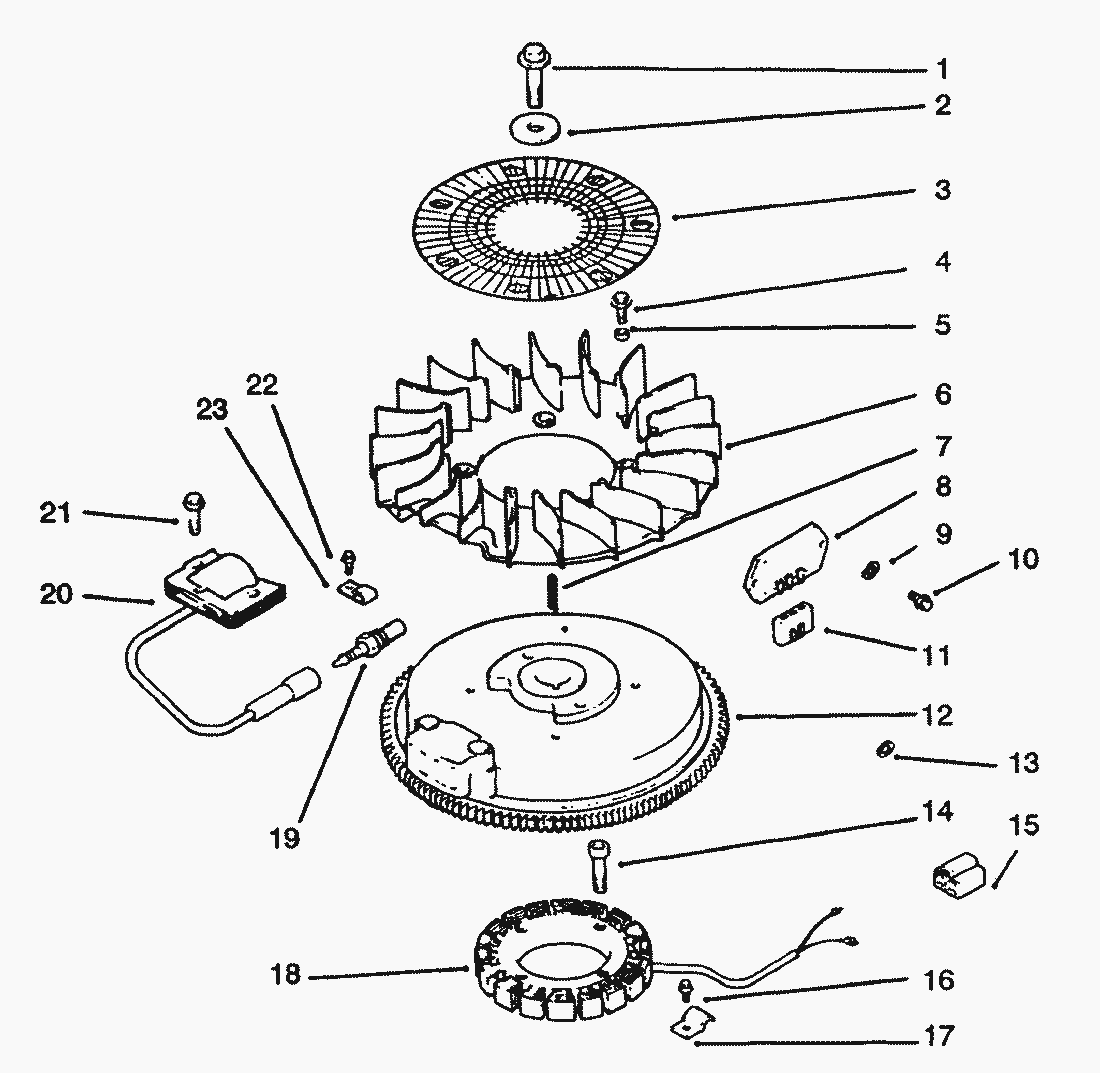

Ersatzteillisten für Toro Roth / TORO Zündung, Elektrik




Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
1Screw-Flywheel Mounting (Only On: 72042, 72063, 72062, 72043)12 086 14
2Scheibe12 468 03
3Schutzgitter24 162 03
4Screw M6x1.0x16 (Only On: 72042, 72063, 72062, 72043)M-0639016
5Spacer-Fan (Only On: 72042, 72063, 72062, 72043)12 112 01
6Luefter12 157 02
7KeilX-42-15
8Laderegler41 403 09
9Washer-Lock (Only On: 72042, 72063, 72062, 72043)X-22-11
10Screw M6x1.0x16 (Only On: 72042, 72063, 72062, 72043)M-0639016
11Verbindungsstecker236602
12Flywheel ASM (Only On: 72042, 72063, 72062, 72043)12 025 16
13Washer-Flat (Only On: 72042, 72063, 72062, 72043)X-25-5
14Screw M5x0.8x25 (Only On: 72042, 72063, 72062, 72043)M-0548025
15Connector-5 Contact (Only On: 72042, 72063, 72062, 72043)48 155 01
16SchraubeM-0545010
17Clip-Stator Harness (Only On: 72042, 72063, 72062, 72043)12 154 02
18Ladespule24 085 01
19Spark Plug (Only On: 72042, 72063, 72062, 72043)12 132 02
20Module-Ignition (Only On: 72042, 72063, 72062, 72043)12 584 01
21SchraubeSM-0545020
22SchraubeM-0545010
23RohrschelleX-728-1
Lead-White (Only On: 72042, 72063, 72062, 72043)12 518 01
Lead-Green (Only On: 72042,72063, 72062, 72043)15 518 09
Lead-Black (Only On: 72042. 72063. 72062. 72043)25 518 05
