> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 1028 PowerShift > 635/38555 > 890000001 > Tecumseh Motor (Modell HMSK100-159227W)

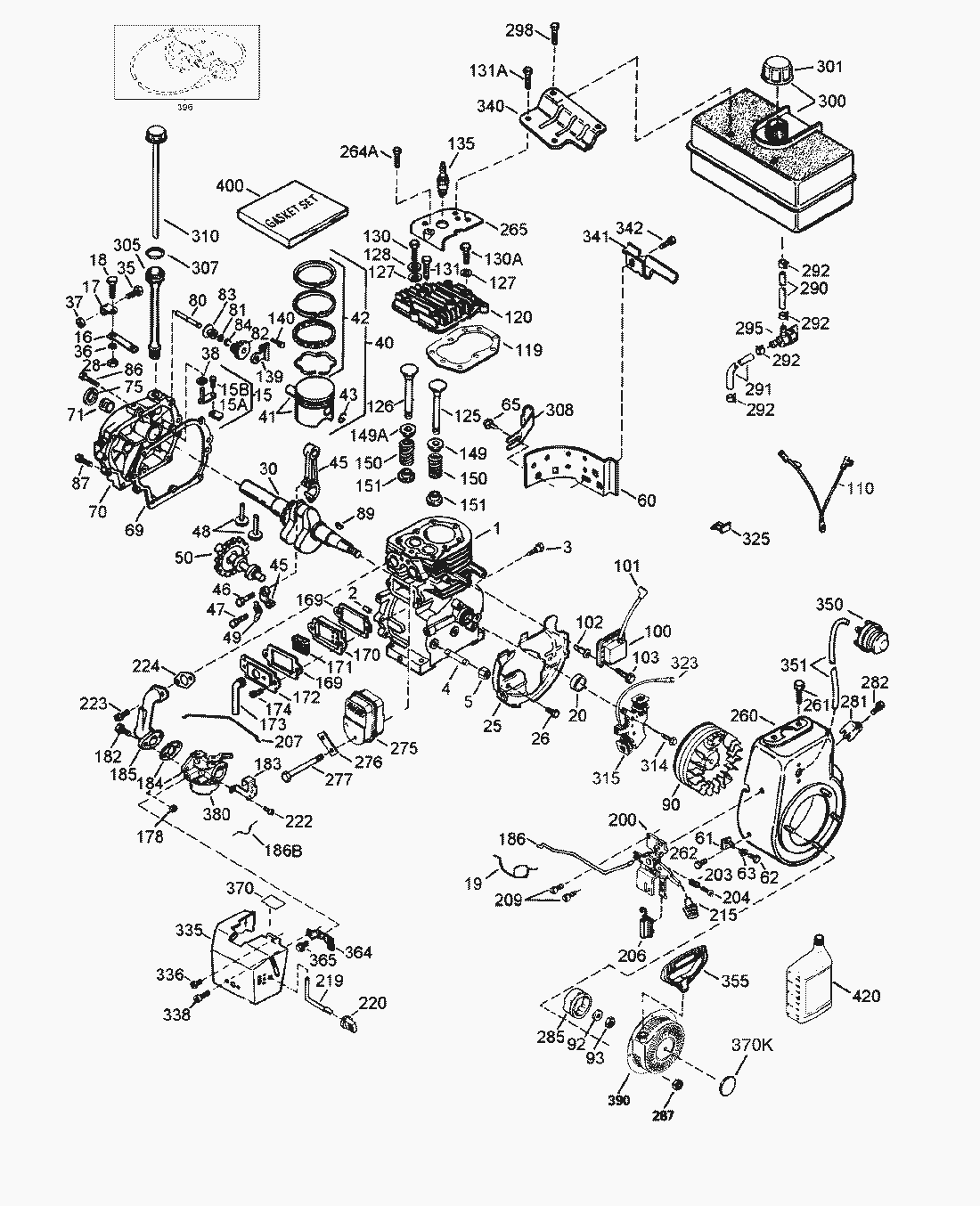

Ersatzteillisten für Toro Roth / TORO Tecumseh Motor (Modell HMSK100-159227W)

Pos.	Bezeichnung	Ersatzteilnummer
2	Haltedorn	27652
3	Schraube	650820
5	Verschlusskappe s	30969
15	Klemme s	30700
15	Screw, Fil. Hd.	650494
16	Hebel	33454
17	Clamp, Governor Lever	29916
18	Screw	651028
19	Feder	34663
20	Simmerring	35319
25	Blower Housing Baffle	36460
26	Schraube	650561
28	Locknut, Hex	30322
30	Crankshaft	35571A
35	Schraube	29826
36	Lockwasher, E.T.	29918
37	Mutter	29216
38	Ring, Retaining	29642
41	Kolben	35773
42	Kolbenring-Satz	35779
	Ring Set, Piston (.010 oversize)	35780
	Ring Set, Piston (.020 oversize)	35781
43	Retaining Ring, Piston Pin	35772
45	Pleuel s	36898
47	Connecting Rod Bolt	651033
48	Ventilstoessel	34034
49	Oil Dipper	36896
50	Nockenwelle	35375
60	Extension, Blower Housing	33273A
61	Bracket, Grommet Mounting	34126
62	Schraube	650760
63	Grommet, Plastic	28545
65	Schraube	650128
69	Cylinder Cover Gasket	35262A
70	Oelwanne	35376
71	Bushing, Crankshaft	35377
72	Oelablass-Schraube	27642
75	Simmerring	35319
80	Reglerachse	31845
81	Washer, Flat	30590A
83	Spool, Governor	30588A
84	Sicherungsring	29193
86	Screw, Hex Washer Hd.	650833
87	Screw, Hex Washer Hd.	650832
89	Keil	32589
90	Schwungrad	611093
92	Washer, Lock	650880
93	Nut, Flywheel	650881
100	Zuendspule s	35135
101	Cover, Spark Plug	610118
102	Solid State Mounting Stud	651024
103	Screw, Torx T-15	651007
110	Wire, Ground	35253
119	Zylinderkopfdichtung	36451
120	Zylinderkopf	36449
127	Washer, Flat	650691
128	Washer-Belleville	650690
130	Screw, Hex Flange Hd.	6021A
130	Screw, Special Hex Hd. Tapped	650727
131	Screw, Hex Flange Hd.	650694A
131	Schraube	650713
135	Spark Plug, Resistor (Champion RJ-19LM)	35395
139	Bracket, Governor Gear	33369
140	Screw, Hex Washer Hd. Thread Forming	650836
149	Federteller	27882
149	Dichtung	35862
150	Spring, Valve	27881
151	Ventilteller	32581
169	Gasket-Breather	27896A
170	Ventildeckeleinsatz	28423
171	Filter	28424
172	Entluefterdeckel	28425
173	Entlueftungsschlauch	35350
174	Schraube	650128
178	Nut & Lockwasher	29752
182	Screw, Fil. Hd.	30088A
183	Bracket-Choke	34587A
184	Dichtung	33263
185	Pipe, Intake	33877
186	Gestaenge	34667
186	Feder	36652
200	Reglerplatte	34677
203	Druckfeder	31342
204	Screw	651029
206	Kurzschlusschalter	610973
207	Gestaenge	33878
209	Screw, Hex Washer Hd. Thread Cutting	650821
215	Knopf	35440
219	Rod, Choke	34586
220	Knopf	35438
222	Schraube	28820
223	Schraube	650378
224	Gasket-Intake Pipe	27915A
260	Housing-Blower	35447A
261	Screw, Hex Hd. Spinlock Thread Forming	650788
262	Screw, Phil. Hex Hd.	29747B
264	Schraube	650802
265	Cover-Cylinder Head	33272B
275	Auspuff	35056
276	Platte	31588
277	Schraube	651002
281	Cover, Starter Bubble	33013
282	Schraube	650760
285	Starter Cup	35985B
287	Nut & Lockwasher	29752
290	Leitung	29774
291	Benzinleitung	30705
292	Klemme F.Benzinl.	26460
295	Anschluss	35857
298	Schraube s	650665
301	Tankdeckel	36246
305	Oelrohr	35554
306	O.Ring	35499
308	Clip, Fill Tube	35540
310	Oelmesstab	36205
314	Screw-Hex. Hd.	650873
316	Lichtspulee	611111
323	Kurzschlus-Schalter	611118
325	Klemme	29443
327	Deckel s	35392
335	Cover-Carburetor	35057A
336	Schraube	650765
338	Schraube	28942
340	Bracket, Fuel Tank Mounting	34155
341	Tankhalter s	34154
342	Schraube	650561
350	Primer Assy.	570682
351	Line-Primer	32180C
355	Startergriff	590574
364	Bracket, Carburetor Cover Mounting	33377
365	Screw, Hex Washer Hd., Taptite	650767
370	Decal-Lubrication	36261
390	Ruecklaufstarter s	590733
396	Electric Starter Motor (Optional)	33329D
400	Gasket Set (Incl. items marked *)	36452A
420	Oel Fuer Schneefr.Sae5w30	730226

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer
	Fuel Tank Assy. (Incl. Ref.	34156A
	Piston, Pin & Ring Assy. .020 oversize(Includes ref.	35778
	Piston, Pin & Ring Assy. .010 oversize(Includes ref.	35777
	Carburetor (Incl. Ref.	640054
	Cylinder (Incl. ref.	35371
	Piston & Pin Assembly .020 oversize (Incl. ref.	35775
	Valve, Exhaust (Std.) (Incl. Ref.	27878A
	Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.	27880A
	Piston & Pin Assembly .010 oversize (Incl. ref.	35774
	Piston, Pin & Ring Assy. Std.(Includes ref.	35776
	Rod Assy., Governor (Incl. Ref.	30699C
	Valve, Intake (1/32 Oversize) (Incl. Ref. #47) 43 50 2_227012 1 38080 Valve, Intake (1/32 Oversize) (Incl. Ref.	34036
	Valve, Intake (Std.) (Incl. Ref.	34035
	Gear Assy., Governor (Incl. Ref.	35378
