> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 824 > 612/38080 > 2000001 > Motor Tecumseh (Modell-Nr. HM80-155438 P)

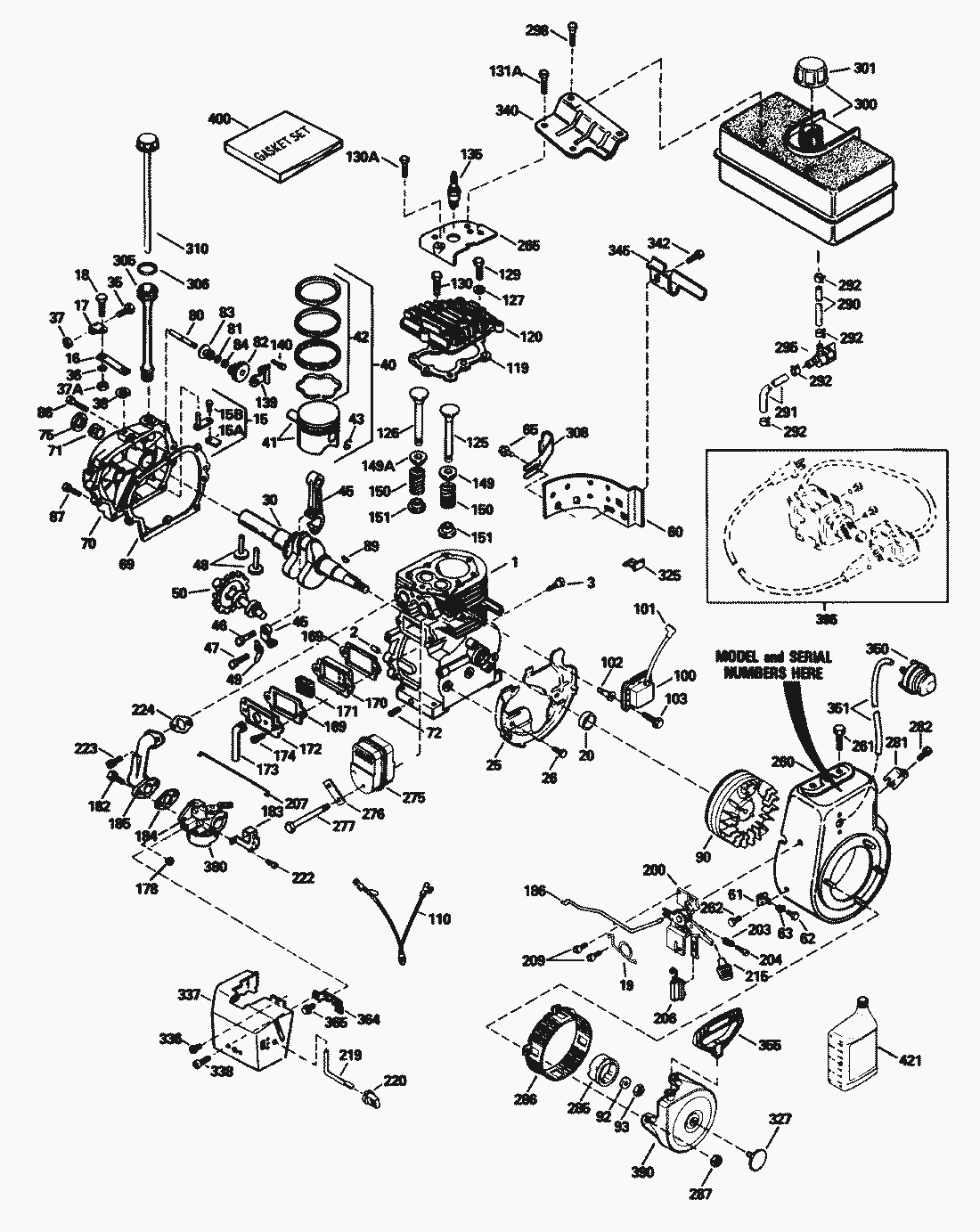

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell-Nr. HM80-155438 P)




Pos.BezeichnungErsatzteilnummer
Fuel Tank Assy. (Incl. Ref.34156A
Carburetor Assembly (Incl.Gasket632334A
Piston, Pin & Ring Assy. (Incl. Ref.34553
Cylinder Assy. (lncl. Ref.35385
Valve, Exhaust (Std.) (Incl. Ref.27878A
Piston & Pin Assy. (Incl. Ref.34330A
Connecting Rod Assy. (Incl. Ref.35373A
Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.27880A
Piston & Pin Assy. (Incl. Ref.34331A
Piston & Pin Assy. (Incl. Ref.34329A
Piston, Pin & Ring Assy. (Incl. Ref.34554
Rod Assy., Governor (Incl. Ref.30699C
Valve, Intake (1/32 Oversize) (Incl. Ref. #47) 43 50 2_227012 1 38080 Valve, Intake (1/32 Oversize) (Incl. Ref.34036
Gear Assy., Governor (Incl. Ref.35378
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Haltedorn27652
3Schraube650820
15Klemme s30700
15Screw, Fil. Hd.650494
16Hebel33454
17Clamp, Governor Lever29916
18Screw, Hex Washer Hd.650548
19Feder34663
20Simmerring35319
25Baffle, Blower Housing35326
26Schraube650561
30Kurbelwelle35372
35Schraube29826
36Lockwasher, E.T.29918
37Mutter29216
37Locknut, Hex30322
38Ring, Retaining29642
40Kolben Kompl+Ringe34552
42Ring Set, Piston (Std.)34332
42Ring Set, Piston (.010 Oversize)34333
42Ring Set, Piston (.020 Oversize)34334
43Kolbenbolzensicher.27888
46Bolt-Connecting Rod650908
47Screw, Connecting Rod650882
48Ventilstoessel34034
49Oelschleuder35374
50Nockenwelle35375
60Extension, Blower Housing33273A
61Bracket, Grommet Mounting34126
62Schraube650760
63Grommet, Plastic28545
65Schraube650128
69Dichtung35262
70Oelwanne35376
71Bushing, Crankshaft35377
72Oelablass-Schraube27642
75Simmerring35319
80Reglerachse31845
81Washer, Flat30590A
83Spool, Governor30588A
84Sicherungsring29193
86Screw, Hex Washer Hd.650833
87Screw, Hex Washer Hd.650832
89Keil32589
90Schwungrad611091
92Washer, Lock650880
93Nut, Flywheel650881
100Zuendspule s35135
101Cover, Spark Plug610118
102Stehbolzen650872
103Schraube650814
110Wire, Ground35253
119Gasket-Cylinder Head34041A
120Head, Cylinder34030
126Valve, Intake (Std.) (Incl. Ref.34035
127Washer, Flat650691
129Screw, Special Hex Hd. Tapped650727
130Screw, Hex Flange Hd.6021A
130Schraube650802
131Schraube650713
135Spark Plug, Resistor (Champion RJ-19LM)35395
139Bracket, Governor Gear33369
140Screw, Hex Washer Hd. Thread Forming650836
149Federteller27882
149Dichtung35862
150Spring, Valve27881
151Ventilteller32581
169Gasket-Breather27896A
170Ventildeckeleinsatz28423
171Filter28424
172Entluefterdeckel28425
173Entlueftungsschlauch35350
174Schraube650128
178Nut & Lockwasher29752
182Screw, Fil. Hd.30088A
183Halter34587
184Dichtung33263
185Pipe, Intake33877
186Gestaenge34667
200Reglerplatte34677
203Druckfeder31342
204Screw, Fil. Hd.650549
206Kurzschlusschalter610973
207Gestaenge33878
209Screw, Hex Washer Hd. Thread Cutting650821
215Knopf35440
219Rod, Choke34586
220Knopf35438
222Schraube28820
223Schraube650378
224Gasket-Intake Pipe27915A
260Housing, Blower34822A
261Screw, Hex Hd. Spinlock Thread Forming650788
262Screw, Phil. Hex Hd.29747B
265Cover, Cylinder Head33272A
275Auspuff35056
276Platte31588
277Schraube792093
281Cover, Starter Bubble33013
282Schraube650760
285Mitnehmerglocke35287
286Screen, Starter35446
287Nut & Lockwasher29752
290Leitung29774
291Benzinleitung30705
292Klemme F.Benzinl.26460
295Anschluss35857
298Schraube s650665
301Tankverschluss35355
305Oelrohr35554
306O.Ring35499
308Clip, Fill Tube35540
310Oelmessstab35555
325Klemme29443
327Deckel s35392
336Schraube650765
337Cover-Carburetor35057A
338Schraube28942
340Bracket, Fuel Tank Mounting34155
342Schraube650561
345Tankhalter s34154
350Primer Assy.570682
351Line-Primer32180C
355Startergriff590574
364Bracket, Carburetor Cover Mounting33377
365Screw, Hex Washer Hd., Taptite650767
390Ruecklaufstarter590630
395Motor Kit-Electric Starter (120 Volt) (Order as an accessory)33329C
400Gasket Set33279G
421Oel Fuer Schneefr.Sae5w30730226
