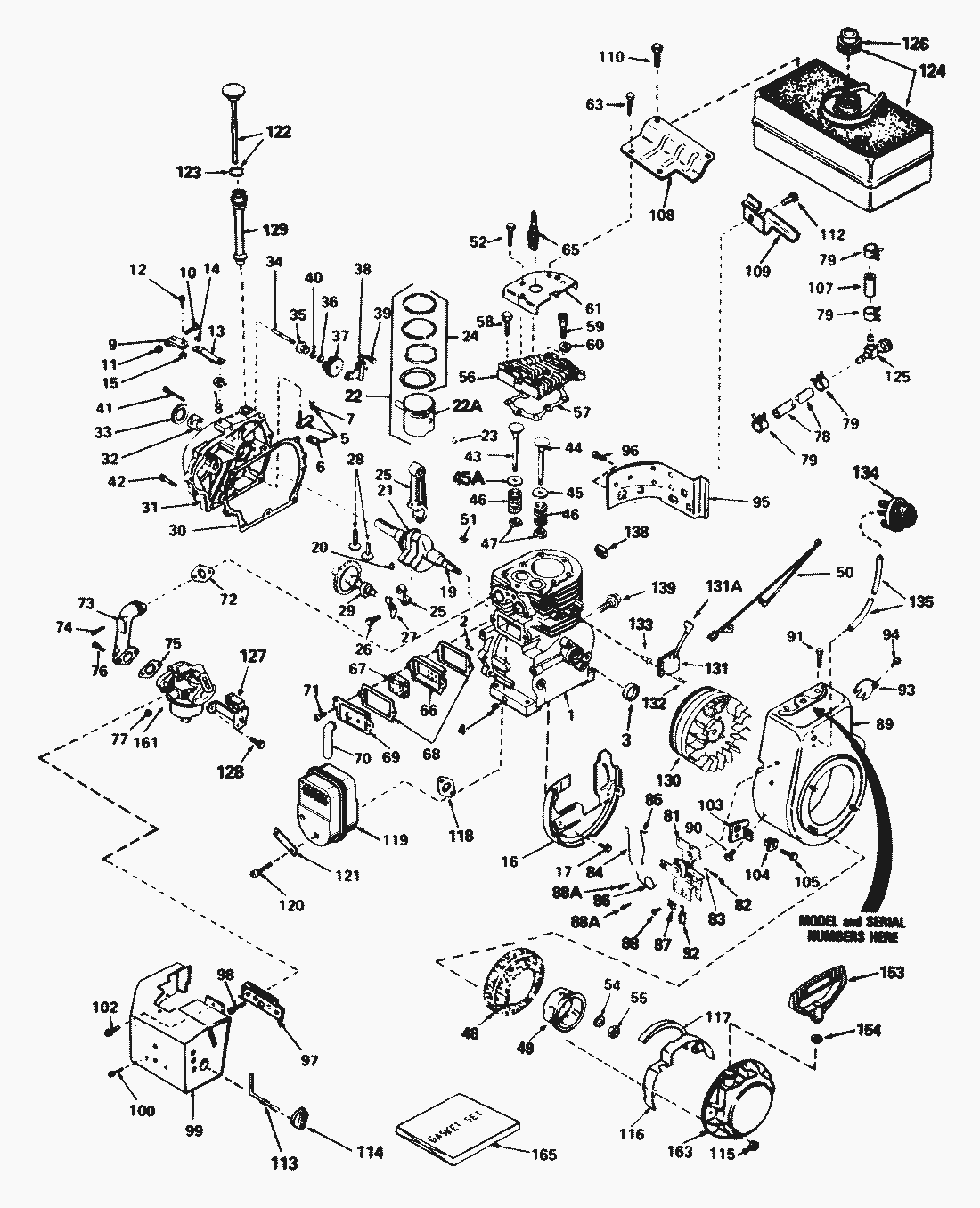

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell-Nr. HM80-155291K)




Pos.BezeichnungErsatzteilnummer
Gear Assy., Governor (Incl.30591
Piston, Pin & Ring Assy. (Incl. Ref.34553
Cylinder Assy. (Incl. Ref.34348B
Valve, Exhaust (Std.) (Incl. Ref.27878A
Piston & Pin Assy. (Incl. Ref.34330A
Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.27880A
Rod Assy., Connecting (Incl. Ref.32591C
A Piston & Pin Assy. (.020 oversize) (Incl. Ref.34331
Piston & Pin Assy. (Incl. Ref.34329A
Piston, Pin & Ring Assy. (Incl. Ref.34554
Rod Assy., Governor (Incl. Ref.30699C
Cover, Cylinder (Incl. Ref.33367B
Valve, Intake (1/32 Oversize) (Incl. Ref. #47) 43 50 2_227012 1 38080 Valve, Intake (1/32 Oversize) (Incl. Ref.34036
Valve, Intake (Std.) (Incl. Ref.34035
Crankshaft Assy. (Incl. Ref.35198
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Haltedorn27652
3Wellendichtung32630
4Oelablass-Schraube27642
6Klemme s30700
7Screw, Fil. Hd.650494
8Ring, Retaining29642
9Clamp, Governor Lever29916
10Schraube29826
11Mutter29216
12Screw, Hex Washer Hd.650548
13Hebel33454
14Lockwasher, E.T.29918
15Locknut, Hex30322
16Baffle, Blower Housing29536
17Schraube650561
20Pin, Crankshaft Gear29783
21Gear, Crankshaft33245
22Kolben Kompl+Ringe34552
23Kolbenbolzensicher.27888
24Ring Set, Piston (Std.)34332
24Ring Set, Piston (.010 Oversize)34333
24Ring Set, Piston (.020 Oversize)34334
26Bolt, Connecting Rod650662B
27Dipper, Oil34242
28Ventilstoessel34034
29Camshaft (Mech. Compression Release)34143
30Gasket, Cylinder cover*35262
32Bushing, Crankshaft33368
33Seal, Oil31950
34Reglerachse31845
35Spool, Governor30588A
36Sicherungsring29193
38Bracket, Governor Gear33369
39Screw, Hex Washer Hd. Thread Forming650836
40Washer, Flat30590A
41Screw, Hex Washer Hd.650833
42Screw, Hex Washer Hd.650832
45Federteller27882
45Seal Assy., Intake Valve34689
46Spring, Valve27881
47Ventilteller32581
48Screen, Starter35194
49Cup, Starter32125
50Wire, Ground35253
51Keil32589
52Screw, Hex Washer Spinlock Hd., Thread Forming650738
54Scheibe650815
55Nut, Flywheel650863
56Head, Cylinder34030
57Gasket, Cylinder Head*34041
58Screw, Hex Flange Hd.6021A
59Screw, Special Hex Hd. Tapped650727
60Washer, Flat650691
61Cover, Cylinder Head33272A
63Schraube650713
65Plug, Spark (Champion J-8 or equivalent) Except for Canada33636
65Resistor Spark Plug (Canadian Regulations require RJ-17LM resistor spark plug)34251
66Ventildeckeleinsatz28423
67Filter28424
68Gasket, Breather Cover*27896
69Entluefterdeckel28425
70Tube, Breather27627
71Schraube650128
72Gasket, Intake*27915
73Pipe, Intake33877
74Schraube650378
75Gasket, Carburetor*33263
