> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 824 > 612/38080 > 5000001 > Motor Tecumseh (Modell-Nr. HM 80-155284J)

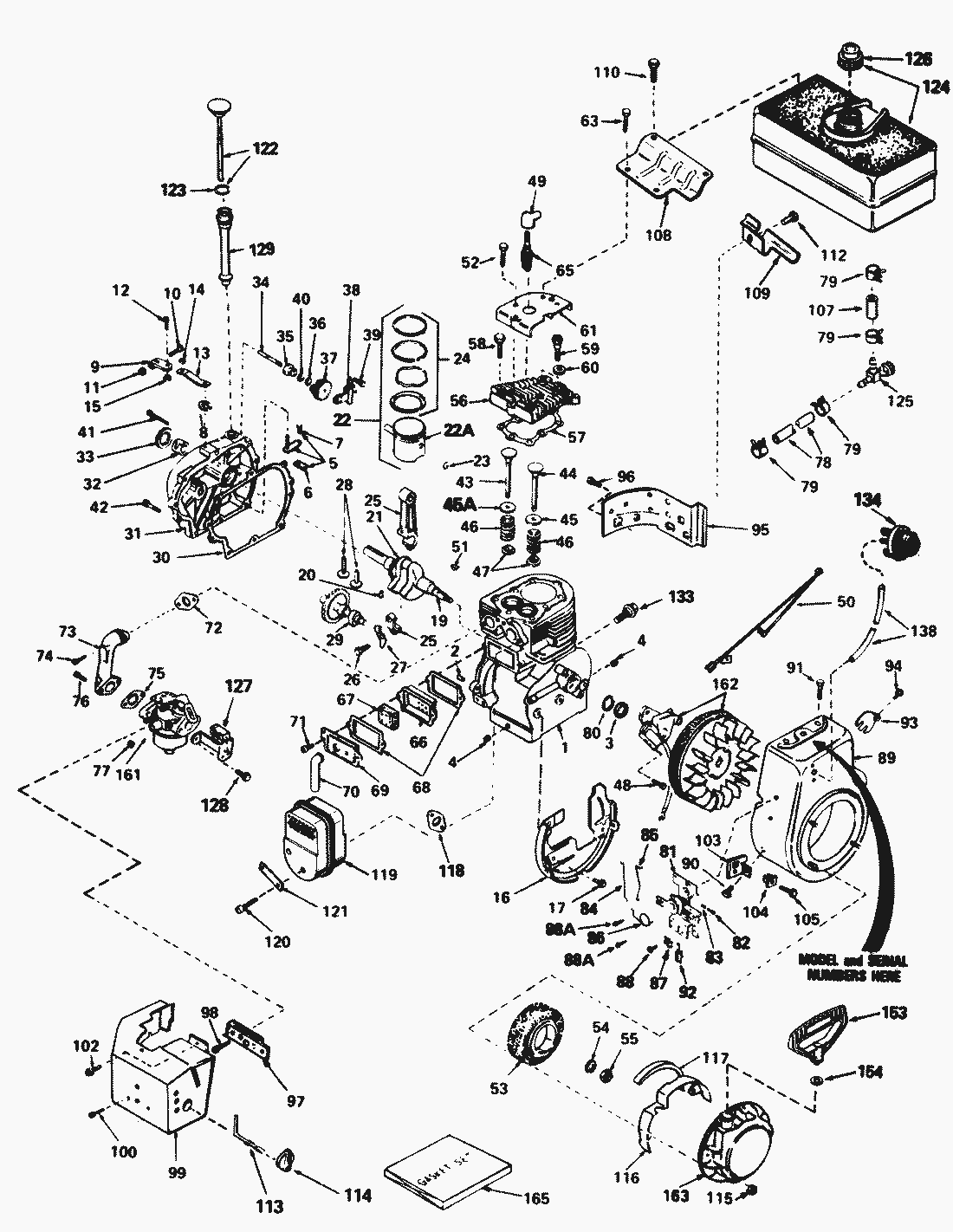

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell-Nr. HM 80-155284J)

Pos.	Bezeichnung	Ersatzteilnummer
2	Haltedorn	27652
3	Wellendichtung	32630
4	Oelablass-Schraube	27642
6	Klemme s	30700
7	Screw, Fil. Hd.	650494
8	Ring, Retaining	29642
9	Clamp, Governor Lever	29916
10	Schraube	29826
11	Mutter	29216
12	Screw, Hex Washer Hd.	650548
13	Hebel	33454
15	Locknut, Hex	30322
16	Baffle, Blower Housing	29536
17	Schraube	650561
20	Pin, Crankshaft Gear	29783
21	Gear, Crankshaft	33245
22	Kolben Kompl+Ringe	34552
23	Kolbenbolzensicher.	27888
24	Ring Set, Piston (Std.)	34332
24	Ring Set, Piston (.010 Oversize)	34333
24	Ring Set, Piston (.020 Oversize)	34334
26	Bolt, Connecting Rod	650662B
27	Dipper, Oil	34242
28	Ventilstoessel	34034
29	Camshaft (Mech. Compression Release)	34143
32	Bushing, Crankshaft	33368
33	Seal, Oil	31950
34	Reglerachse	31845
35	Spool, Governor	30588A
36	Sicherungsring	29193
38	Bracket, Governor Gear	33369
39	Screw, Hex Washer Hd. Thread Forming	650836
40	Washer, Flat	30590A
41	Screw, Hex Washer Hd.	650833
42	Screw, Hex Washer Hd.	650832
45	Federteller	27882
45	Seal Assy., Intake Valve	34689
46	Spring, Valve	27881
47	Ventilteller	32581
48	Screw, Hex Hd.	650489
49	Cover, Spark Plug	610118
50	Wire, Ground	34240
51	Keil	32589
52	Screw, Hex Washer Spinlock Hd., Thread Forming	650738
53	Hub & Screen Assy., Starter	33662
54	Scheibe	650815
55	Nut, Hex	8116
56	Head, Cylinder	34030
57	Gasket, Cylinder Head	*34041
58	Screw, Hex Flange Hd.	6021A
59	Screw, Special Hex Hd. Tapped	650727
60	Washer, Flat	650691
61	Cover, Cylinder Head	33272
63	Schraube	650713
65	Plug, Spark (Champion J-8 or equivalent) Except for Canada	33636
65	Resistor Spark Plug (Canadian Regulations require RJ-17LM resistor spark plug)	34251
66	Ventildeckeleinsatz	28423
67	Filter	28424
68	Gasket, Breather Cover	*27896
69	Entluefterdeckel	28425
70	Tube, Breather	27627
71	Schraube	650128
72	Gasket, Intake	*27915

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer
	Gear Assy., Governor (Incl.	30591
	Piston, Pin & Ring Assy. (Incl. Ref.	34553
	Crankshaft Assy. (Incl. Ref.	33365B
	Valve, Exhaust (Std.) (Incl. Ref.	27878A
	Piston & Pin Assy. (Incl. Ref.	34330A
	Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.	27880A
	Rod Assy., Connecting (Incl. Ref.	32591C
	Piston & Pin Assy. (Incl. Ref.	34331A
	Cylinder Assy. (Incl. Ref.	34348A
	Piston & Pin Assy. (Incl. Ref.	34329A
	Piston, Pin & Ring Assy. (Incl. Ref.	34554
	Rod Assy., Governor (Incl. Ref.	30699C
	Cover, Cylinder (Incl. Ref.	33367B
	Valve, Intake (1/32 Oversize) (Incl. Ref. #47) 43 50 2_227012 1 38080 Valve, Intake (1/32 Oversize) (Incl. Ref.	34036
	Lockwasher, E.T.	29918
	Valve, Intake (Std.) (Incl. Ref.	34035
	Gasket, Cylinder Cover (Incl. Ref.	*33253A
