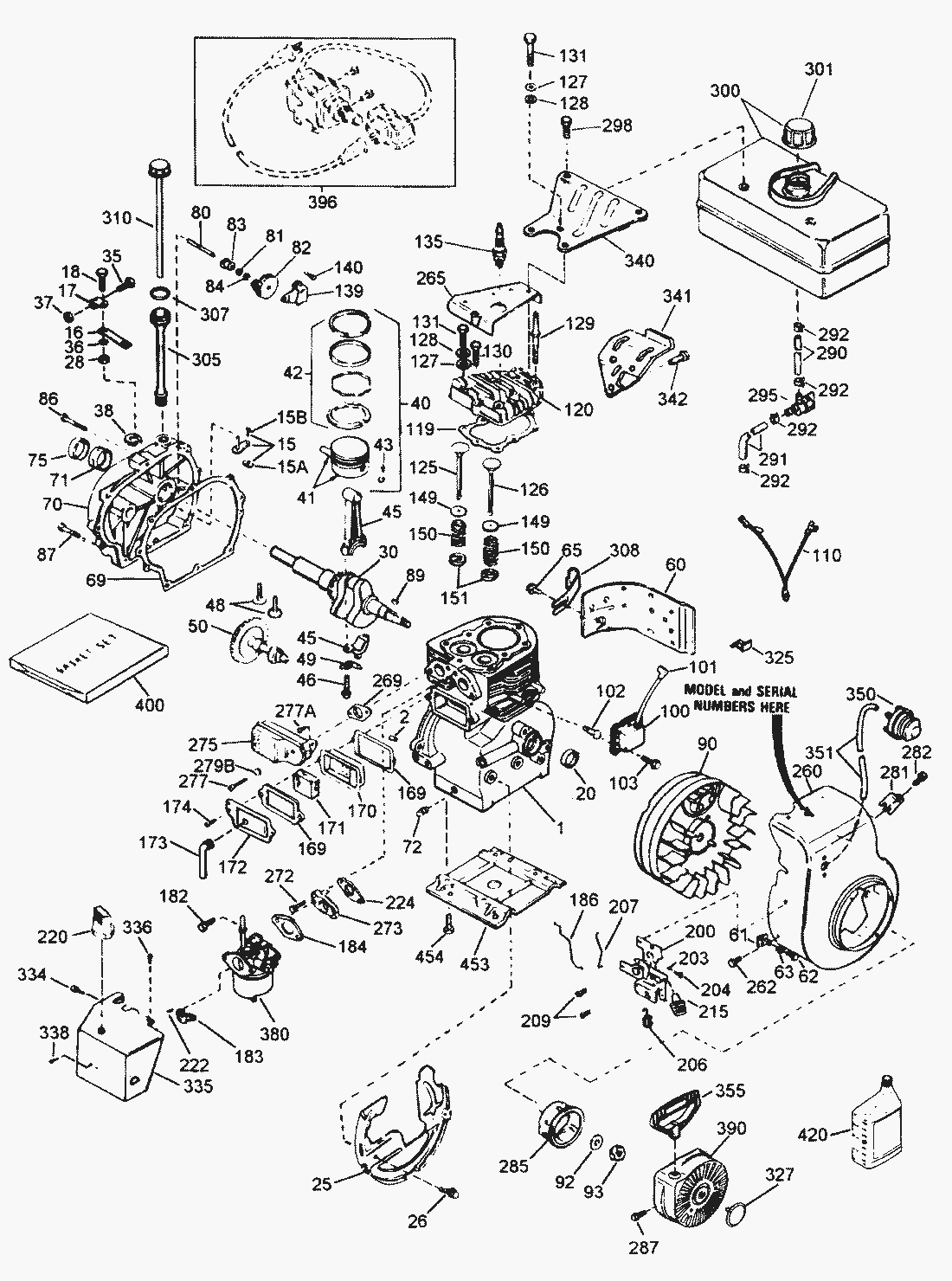

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell HSK70-130282S)




Pos.BezeichnungErsatzteilnummer
Piston & Pin Assembly .010 oversize (Incl. ref.32593B
Ring Set-Piston .020 oversize32597
Piston & Pin Assy. Standard (Incl. ref.32592B
Cylinder Assembly (Incl. ref.32586C
Piston-Pin & Ring Assy. (.020 oversize) (Incl. ref.34519
Valve, Exhaust (Std.) (Incl. Ref.27878A
Ring Set-Piston .010 oversize32596
Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.27880A
Rod Assy., Connecting (Incl. Ref.32591C
Tank-Fuel (Incl. Ref.34186A
Rod Assy., Governor (Incl. Ref.30699C
Piston & Pin Assembly .020 oversize (Incl. ref.32594B
Cover-Cylinder (incl. ref.31303C
Carburetor (Incl.ref.632371A
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Haltedorn27652
15Klemme s30700
15Screw, Fil. Hd.650494
16Hebel33454
17Clamp, Governor Lever29916
18Screw, Hex Washer Hd.650548
20Wellendichtung32630
25Baffle, Blower Housing35326
26Schraube650561
28Locknut, Hex30322
30Crankshaft Assembly35272
35Schraube29826
36Lockwasher, E.T.29918
37Mutter29216
38Ring, Retaining29642
40Kolbenringe 0.2034518
40Kolbenringe 0.1034517
42Kolbenringsatz32595
43Kolbenbolzensicher.27888
46Screw-Connecting Rod650662C
48Ventilstoessel34034
49Dipper, Oil34242
50Camshaft32115
60Extension-Blower Housing30622A
61Bracket, Grommet Mounting34126
62Schraube650760
63Grommet, Plastic28545
65Schraube650128
69Oelwannendichtung30684
71Buechse31546
72Oelablass-Schraube27642
75Seal-Oil28427
80Reglerachse31845
81Washer, Flat30590A
82Gear Assy., Governor (Incl.30591
83Spool, Governor30588A
84Sicherungsring29193
86Screw, Hex Hd.650488
87Schraube650493
89Keil32589
90Flywheel611085
92Scheibe650815
93Nut-Flywheel650871
100Lamination & Coil Assy., Solid State (Incl.34443A
101Cover, Spark Plug610118
102Stehbolzen650872
103Schraube650814
110Wire, Ground35253
119Zylinderkopfdichtung36453
120Zylinderkopf36446
126Einlassventil32784
126Einlassventil32783
127Washer, Flat650691
128Washer-Belleville650690
129&rew-Hex. Flange Hd.650697A
130&rew-Hex. Flange Hd.650697A
131&rew-Hex. Flange Hd.650697A
135Spark Plug, Resistor (Champion RJ-19LM)35395
139Bracket-Governor Gear31843A
140Screw, Torx T-25650965
149Federteller27882
150Spring, Valve27881
151Ventilteller32581
169Gasket-Breather27896A
170Ventildeckeleinsatz28423
171Filter28424
172Entluefterdeckel28425
173Entlueftungsschlauch35350
174Schraube650128
182Screw-Hex. Hd.650517
183Halteblech32398
184Gasket-Carburetor31688A
186Reglergestaenge34661
200Reglerplatte34677
203Druckfeder31342
204Screw, Fil. Hd.650549
206Kurzschlusschalter610973
207Hebel34662
209Screw, Hex Washer Hd. Thread Cutting650821
215Knopf35440
220Knopf35439
222Schraube28820
224Gasket-Intake Pipe27915A
260Lueftergehaeuse s36254
262Screw, Phil. Hex Hd.29747B
265Cover-Cylinder Head30939A
269Dichtung35865
272Screw-Fil. Hd.30196
273Flange-Carburetor (Incl. Ref.34712
275Auspuff32401
277Screw, Hex Flange Hd.650694A
277Screw-Fil. Hd.30196
279Washer-Flat26073
281Cover, Starter Bubble33013
282Schraube650760
285Cup, Starter32125
287Schraube650926
290Leitung29774
291Line-Fuel30962
292Klemme F.Benzinl.26460
295Anschluss35857
298Schraube s650665
299Nut-U Type650764
301Tankverschluss35355
305Oelrohr35554
307O.Ring35499
308Clip, Fill Tube35540
310Oelmessstab35555
325Klemme29443
327Deckel s35392
334Schraube650257
335Cover-Carburetor35060
336Schraube650765
338Schraube650760
340Bracket-Fuel Tank34159
341Bracket-Fuel Tank34158
342Schraube650561
350Primer Assy.570682
351Line-Primer32180C
355Startergriff590574
390Starter-Rewind590646
396Electric Starter Motor (Optional)33329D
400Gasket Set33239A
420Sae 30 4-Cycle Engine Oil (Quart)730225
453Engine Mounting Base29058
454Screw-Hex. Hd.650542
