> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 724 > 637/38073 > 3900001 > Motor Tecumseh (Modell HSK70-130282R)

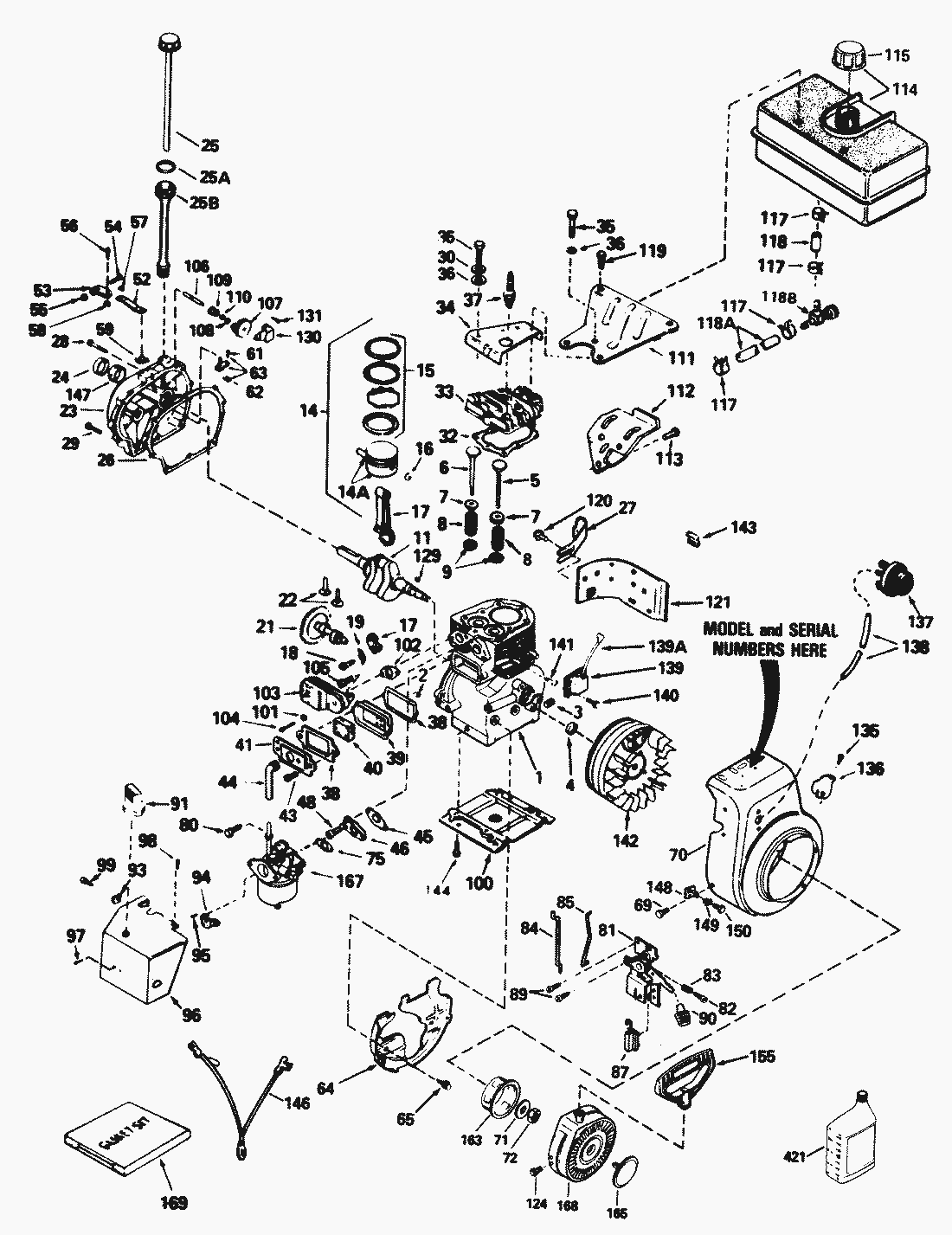

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell HSK70-130282R)




Pos.BezeichnungErsatzteilnummer
Piston & Pin Assembly .010 oversize (Incl. ref.32593B
Piston & Pin Assy. Standard (Incl. ref.32592B
Cylinder Assembly (Incl. ref.32586C
Piston-Pin & Ring Assy. (.020 oversize) (Incl. ref.34519
Valve, Exhaust (Std.) (Incl. Ref.27878A
Head-Cylinder (Incl. 3 Ref.30938A
Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.27880A
Rod Assy., Connecting (Incl. Ref.32591C
Flange-Carburetor (Incl. Ref.34712
Rod Assy., Governor (Incl. Ref.30699C
Piston & Pin Assembly .020 oversize (Incl. ref.32594B
Cover-Cylinder (incl. ref.31303C
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
2Haltedorn27652
3Oelablass-Schraube27642
4Wellendichtung32630
5Einlassventil32783
Einlassventil32784
7Federteller27882
8Spring, Valve27881
9Ventilteller32581
11Crankshaft Assembly35272
14Kolbenringe 0.1034517
Kolbenringe 0.2034518
15Kolbenringsatz32595
Ring Set-Piston .010 oversize32596
Ring Set-Piston .020 oversize32597
16Kolbenbolzensicher.27888
18Screw-Connecting Rod650662C
19Dipper, Oil34242
21Camshaft32115
22Ventilstoessel34034
24Seal-Oil28427
25Oelmessstab35555
25O.Ring35499
25Oelrohr35554
26Gasket-Cylinder Cover*30684
27Clip, Fill Tube35540
28Screw, Hex Hd.650488
29Schraube650493
30Washer-Belleville650690
32Gasket-Cylinder Head*32631A
34Cover-Cylinder Head30939A
35&rew-Hex. Flange Hd.650697A
36Washer, Flat650691
37Spark Plug, Resistor (Champion RJ-19LM)35395
38Gasket, Valve Spring Cover*27896A
39Ventildeckeleinsatz28423
40Filter28424
41Entluefterdeckel28425
43Schraube650128
44Entlueftungsschlauch35350
45Gasket-Intake*27915A
48Screw-Fil. Hd.30196
52Hebel33454
53Clamp, Governor Lever29916
54Schraube29826
55Mutter29216
56Screw, Hex Washer Hd.650548
57Lockwasher, E.T.29918
58Locknut, Hex30322
59Ring, Retaining29642
61Screw, Fil. Hd.650494
62Klemme s30700
64Baffle, Blower Housing35326
65Schraube650561
69Screw, Phil. Hex Hd.29747B
70Lueftergehaeuse s36254
71Scheibe650815
72Nut-Flywheel650871
75Gasket-Carburetor*31688A
80Screw-Hex. Hd.650517
81Reglerplatte34677
82Screw, Fil. Hd.650549
83Druckfeder31342
84Reglergestaenge34661
85Hebel34662
87Kurzschlusschalter610973
89Screw, Hex Washer Hd. Thread Cutting650821
90Knopf35440
91Knopf35439
93Nut-U Type650764
94Halteblech32398
95Schraube28820
96Cover-Carburetor35060
97Schraube650257
98Schraube650765
99Schraube650760
100Motor-Unterlage29538
101Washer-Flat26073
102
103Auspuff32401
104Screw, Hex Flange Hd.650694A
