Ersatzteillisten für Toro Roth / TORO Motor (B&S Modell 97772-0112-01)

Gebrauchsanweisungen

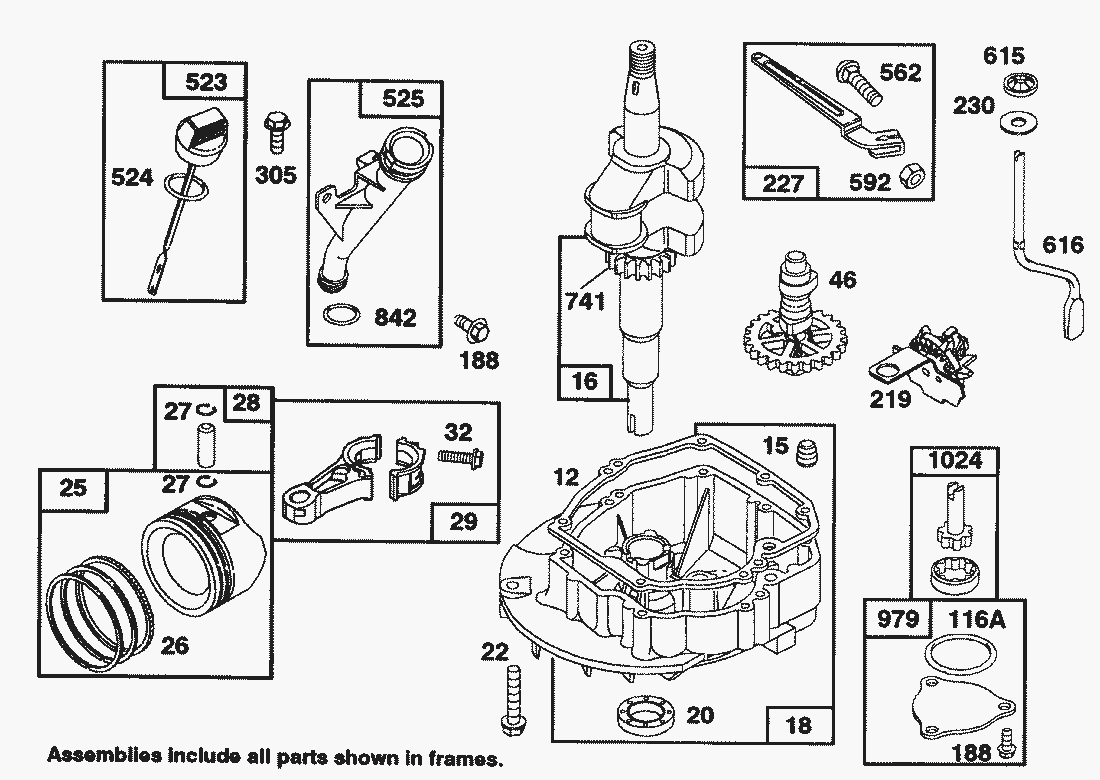

Pos.	Bezeichnung	Ersatzteilnummer
12	Gasket-Engine Base	272324
15	Plug-OII Drain	94613
16	Crankshaft Note: Order Part No. 94388 For Timing Gear Key	493726
18	Base-Engine	493901
20	Seal-Oil	399781
22	Screw-Sump Mtg. Sem	94220
25	Piston Assy (Std)	493781
26	Ring Set (Std)	493782
27	Lock-Piston Pin	262514
28	Pin Assy-Piston	492765
29	Rod-Connecting	493049
32	Screw-Connecting Rod	94572
46	Gear-Cam	493310
116	O-Ring	280891
188	Screw-Hex Head Sem	94513
219	Gear-Governor	493719
227	Lever Assembly-Governor	492349
230	Washer-Governor Crank	67072
305	Schraube	94582
523	Dipstick-Oil	493601
524	Seal-Filler Tube	280393
525	Tube-Oil Filler	494194
562	Bolzen	92613
592	Mutter	231082
615	Pushnut (Governor Crank)	94474
616	Crank-Governor	262578
741	Zahnrad	262598
842	O.RING17X2,5 B&S	280966
979	Cover-Oil Pump	492756
1024	Oelpumpe	493884

Pos.	Bezeichnung	Ersatzteilnummer
95	Schraube	94098
98	Schraube	398185
104	Pin-Float Hinge	231371
108	Valve-Choke	224449
116	Dichtring	271716
118	Duese	493765
124	Screw-Hex Head (carb mtg)	94584
125	Carburetor Assy	493887
127	Plug-Welch	223949
130	Drosselklappen	223470
131	Welle	493267
133	SCHWIMMER	398187
134	Nadelventil	398188
136	Bowl-Fuel	224458
137	Gasket-Float Bowl	280492
141	Shaft-Choke	493899
147	Adapter-Jet Note: For High Altitude Jet, Order Part No. 494236.	493883
634	Washer-Seal	280566
955	Screw-Hex Head	493924
975	Bowl Assy-Carburetor	493902
1011	Tube-Vent	280786
1039	Limiter-Float	281086

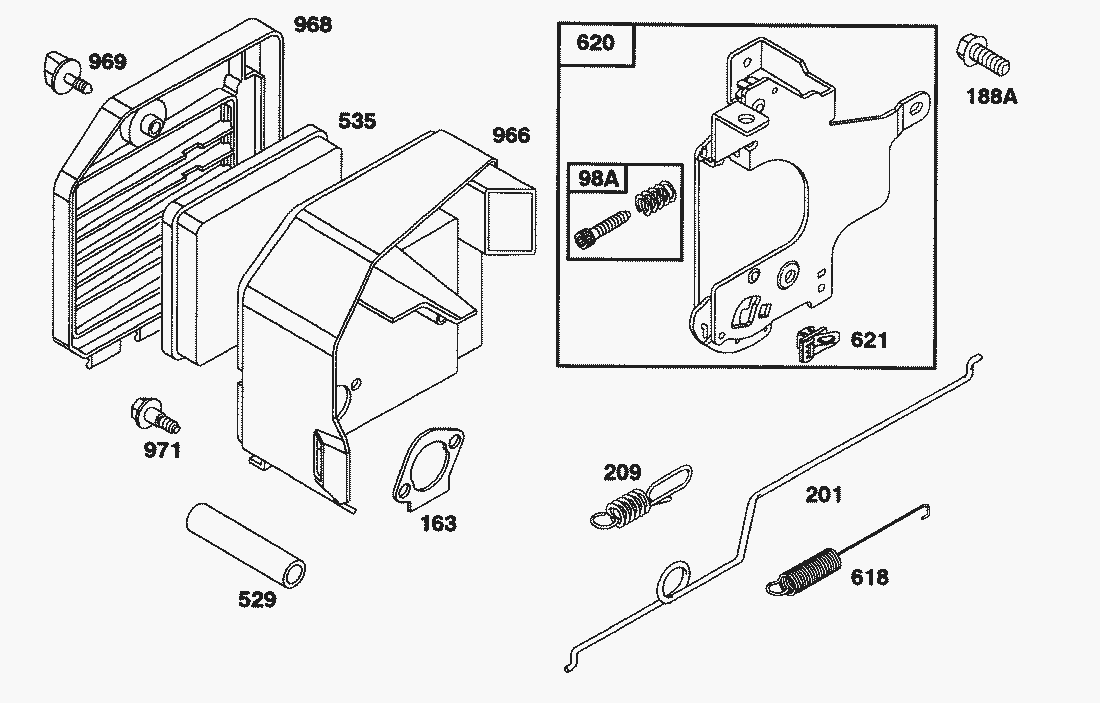

Pos.	Bezeichnung	Ersatzteilnummer
98	Screw Assy.-Speed Adj.	493280
163	Gasket-Air Cleaner	272325
188	Screw-Hex. Head	94644
201	Link-Governor	262709
209	Spring-Governor	262735
529	Tube-Breather	494306
535	Element-Filter Note: 494245 Element-Paper (Optional)	272310
618	Spring-Choke	262717
620	Bracket-Carburetor	493539
621	Switch-Stop	396847
966	Base Air Cleaner	493408
968	Cover-Air Cover	281006
969	Screw-Air Cleaner	493307
971	Screw-Air Cleaner	94577
