Ersatzteillisten für Toro Roth / TORO Motor (B&S Modell 28Q777-0168-01)

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer

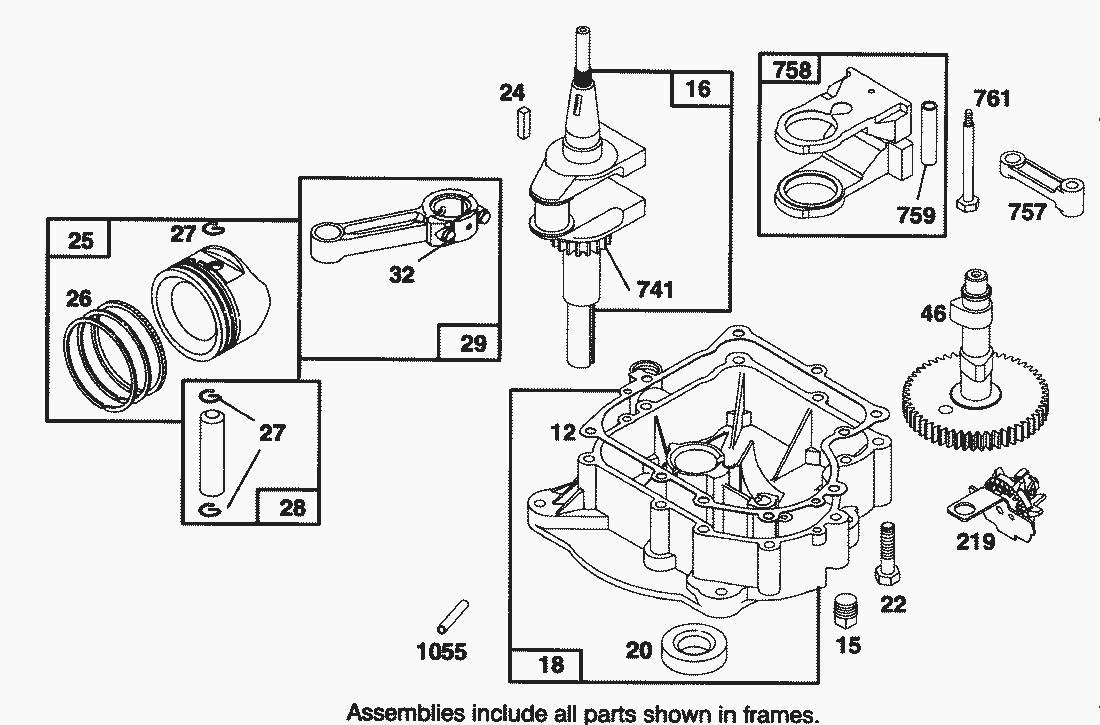

	Screw-Conn. Rod (1 5/8 Long) 78 7_627020 1 71216 Screw-Conn. Rod (1 5/8 Long)	94648
	Ring Set (.010 O.S.) 69 7_627020 1 71216 Ring Set (.010 O.S.)	495852
	Piston Assy. (.010 O.S.) 65 7_627020 1 71216 Piston Assy. (.010 O.S.)	495977
	Piston Assy. (.030 O.S.) 67 7_627020 1 71216 Piston Assy. (.030 O.S.)	495979
	Screw-Conn. Rod (1 57/64 Long) 32 77 7_627020 1 71216 Screw-Conn. Rod (1 57/64 Long)	94695
	Gasket-Crkcse Cover, 1/64 Thick 12 10 _8790030 1 S2-12B502 Gasket-Crkcse Cover, 1/64 Thick	271916
	Ring Set (.020 O.S.) 70 7_627020 1 71216 Ring Set (.020 O.S.)	495851
	Rind Set (.030 O.S.) 71 7_627020 1 71216 Rind Set (.030 O.S.)	495855
	Pin Assembly-Piston-.005 O.S. 29 1_366010 1 38160 Pin Assembly-Piston-.005 O.S.	391286
	Piston Assy. (.020 O.S.) 66 7_627020 1 71216 Piston Assy. (.020 O.S.)	495978

Pos.	Bezeichnung	Ersatzteilnummer

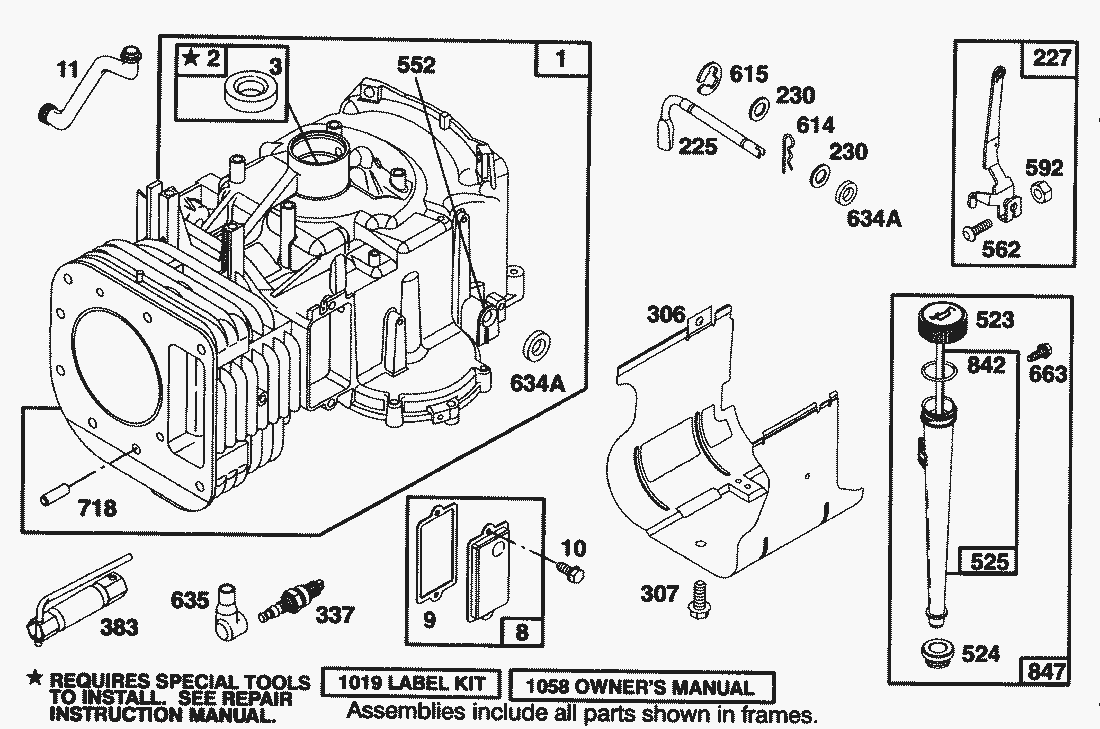

1	Cylinder Assembly	496412
2	Sieb	399265
3	Seal-Oil	391086
8	Entluefter	495735
9	Dichtung t	27803
10	Schraube	94621
11	Tube-Breather	281246
225	Crank-Governor	231058
227	Reglerhebel	493935
230	Scheibe	94742
306	Shield-Cylinder	225020
307	Screw-Cylinder Shield Mtg. Sem	94623
332	Nut-Hex.	94314
337	Plug-Spark	491055
383	Wrench-Spark Plug	89838
523	Cap and Dipstick Oil Filler	495230
524	Seal-Fill Tube	66838
525	Rohr F. Oelmeástab	496113
552	Bushing-Gov. Crank	231597
562	Bolzen	92613
592	Mutter	231082
614	Splint	93306
615	Halter	93307
634	Dichtring	491323
635	Elbow-Spark Plug	280872
663	Screw-Sem	94073
718	Pin-Cylinder	230192
842	Seal-Oil Filler Cap	270920
847	Oeleinfuellrohr	496415
1019	Label Kit	496758
1058	Owner s Manual	272904

Pos.	Bezeichnung	Ersatzteilnummer

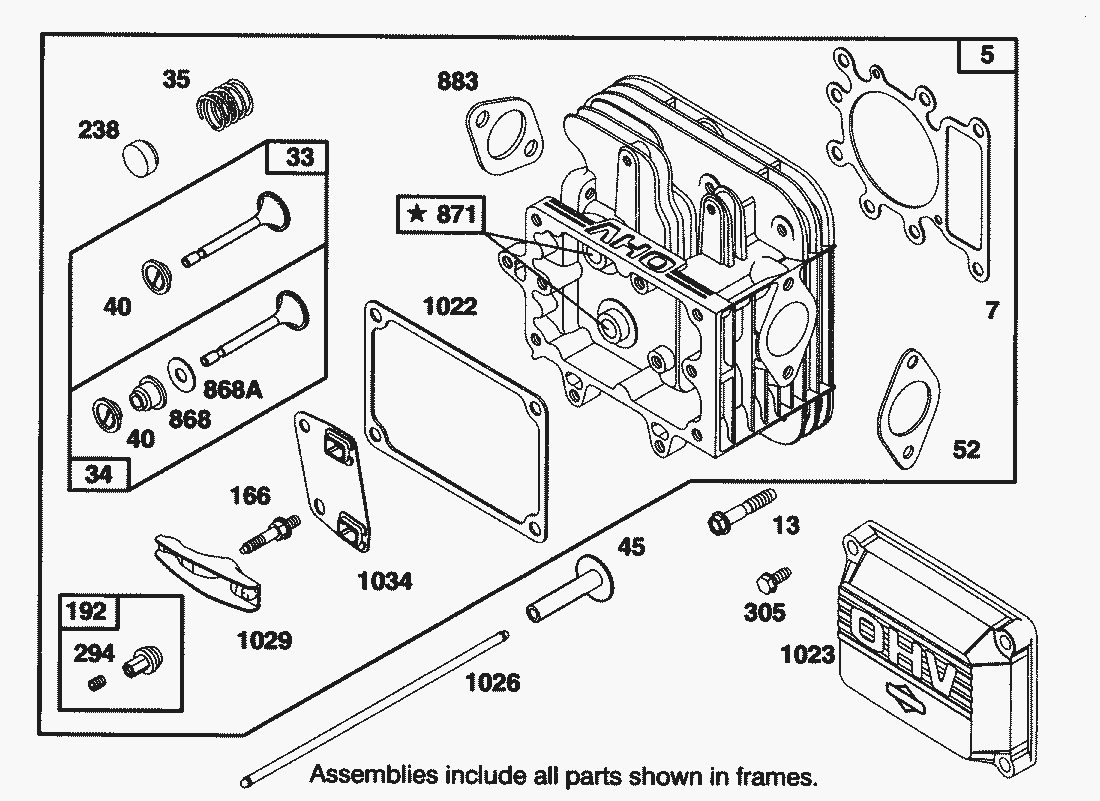

5	Head-Cylinder	495858
7	Gasket-Cylinder Head	272614
13	Screw-Cylinder Head	94728
33	Auslass-Ventil	495856
34	Valve-lntake	495857
35	Spring-Valve	262811
40	Retainer-Valve	224641
45	Tappet-Valve	262411
52	Gasket-Carb. Mounting	272569
166	Stud-Rocker Arm	94555
192	Ball & Screw-Rocker Arm	492160
238	Cap-Valve	262836
294	Screw-Set	810068
305	Schraube	94682
868	Ventildichtung	494435
868	Ventildichtung	272610
871	Bushing-Guide (Intake and Exhaust)	262835
883	Auspuffdichtung (10)	272293
1022	Gasket-Rocker Cover	272475
1023	Cover-Rocker	214314
1026	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
1029	Arm-Rocker	224554
1034	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
