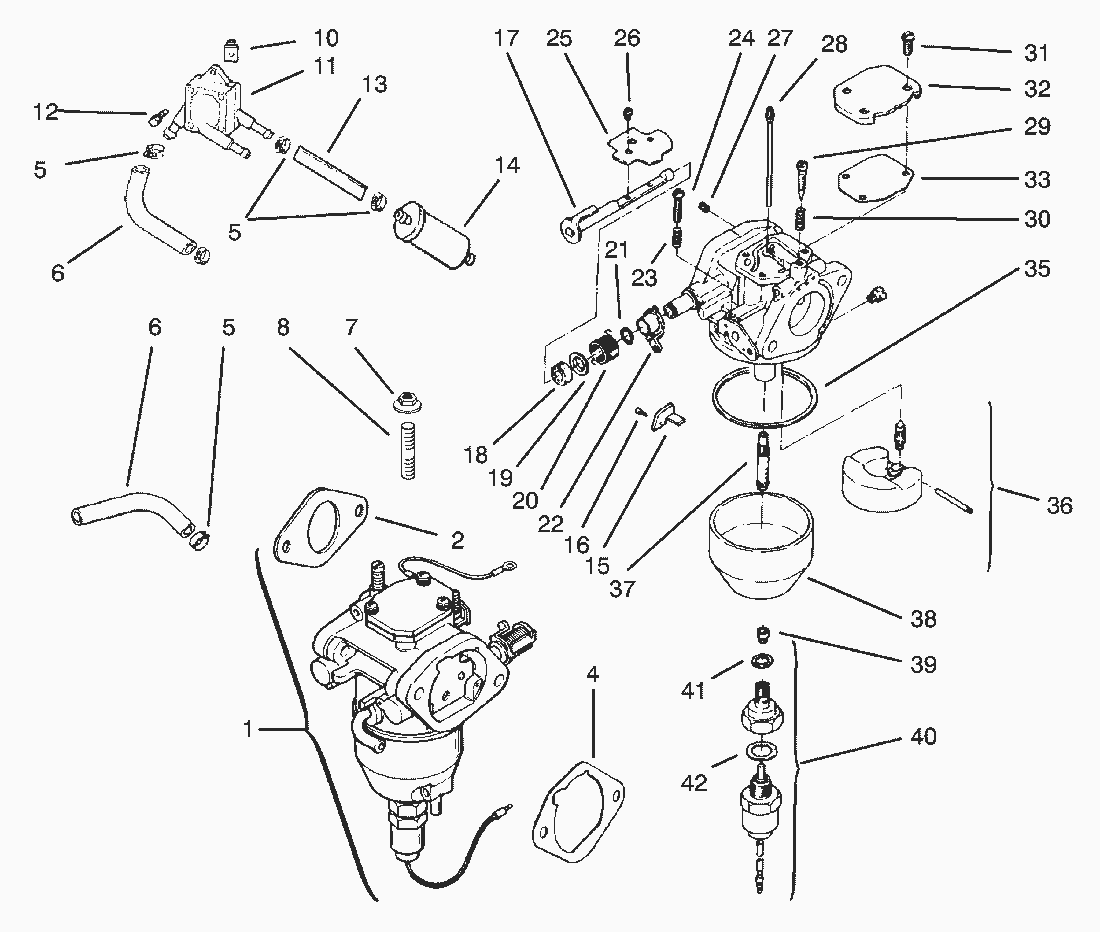

| Pos. | Bezeichnung | Ersatzteilnummer | |
| 1 | Vergaser | 24 853 19 |
| 2 | Dichtung | 24 041 15 |
| 4 | Dichtung | 24 041 14 |
| 5 | Clamp-Hose | X-426-9 |
| 6 | Benzinschlauch | 24 353 03 |
| 7 | Nut M6 x 1.0 | Sm-0641060 |
| 8 | Stud M6x1.0x95 (Only On: 72103, 72083) | M-0629095 |
| 9 | Benzinschlauch | 52 353 22 |
| 10 | Mutter | 24 100 01 |
| 11 | Pump-Fuel (Only On: 72103, 72083) | 24 393 04 |
| 12 | Schraube | 24 086 12 |
| 13 | Benzinschlauch | 25 353 15 |
| 14 | Filter-Fuel (Only On: 72103,72083) | 25 050 02 |
| 15 | Bracket-Throttle Stop (Only On: 72103, 72083) | 24 126 29 |
| 16 | Screw M2.5x45x5.5 (Only On: 72103, 72083) | M-0259006 |
| 17 | Chokewelle | 24 144 15 |
| 18 | Washer (Only On: 72103, 72083) | 24 468 05 |
| 19 | Collar-Choke (Only On: 72103, 72083) | 24 241 01 |
| 20 | Feder | 24 089 22 |
| 21 | Ring-Choke Lever (Only On: 72103, 72083) | 24 141 04 |
| 22 | Lever-Choke (Only On: 72103, 72083) | 24 090 10 |
| 23 | Spring-Throttle Screw (Only On: 72103, 72083) | 24 089 24 |
| 24 | Screw-Throttle Adjust (Only On: 72103, 72083) | 24 086 19 |
| 25 | Chokeklappe | 24 462 02 |
| 26 | Screw-Throttle Shaft (Only On: 72103, 72083) | 24 086 20 |
| 27 | Duese | 24 337 27 |
| 28 | Duese | 24 337 11 |
| 29 | Screw-Idle Adjust (Only On: 72103, 72083) | 24 086 22 |
| 30 | Feder | 24 089 23 |
| 31 | Screw (Only On: 72103, 72083) | 24 086 21 |
| 32 | Cover-Passage (Only On: 72103, 72083) | 24 096 13 |
| 33 | Gasket-Passage Cover (Only On: 72103, 72083) | 24 041 18 |
| 35 | Dichtung | 24 041 19 |
| 36 | Schwimmer | 24 757 05 |
| 37 | Duese | 24 369 01 |
| 38 | Schwimmerkopf | 24 234 01 |
| 39 | Duese | 24 337 20 |
| 40 | Kit-Solenoid INC 41-42 (Only On: 72103, 72083) | 24 755 15 |
| 41 | Dichtung | 24 041 21 |
| 42 | Dichtung | 24 041 20 |
| Dichtung | 24 041 15 |
| Baffle-Carburetor (Only On: 72103, 72083) | 24 063 22 |
| Rep.-Satz | 24 755 25 |
| Rep.-Satz | 24 755 26 |
| Rep.-Satz | 24 757 06 |
