> Roth / TORO > Aufsitzmäher > Traktor > 264-6 > 501/72062 > 6900001 > Getriebeachse Peerless 820-024

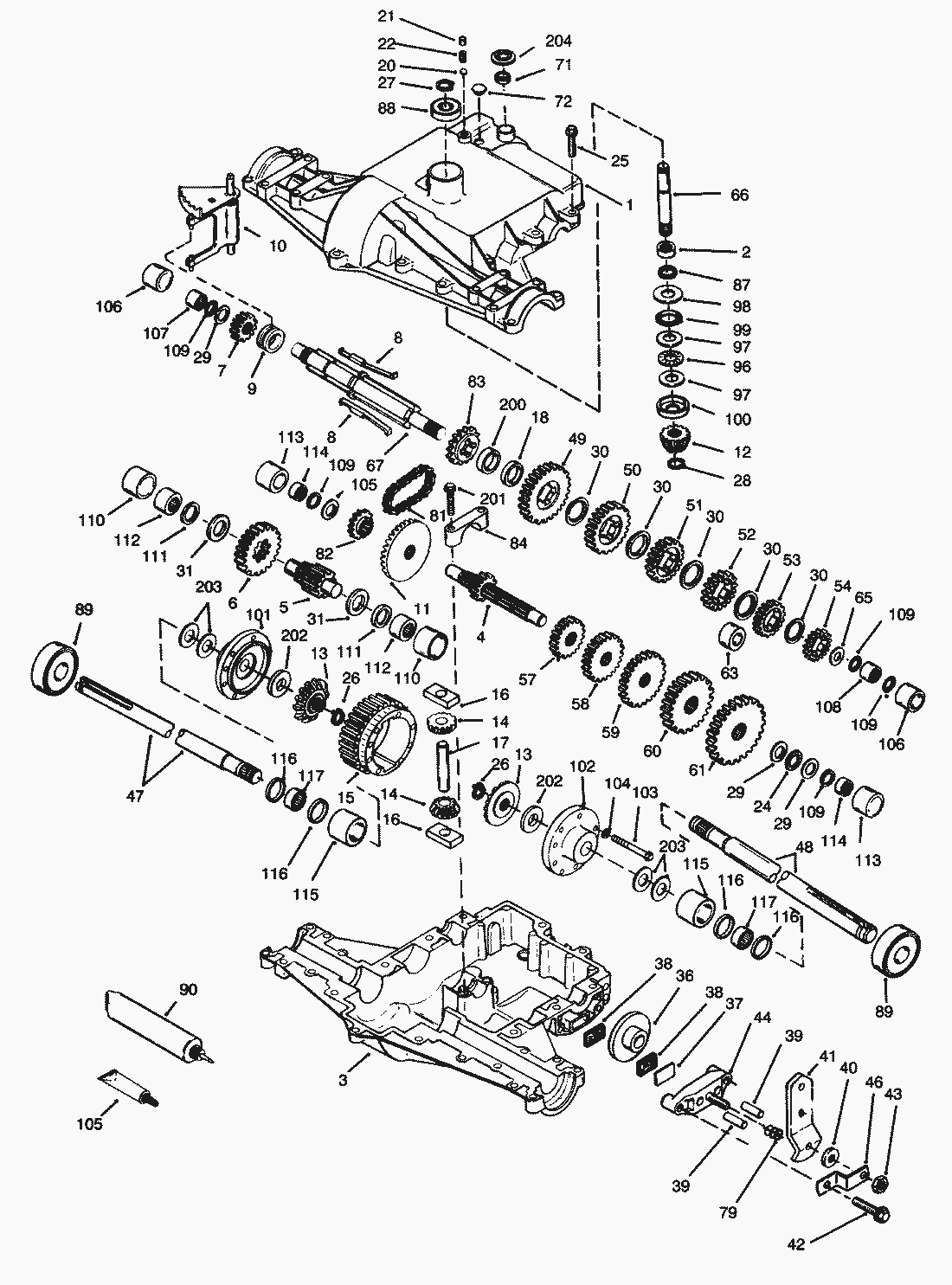

Ersatzteillisten für Toro Roth / TORO Getriebeachse Peerless 820-024

Pos.	Bezeichnung	Ersatzteilnummer
	Shaft-Input 30.910 Lg (Only On: 72042, 72062) 66 54 6_737064 1 72062 Shaft-Input 30.910 Lg (Only On: 72042, 72062)	776293
	Axle 16 7/16 Long (Only On: 72042, 72062) 48 41 6_737064 1 72062 Axle 16 7/16 Long (Only On: 72042, 72062)	774959
	Chain-Roller	786062a
	Axle 12 9/16 Long (Only On: 72042, 72062) 47 40 6_737064 1 72062 Axle 12 9/16 Long (Only On: 72042, 72062)	774958

Pos.	Bezeichnung	Ersatzteilnummer
1	Cover-Transaxle (Only On: 72042,72062)	772098a
2	Bearing-Needle (Only On: 72042, 72062)	780155
3	Case-Transaxle (Only On: 72042, 72062)	770088
4	Countershaft-Gear 9t (Only On: 72042, 72062)	776291
5	Shaft-Output (Only On: 72042, 72062)	776275
6	Gear-Output 35t (Only On: 72042, 72062)	778247
7	Gear-Spur 15t (Only On: 72042, 72062)	778253
8	Key-Shift (Only On: 72042, 72062)	792138
9	Collar-Shift (Only On: 72042, 72062)	784216
10	Fork-Shift (Only On: 72042, 72062)	784342
11	Gear-Bevel 33t (Only On: 72042, 72062)	778246
12	Pinion-Input Bevel 13t (Only On: 72042, 72062)	778245
13	Zahnrad	778198
14	Zahnrad	778197
15	Gear-Ring (Only On: 72042, 72062)	778248
16	Getriebeblock	786027
17	Stift	786019
18	Spacer .350-.340 Thick (Only On: 72042, 72062)	786121
20	Kugel	792077
21	Schraube	792078
22	Feder	792079
24	Bearing-Thrust (Only On: 72042, 72062)	780071
25	Screw 5/16-18x1 1/4 (Only On: 72042, 72062)	792129
26	Ring	792018
27	Ring	792018
28	Sicherungsring	788040
29	Scheibe	780072
30	Scheibe	780108
31	Washer (Only On: 72042, 72062)	780128
36	Bremsscheibe	790043
37	Platte	790007
38	Bremsbelag Paar	799021
39	Stift	786026
40	Washer (Only On: 72042,72062)	792076a
41	Bremshebel	790013
42	Schraube	792073
43	Mutter	792075
44	Halter	790025
46	Halter	786086
49	Gear-Spur 41t (Only On: 72042,72062)	778216a
50	Gear-Spur 35t (Only On: 72042,72062)	778206a
51	Gear-Spur 30t (Only On: 72042,72062)	778205a
52	Gear Spur 25t (Only On: 72042,72062)	778204a
53	Gear Spur 22t (Only On: 72042,72062)	778203a
54	Zahnrad	778273
57	Gear Spur 15t (Only On: 72042, 72062)	778199
58	Gear Spur 20t (Only On: 72042, 72062)	778200
59	Gear Spur 25t (Only On: 72042, 72062)	778201
60	Gear Spur 28t (Only On: 72042, 72062)	778202
61	Gear Spur 30t (Only On: 72042, 72062)	778222
65	Scheibe	780109
67	Shaft-Shifter/Brake (Only On: 72042, 72062)	776313
71	Dichtring	788069
72	Plug, Threaded	792074
79	Feder	792144
82	Kettenrad	786061
83	Kettenrad	786124
84	Lagerschale	786131
87	Simmerring	788042
88	Kugellager	780119
89	Kugellager	780050
90	Grease 32 Oz Bentonite (Only On: 72042,72062)	788067b
96	Bearing-Thrust (Only On: 72042, 72062)	780084
97	Scheibe	780051
98	Scheibe	780165
99	O-Ring (Only On: 72042, 72062)	788077
100	Washer-Cupped (Only On: 72042, 72062)	780166
101	Carrier-Differential (Only On: 72042, 72062)	774833
102	Carrier-Differential (Only On: 72042, 72062)	774834
103	Screw 14-20x2 1/4 (Only On: 72042, 72062)	792020
104	Federring	792006
105	Washer (Only On: 72042, 72062)	780153
106	Sleeve (Only On: 72042, 72062)	786144
107	Bearing-Needle (Only On: 72042, 72062)	780152
108	Bearing-Needle (Only On: 72042, 72062)	780150
109	Ring	792001
110	Buchse	786142
111	Wellendichtung	788071
112	Bearing-Needle (Only On: 72042, 72062)	780168
113	Sleeve (Only On: 72042, 72062)	786143
114	Bearing-Needle (Only On: 72042, 72062)	780151
115	Sleeve (Only On: 72042, 72062)	786145
116	Ring-Square Cut (Only On: 72042, 72062)	788070
117	Lager	780031
150	Dichtmasse	510334
200	Spacer .276-.268 Thick (Only On: 72042, 72062)	786122
201	Schraube	792073
202	Scheibe	780107
203	Scheibe	780042
204	Mutter	792145
